485
Keysight Handheld Analyzers
N99xxA User’s Guide
23 VVM (Vector Voltmeter) Mode - Option 308
VVM Mode (Option 308) measures the electrical length of cables and other
devices. The 1-Port Cable Trimming and 2-Port Transmission measurement
displays the electrical length in both Magnitude and Phase.

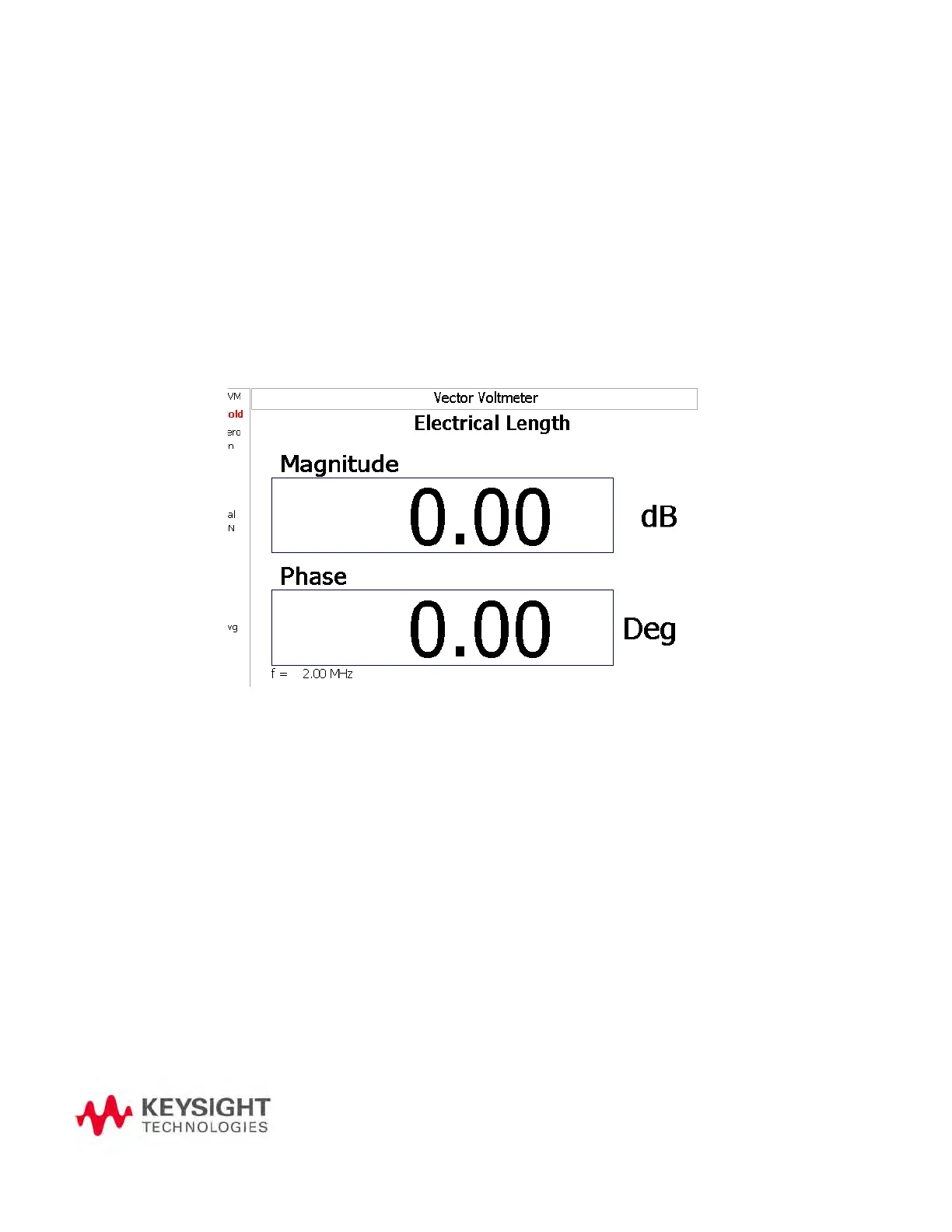

Figure 23-1 Display for the 1-Port Cable Trimming measurement
In this Chapter
“Overview” on page 487
“Measurement Selection” on page 488
“Frequency Selection” on page 488
“Display Resolution” on page 488
“IF Bandwidth” on page 489
“Output Power” on page 489
“Averaging” on page 490
“Single or Continuous Measure” on page 491
“VVM Calibration” on page 491
“Zeroing” on page 491
