System Settings
System Configuration

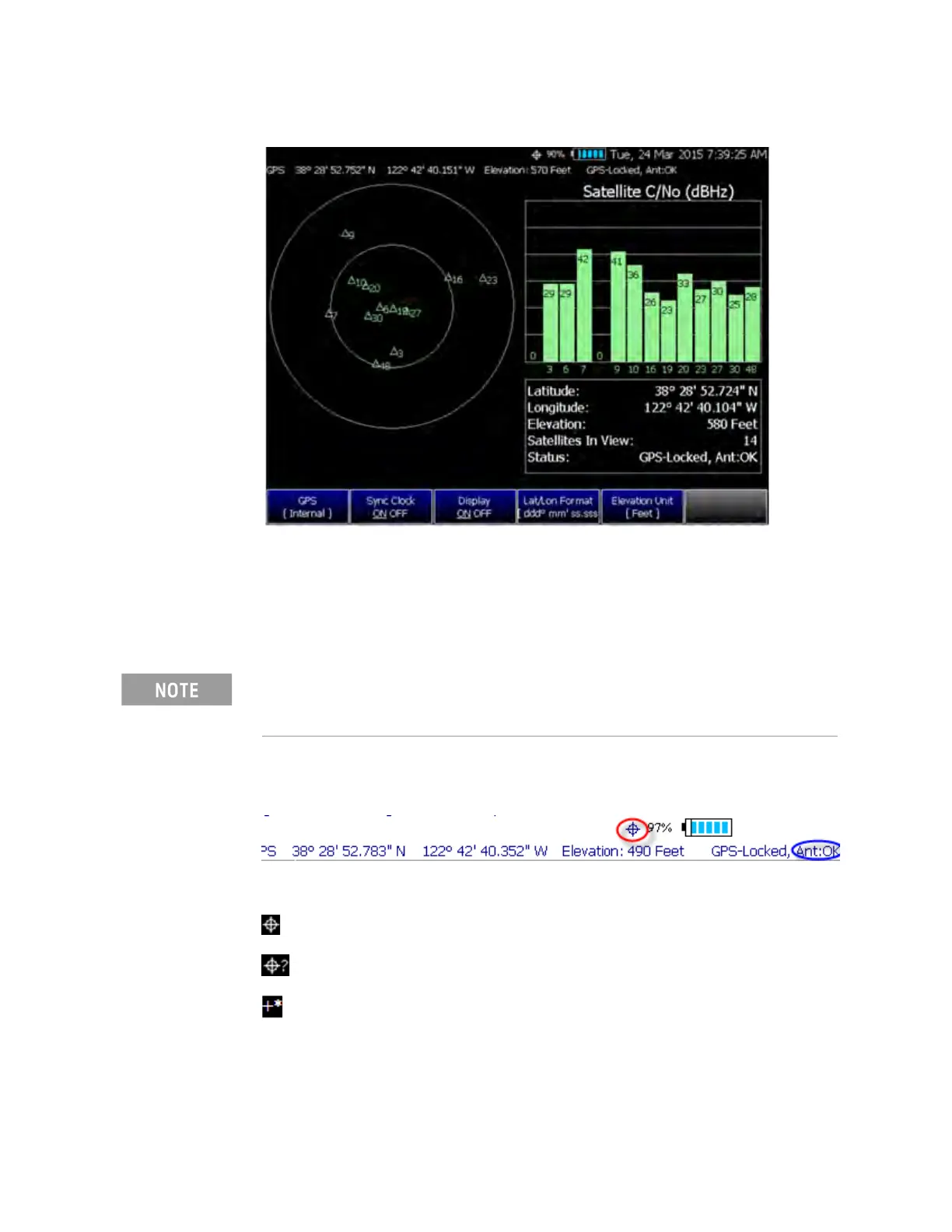

Figure 29-8 GPS Display
— The left portion of the screen displays satellites and the corresponding
number on the adjacent Satellite Power chart.
— The right portion of the screen displays Satellite Power Carrier to Noise
(C/No) dBHz values on the tops of the satellite power chart.
GPS Status
With GPS enabled the following is displayed at the top of the FieldFox screen:
The following icons (located in RED circle above) indicate the GPS lock status:
- GPS ON and locked on satellites.
- GPS ON, but NOT locked on satellites.
- GPS ON, but no GPS receiver is present or detected.
The following annotation (BLUE circle in above image) indicates the INTERNAL,
top-panel antenna status:
—Ant: INIT – antenna status initializing.
The C/No values returned are not calibrated at the factory or warranted for
accuracy. The numbers retrieved are passed unprocessed directly from the
GPS receiver in use.
