l Keep wire size between AWG 10 (6 mm
2
) maximum and AWG 14 (2.5 mm
2
) minimum. Wires must
carry currents of up to 15 A.
l Strip wire insulation back 15 mm.
l Push the wire straight into the oval opening (1). Observe polarity.
l Twist or bundle the wires to reduce noise.
l To release the wire, insert a small screwdriver into the square release-tab opening (2).
l To release the connector from the unit, push both orange release tabs in together (3) and pull
back on the plug.

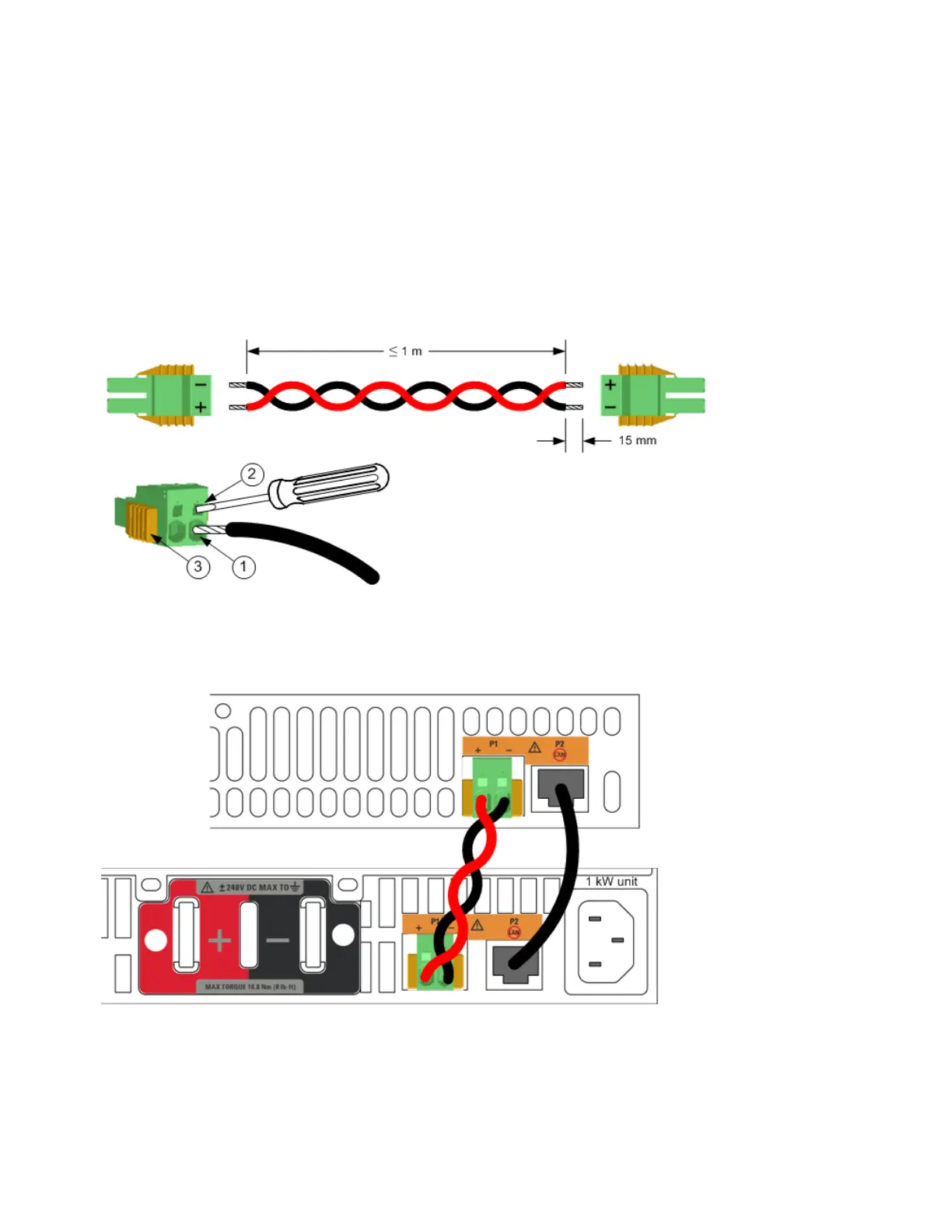

Power Dissipator Connections - 1 kW Units
2 Installing the Instrument
84 Keysight N6900/N7900 Series Operating and Service Guide
