Destination Description
Digital Pin Sends the trigger output signal to the designated digital output pin. See Pro-
gramming the Digital Port.
Elog Starts external data logging (Elog). Note that external data logging must first be
initiated. See External Data Logging.
Arb Starts the arbitrary waveform. Note that the waveform must first be enabled and
initiated. See Programming Output Transients.
Note that the trigger system can be combined with user-defined signal expressions to provide control
signals for specific applications. See Using Expression Signal Routing.

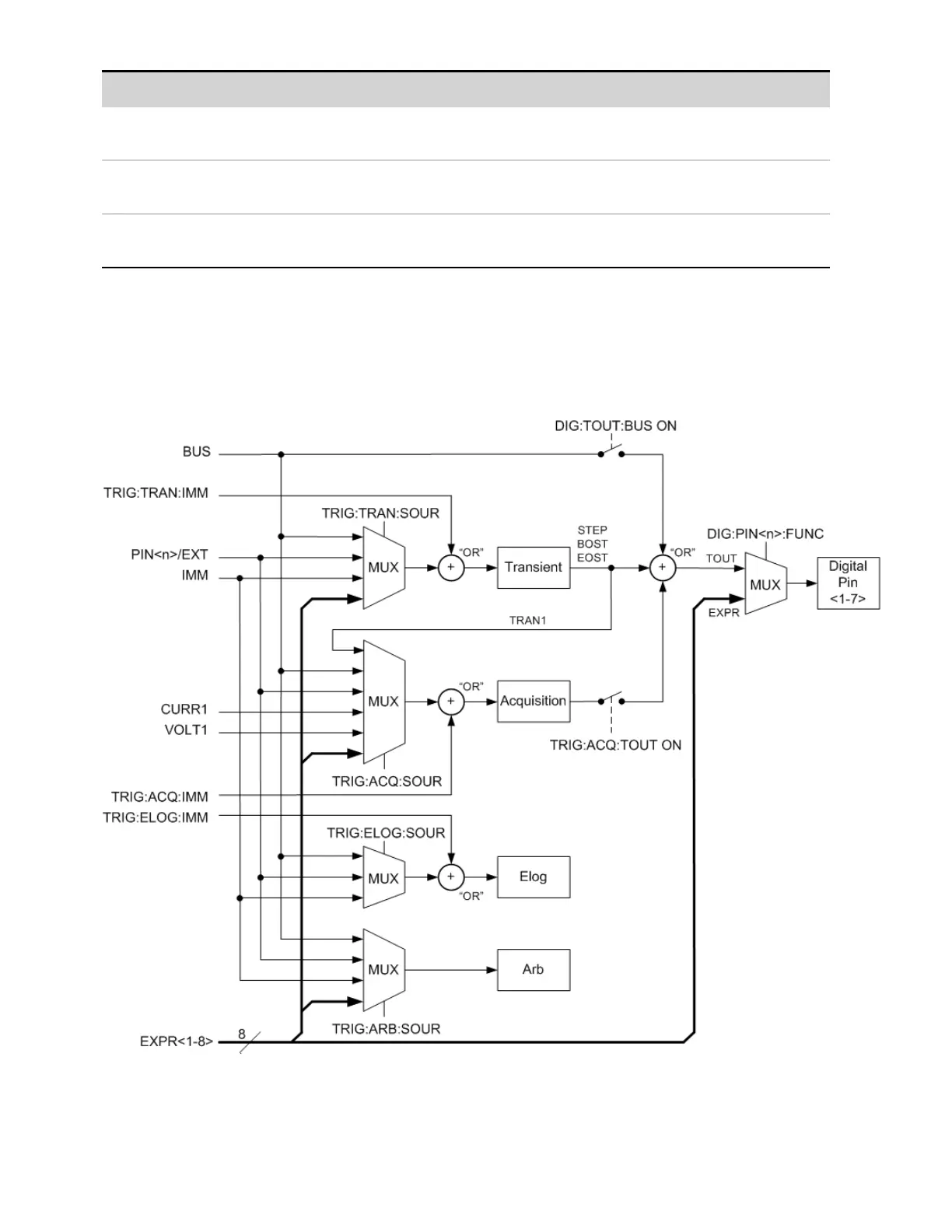

Trigger Diagram
6 SCPI Programming Reference
291 Keysight N6900/N7900 Series Operating and Service Guide
