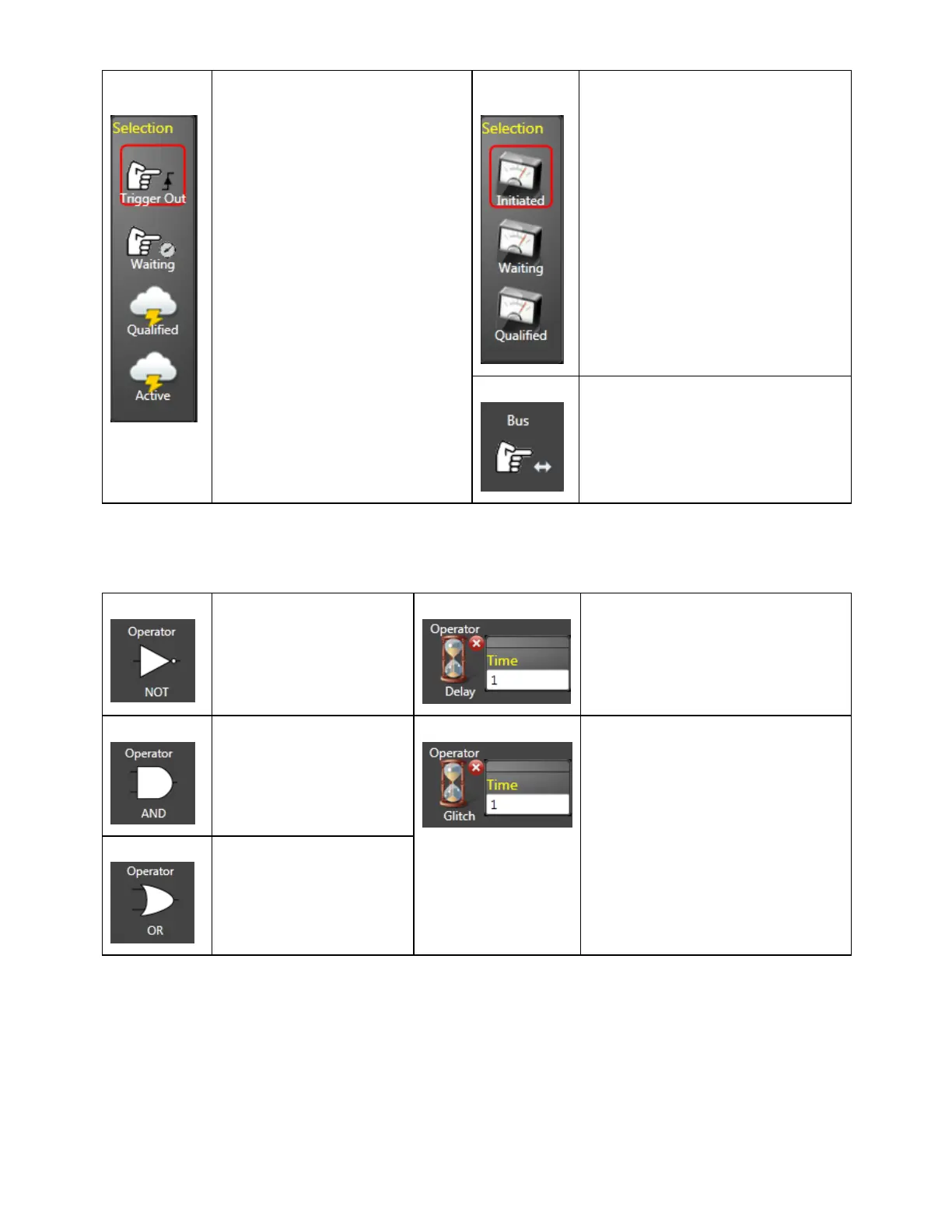

Transient
Icons
When the signal is true
Pulses true when a trigger out sig-
nal occurs (by a step or list)
The instrument is waiting for the
transient trigger
Pulses true when the transient trig-
ger occurs
The transient is initiated or in pro-
gress
Acquisition
Icons
When the signal is true
The acquisition is initiated or in pro-
gress
The instrument is wating for the
acquisition trigger
Pulses true when the acquisition trig-
ger occurs
Bus Icon
Pulses true when a bus trigger is
received (either *TRG or GET)
Operator Icon Descriptions
Not Icon
The input signal is not true
Delay Icon
Delays the signal by the specified
time
And Icon
The input signal is not true
Glitch Icon
Suppresses positive pulses narrower
than the de-glitch time parameter
Or Icon
One of the input signals is
true
Keysight N6900/N7900 Series Operating and Service Guide 193
5 Using the Power Assistant Software
