Section 1 Basic Printer Functions
1-32

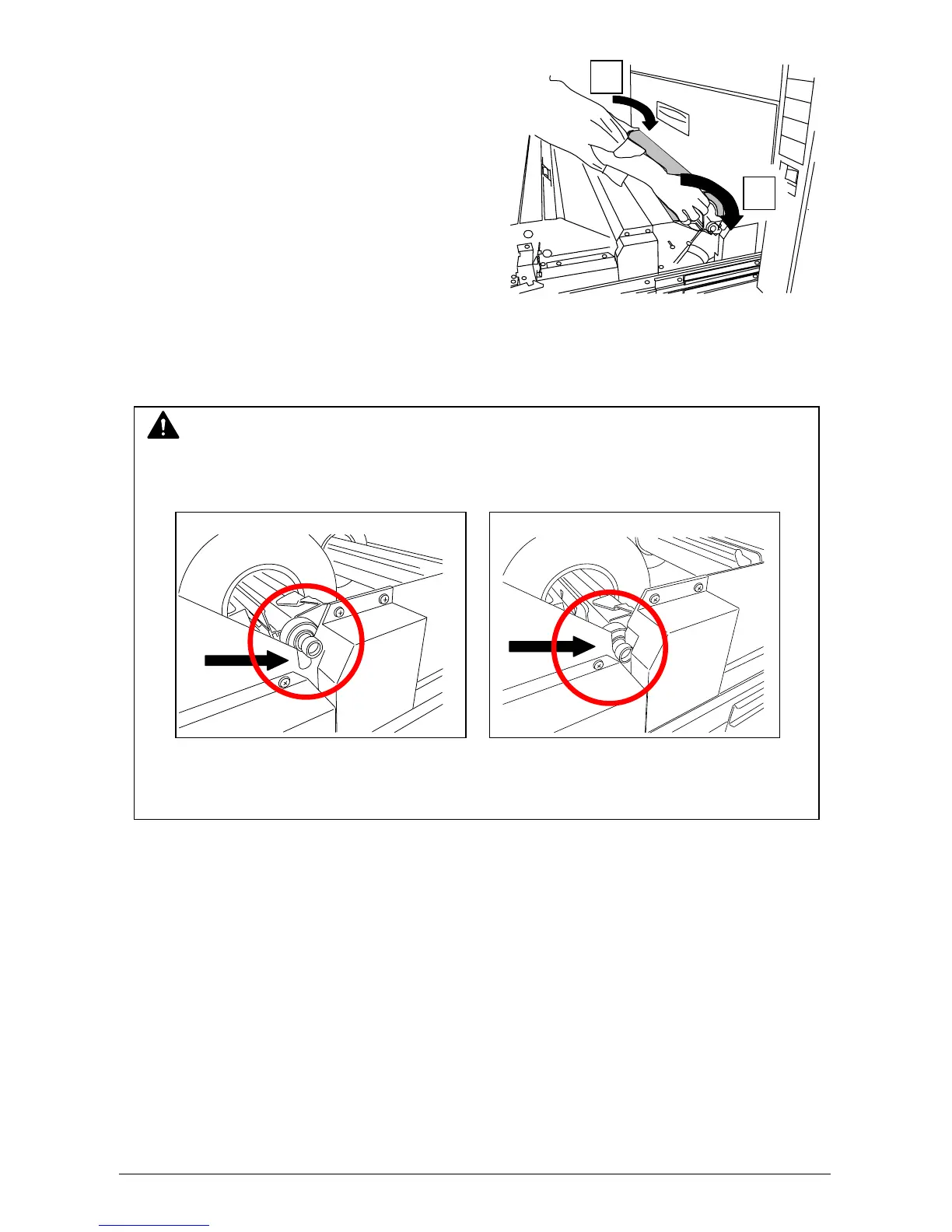

8-2) Slide the right side of the
Operator Aid Arm backward.
Then slide the left side of the
Operator aid Arm backward
to install the Roll Spool in the
Roll Deck. (Do not slide both
sides of the Operator Aid
Arm at the same time.)
1
2
NOTE
When you place the Roll Spool back into the Roll Deck, make sure to fit the collar of the right
side of the Roll Spool into the proper position.
In Correct Correct
(The collar of the Roll Spool is out of (The collar is set in the proper position.)
the proper position.)
