Optional accessories
Operating manual for INVEOR α | DOC01539818 - 0004 | 2017-01 | V2.0 EN 129

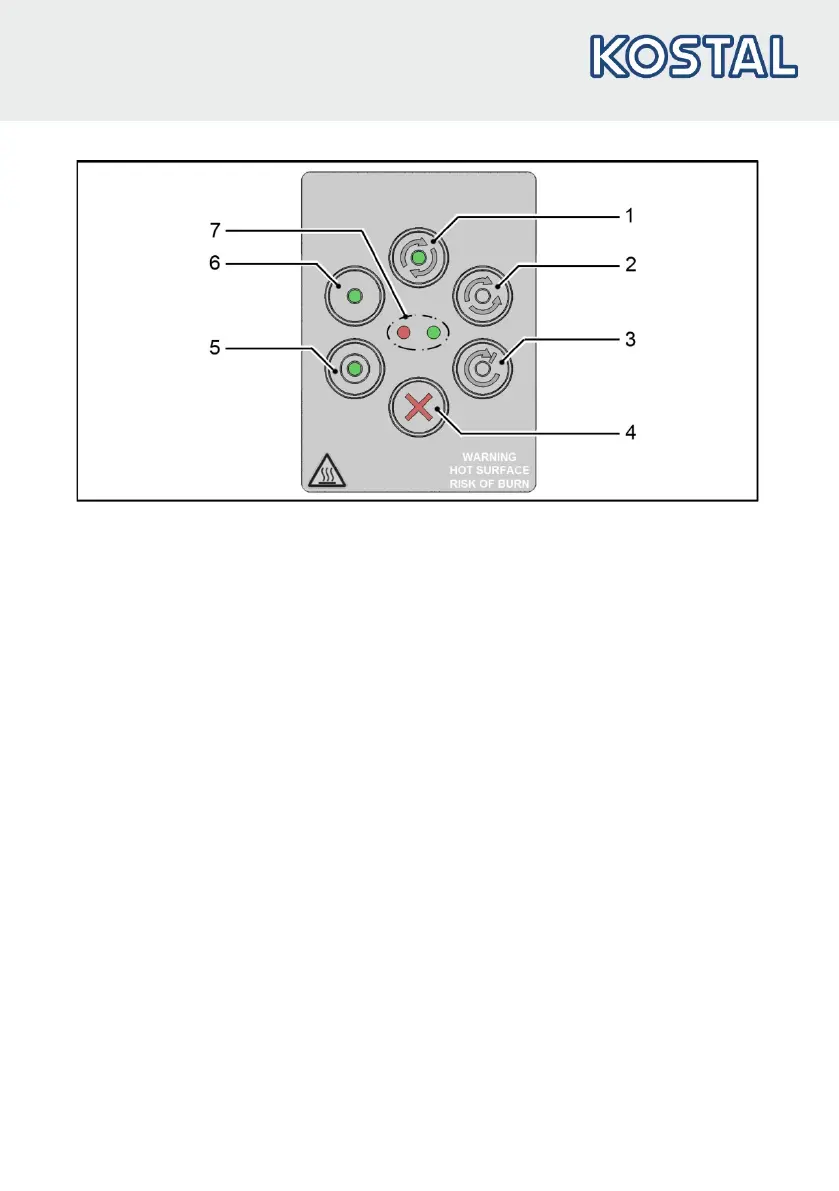

Target value approval: The start (1) and stop (3) keys integrated in the foil keypad (select foil
keypad) can be used to approve the drive software (parameter 1.131).
Direction of rotation V1: The direction of rotation (parameter 1.150) can be changed using
the key (2) integrated in the foil keypad (select foil keypad, direction of rotation key).
The direction of rotation can only be changed when the motor is running.
Direction of rotation V2: The direction of rotation (parameter 1.150) can be changed using
keys (6) and (5) integrated in the foil keypad (select foil keypad, key I clockwise/key II anti-
clockwise via stop).
The direction of rotation can only be changed when the motor is stationary.
The integrated LEDs indicate the current direction of rotation.
