Optional accessories
Operating manual for INVEOR α | DOC01539818 - 0004 | 2017-01 | V2.0 EN 137
9.8 CANopen connection cable

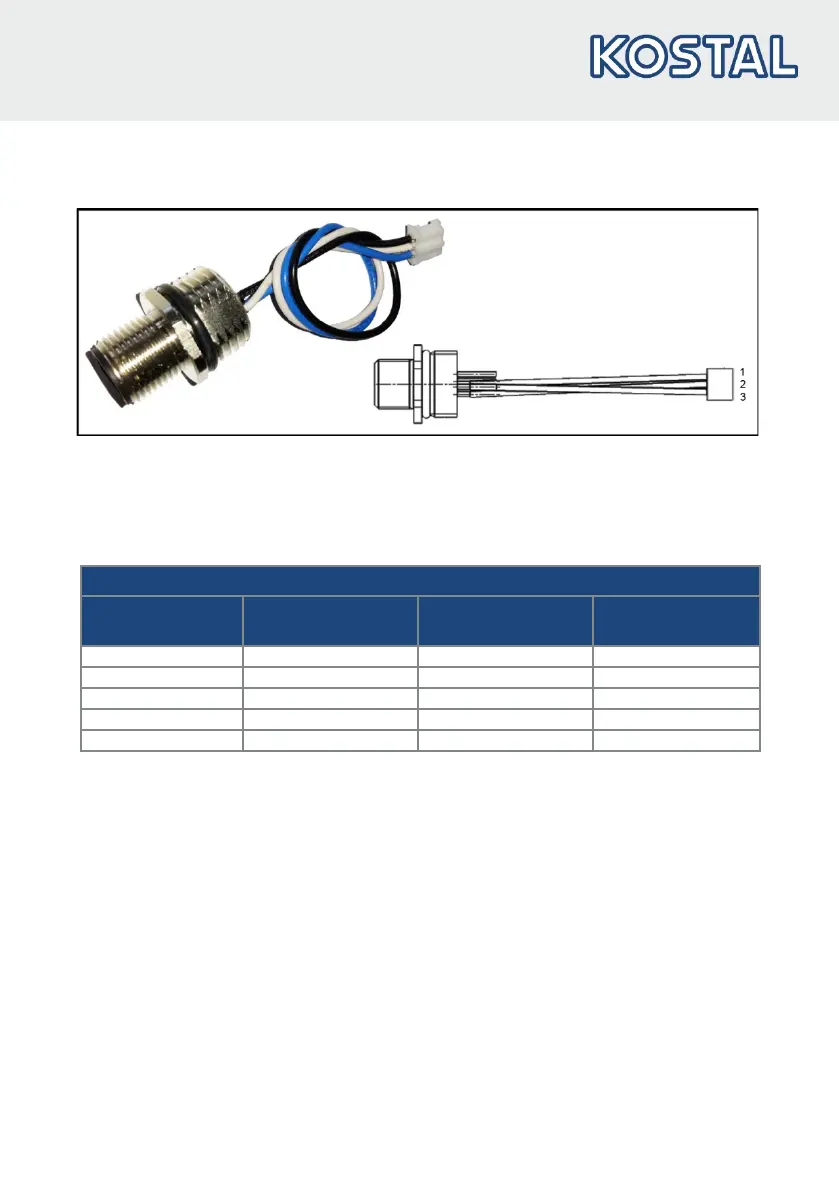

Fig.: 44 CANopen connection cable
The CANopen connection cable (art. no.: 10118224) is only intended for fitting in the cooling
elements.
The drive controller can be connected to a CANopen bus system via the connection.
CANopen connection cable pin assignment
JST plug
pin assignment
Line colour Signal M12 plug
assignment
1
black
CAN_L
5
2
white
Can_H
4
3
blue
GND
3
1
2
