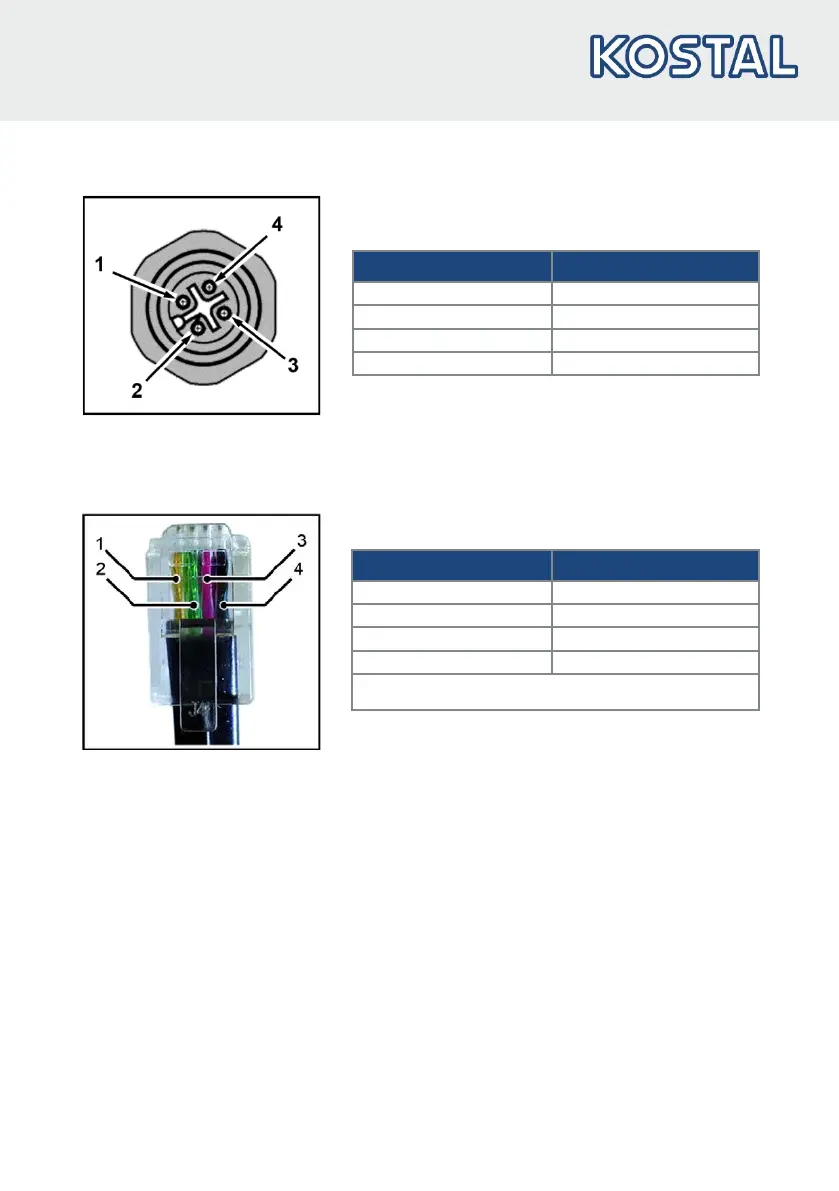

9.3.1 MMI/connecting cable PIN assignment
Fig. 1: M12
plug PIN assignment
Fig. 2: RJ9 plug connector
Description: Round plug connector (plug)
4-pin M12 A-coded.
M12 plug assignment
Signal
1
24 V
2
RS485 - A
3
GND
4
RS485 - B
Description: RJ9 plug connector
Pin
Signal
1
yellow
2
green
3
red
4
brown
Attention: The colours may vary!
