Installation
34 Operating manual for INVEOR α | DOC01539818 - 0004 | 2017-01 | V2.0 EN
3.3.5 Wiring instructions
The control connections of the application card are located inside the drive control.
The configuration may vary depending on the version.
Control terminals (size α)

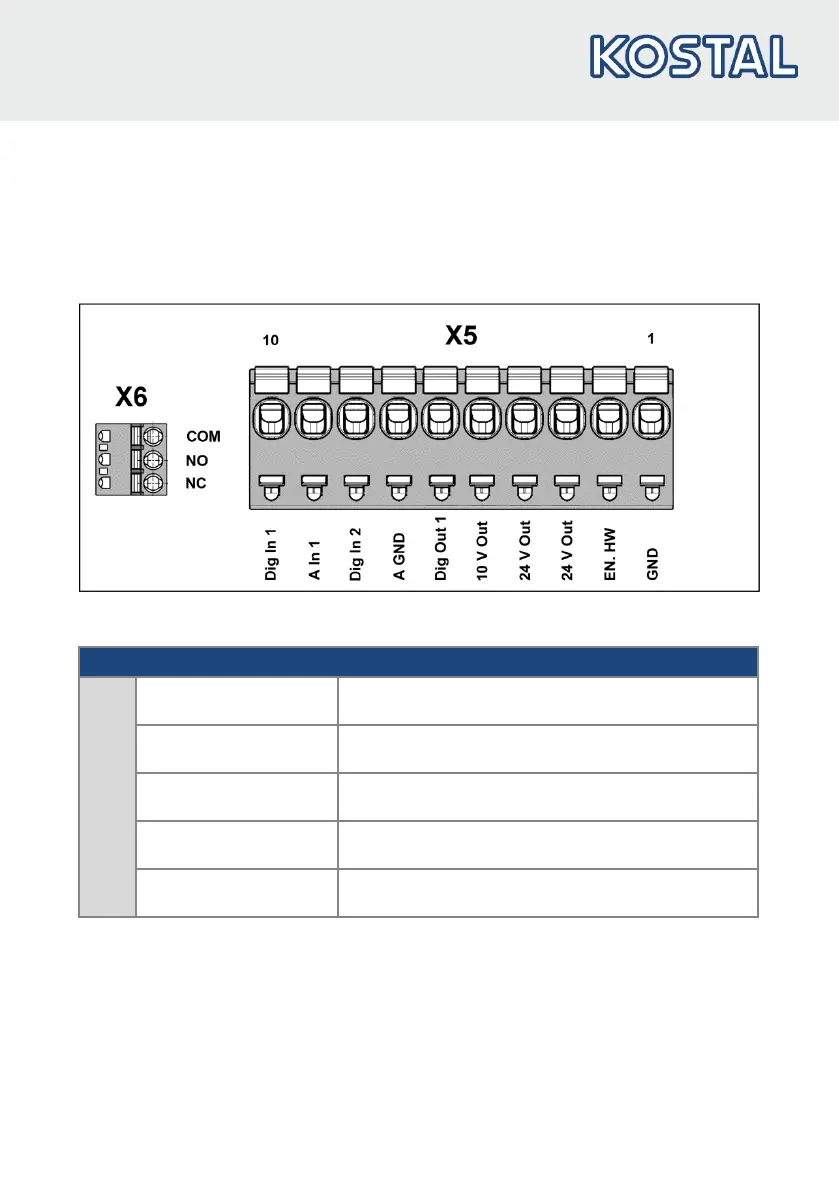

Fig.: 12 Control terminals (size α)
Size α
X5 – X6
Terminals: Plug terminal clamp with activation button
(slot screwdriver, max. width 2.5 mm)
[X5] Connection cross-
section:
0.14 to 1.5 mm², fine-wired, AWG 30 to AWG 16
[X6] Connection cross-
section:
0.2 to 2.5 mm², fine-wired, AWG 30 to AWG 12
Connection cross-section: 0.5 to 1.0 mm², fine-wired
(core end sleeves with and without plastic collars)
Length of stripped
insulation:
9 to 10 mm
For technical data on power connections, see page 35
