Quickstart guide
Operating manual for INVEOR α | DOC01539818 - 0004 | 2017-01 | V2.0 EN 147
11.2 Quickstart guide for synchronous motors
Motor type 33.001
2: Synchronous motor
Motor current
33.031
Motor rating
33.032
Motor speed
33.034
Motor frequency
33.035
Motor
identification
Motor data is
being calculated
Adapt adapter plate to motor
and secure
Motor and PTC connection T1,
T2, U, V, W, PE on X411
L1, N, PE mains connection
Terminals 1 – 3 on X1
Activate grid
Communication
Handheld
controller
PC
Option: Connection cable (USB/M12)
Art. no. 10023950 + 10118219
Option: MMI (RJ9/M12)
Art. no. 10004768 + 10118219
Installation of
INVEORpc
Enable software
Target value
source
1.130
Internal
External
Accessories for
potentiometer
art. no. 10118232
Fixed nominal
values
Analogue input A.In 1
Terminal 9 on X5
Fieldbus
option
(CANopen)
Enable hardware:
+24V on En.HW
Terminal 2/3 on X5
1.131
+24V on Dig In1
Terminal 10 on X5
Start-up protection
1.132 set to
inactive
Type of regulation
34.010 set to 200
n controller
34.090 / 34.091

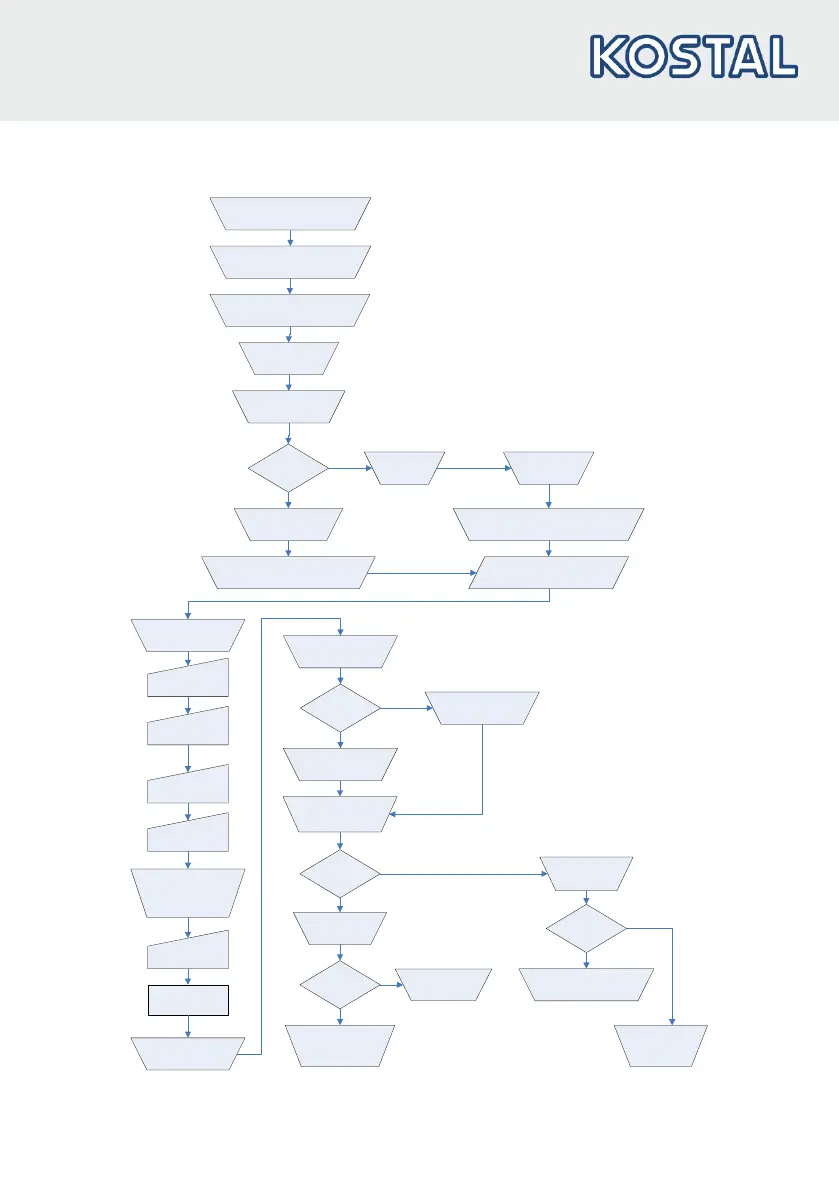

Fig.: 47 Block diagram for quick start for SM
