Kostal INVEOR Drive Controller - Control Connections of Application Board

Installation
42 Operating manual for INVEOR α | DOC01539818 - 0004 | 2017-01 | V2.0 EN
3.4.3 Control connections of application board

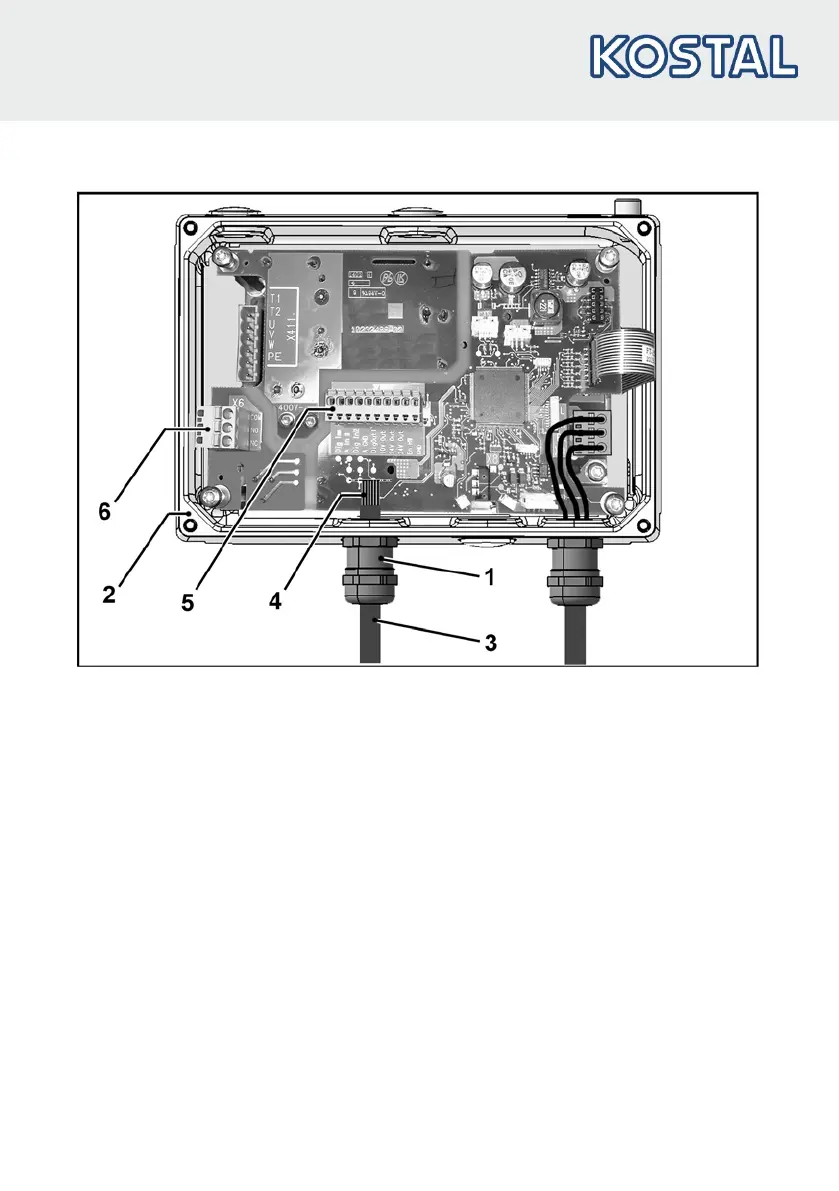

Fig.: 16 Control connections of application board
1. Screw cable screw connection (1) into cooling elements (2) (M
A
= 3 Nm).
2. Guide control line (3) through cable screw connection (1) into cooling elements (2).
Fix control line (3) by tightening (M
A
= 3 Nm) rear section of cable screw connection (1).
3. Connect control lines (4) to control connection terminals X5 (5) and X6 (6) respectively.
