9.7 MMI M12 plug (JST plug)

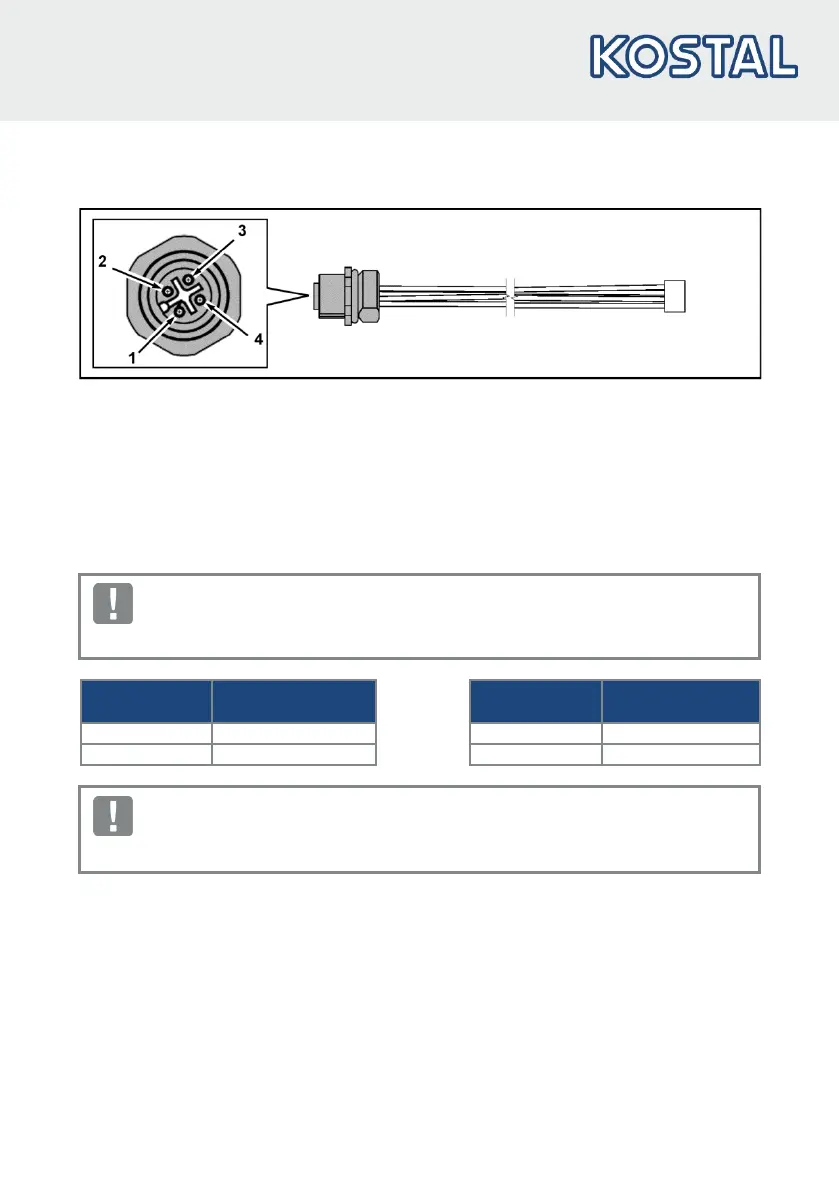

Fig.: 43 MMI M12 plug (JST plug)
Round plug connector (socket) 4-pin M12 A-coded.
The MMI M12 connection cable (art. no.: 10118216) is only intended for fitting in the cooling
elements.
The MMI M12 connection cable can be used to permanently connect the drive controller with the
MMI or PC.
IMPORTANT INFORMATION
Note that the MMI/PC interface is not intended for connecting several control devices!
M12 plug
assignment
Signal
M12 plug
assignment
Signal
1
24 V
3
GND
2
RS485 - A
4
RS485 - B
IMPORTANT INFORMATION
The "MMI plug" (art. no. 10118216) may only ever be used with an INVEOR α.
