Commissioning
56 Operating manual for INVEOR α | DOC01539818 - 0004 | 2017-01 | V2.0 EN
4.4 Commissioning steps
The commissioning can be performed using a PC communication cable USB at M12 plug with
integrated interface converter RS485/RS232 (part no. 10023950) or using the INVEOR handheld
controller MMI* with connection cable RJ9 at M12 plug (part no. 10004768).
As an option, an INVEOR α adapter cable (jack plug on M12) must be used (article no.:10118219)

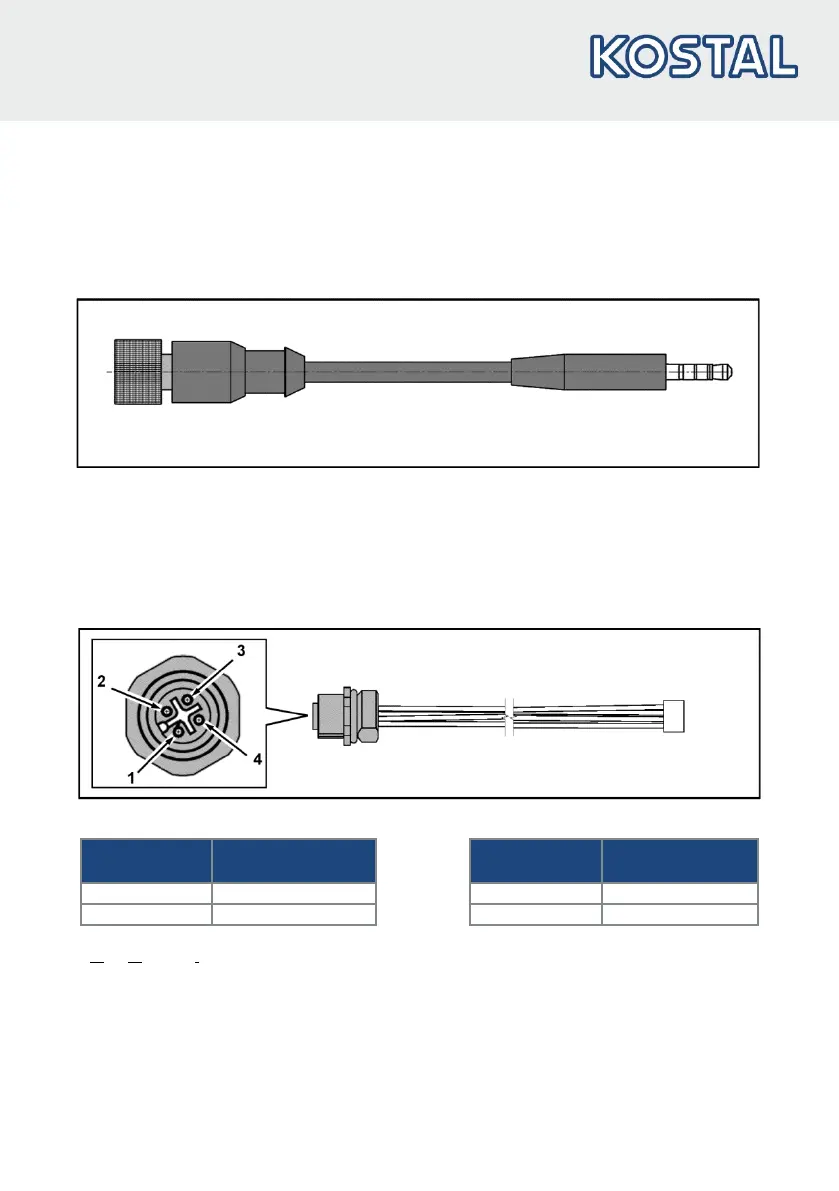

Fig.: 27 INVEOR α adapter cable
The above commissioning options (PC communication cable/handheld controller MMI) may only be
used in conjunction with the option (jack plug on M12) (art. no. 10118219).
Commissioning can also be carried out using MMI M12 plugs (line set MMI 4-pin)
(art. no. 10118216) (optional).
Fig.: 28 MMI M12 plug (JST plug)
M12 plug
assignment
Signal
M12 plug
assignment
Signal
1
24 V
3
GND
2
RS485 - A
4
RS485 - B
* Man-Machine Interface
