Optional accessories
138 Operating manual for INVEOR α | DOC01539818 - 0004 | 2017-01 | V2.0 EN

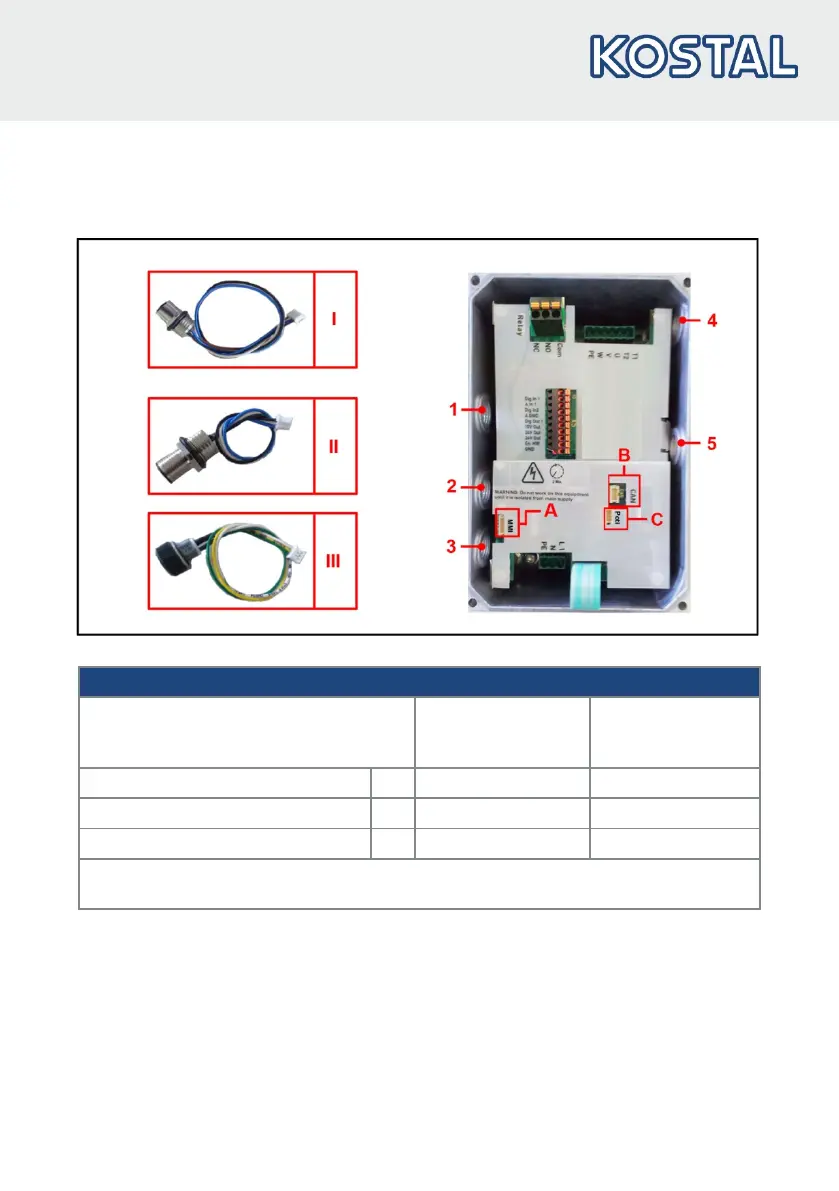

9.9 Connection and screw-in information for "Optional
accessories"
Connection and screw-in information for "Optional accessories"
Optional accessories Possible
screw-in position
connection
position
on I/O board
MMI M12 (art. no.: 10118216) I 1, 4, 5 A
CANopen (art. no.: 10118224) II 1, 4, 5 B
Potentiometer (art. no.: 10118232) III 1, 4, 5 C
All optional screw connections can also be fitted in position 2, but the status LEDs are then
no longer visible.
