Installation
Operating manual for INVEOR α | DOC01539818 - 0004 | 2017-01 | V2.0 EN 51

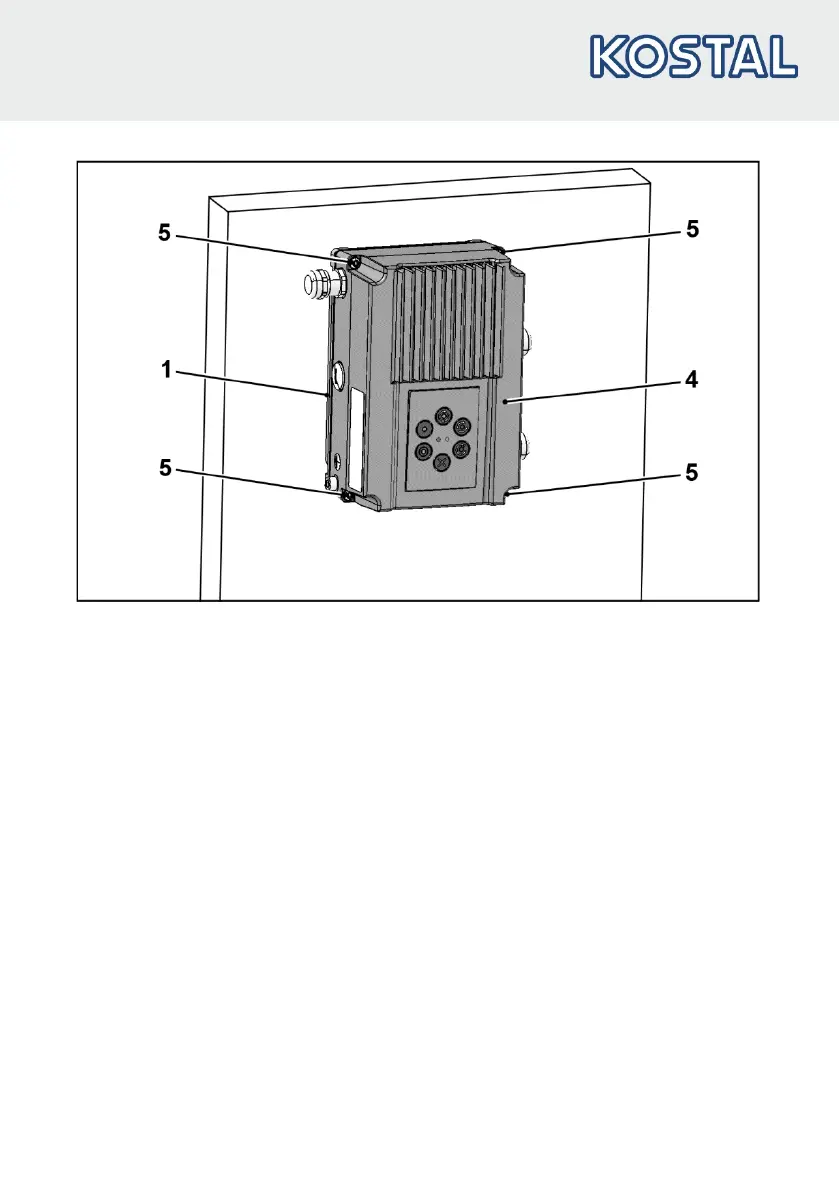

Fig.: 23 Attaching drive controller (wall mounting)
9. Place drive controller (4) on adapter plate (1).
10. Screw down cooling elements (4) to the adapter plate (1) with the help of the screws (5)
provided (torque: M
A
= 1.2 Nm).
3.5.3 Power connection
The power connections should be designed as described in section 3.3 ff.
"Installing the drive controller integrated in the motor".
3.5.4 Control connections
The control connections should be designed as described in section 3.3 ff.
"Installing the drive controller integrated in the motor".
