Installation
Operating manual for INVEOR α | DOC01539818 - 0004 | 2017-01 | V2.0 EN 47
3.5 Installing the wall-mounted drive controller
3.5.1 Suitable installation location for wall mounting
Ensure that the installation location for an INVEOR α wall mounting meets the following conditions:
The drive controller has to be mounted on an even and fixed surface.
The drive controller may only be mounted on non-flammable bases.
There must be clearance of 200 mm around the drive controller to ensure free convection.
The following figure shows the assembly dimensions and the free spaces required for installing the
drive controller.

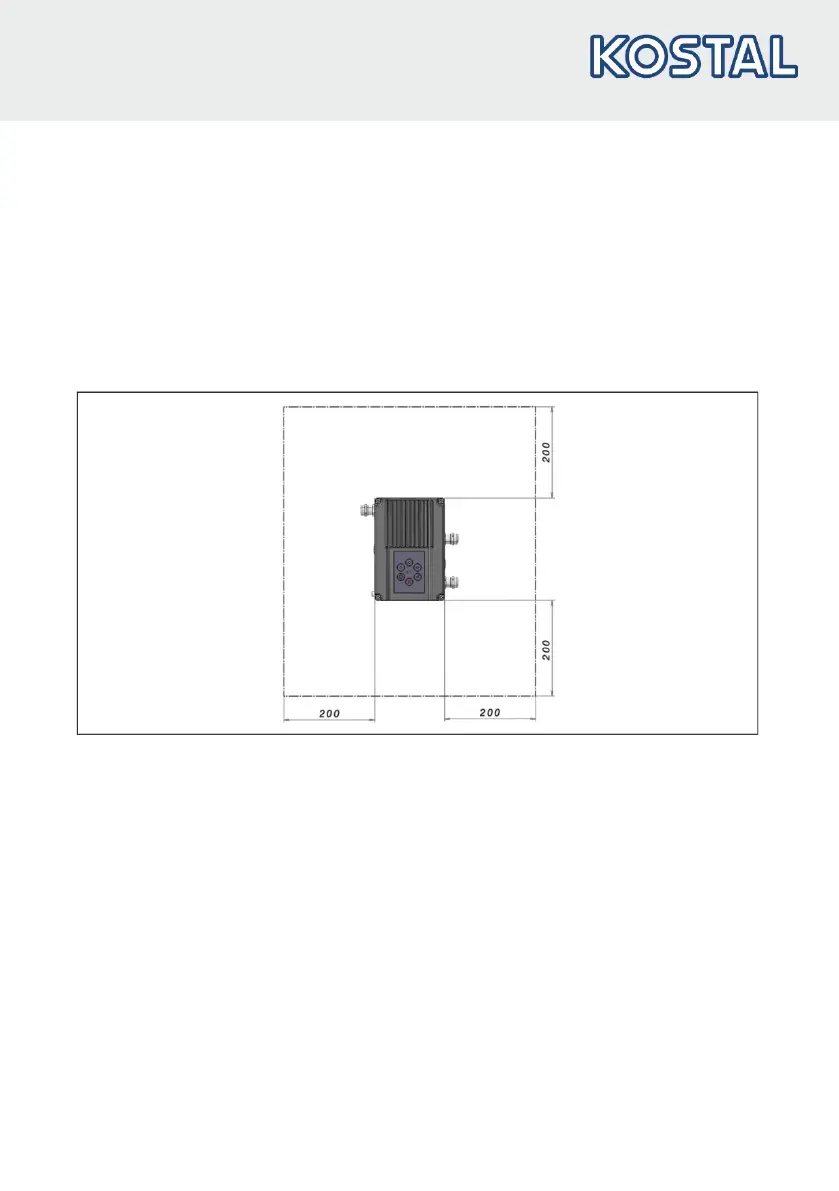

Fig.: 19 Installing the wall-mounted drive controller
For the "wall mounting" version, the line length between the motor and INVEOR αmay not exceed
5 m. Only use a shielded cable with the required cross-section.
