Kostal INVEOR Drive Controller - Basic Connection Versions

Installation
Operating manual for INVEOR α | DOC01539818 - 0004 | 2017-01 | V2.0 EN 31
3.3.3 Basic connection versions
Triangle connection variant

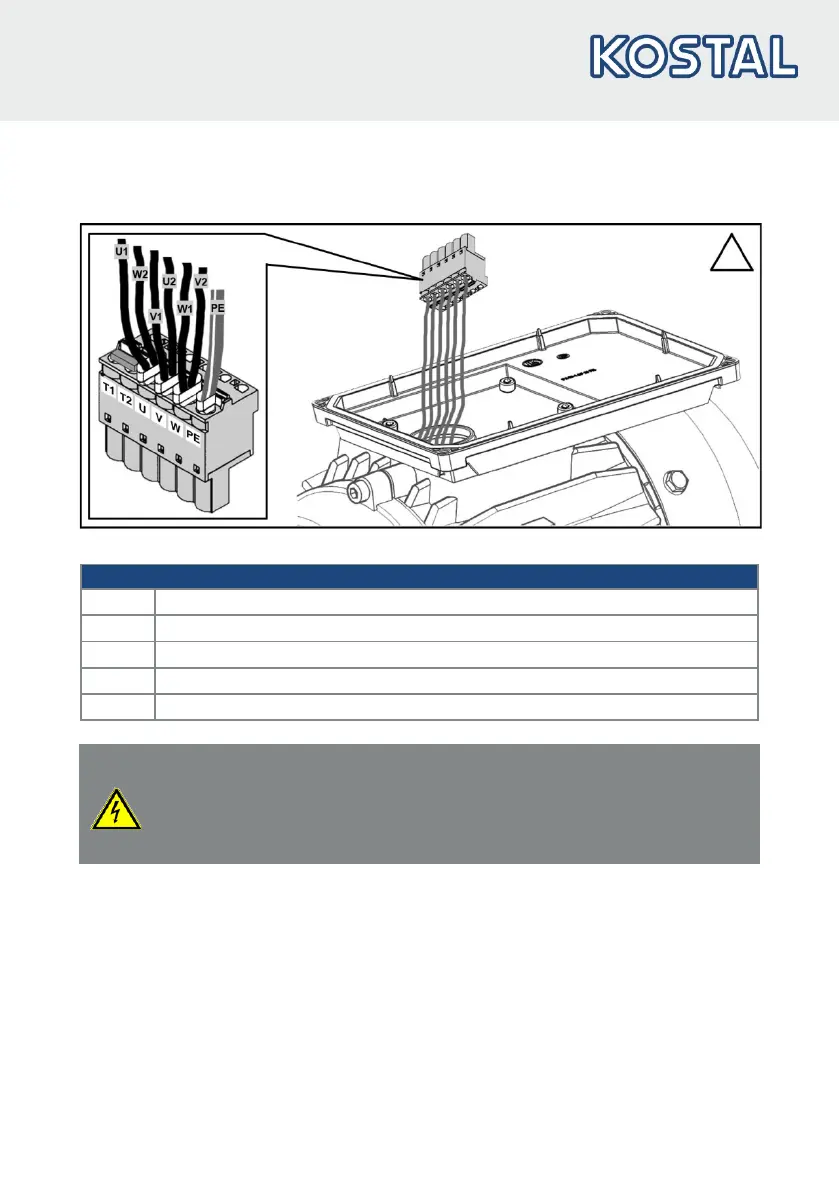

Fig.: 10 Triangle connection with motor-integrated drive controller
Triangle connection terminal assignment
U
W2, U1
V
U2, V1
W V2, W1
PE PE
T1, T2 Connect bridge (see scope of delivery)
DANGER!
Risk of death due to electrical shock!
Death or serious injury!
De-energise drive controller and secure it against being restarted.
