Installation
32 Operating manual for INVEOR α | DOC01539818 - 0004 | 2017-01 | V2.0 EN
Star connection variant

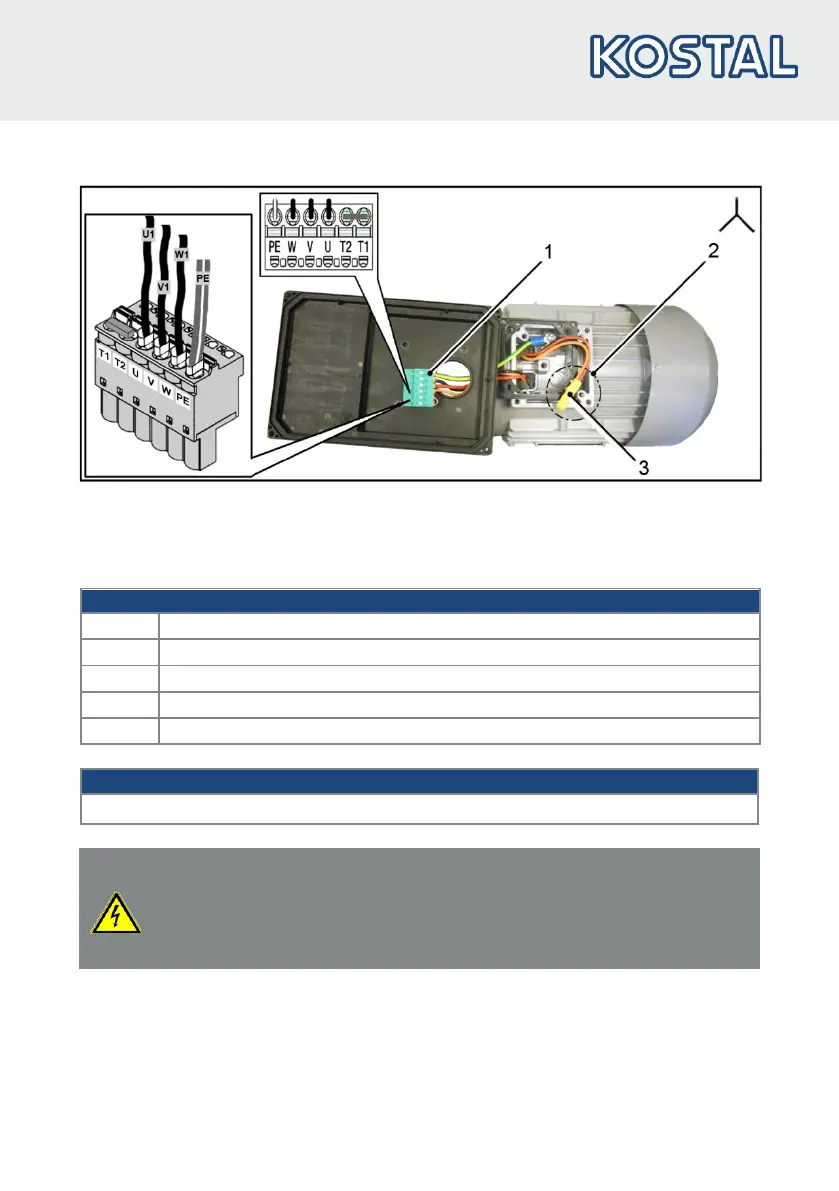

Fig.: 11 Star connection with motor-integrated drive controller
1
Motor connector
3
Butt connector
2 Star point
Star connection terminal assignment
U
U1
V
V1
W W1
PE PE
T1, T2 Connect bridge (see scope of delivery)
Star formation
W2, U2, V2
DANGER!
Risk of death due to electrical shock!
Death or serious injury!
De-energise drive controller and secure it against being restarted.
