Installation
Operating manual for INVEOR α | DOC01539818 - 0004 | 2017-01 | V2.0 EN 35
Power connections (size α)

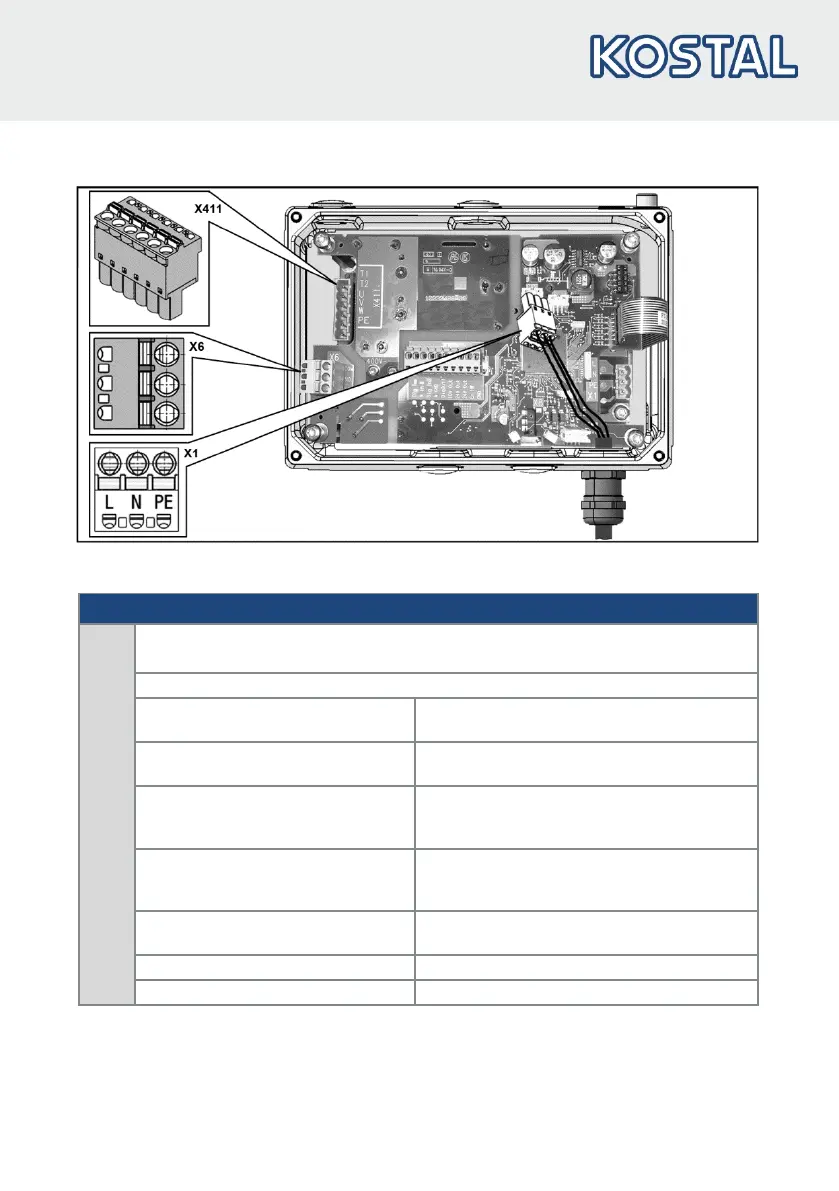

Fig.: 13 Power connections (size α)
Size α
The terminals for the mains cable are located inside the drive controller.
The configuration may vary depending on the version.
Core end sleeves with plastic collars and lugs are recommended.
Terminals: Spring force connection
(slot screwdriver, max. width 2.5 mm)
Conductor cross-section, flexible: min. 0.2 mm²
max. 2.5 mm²
Conductor cross-section, flexible with
core end sleeve without and with
plastic sleeve:
max. 2.5 mm²
2 conductors of the same cross-
section, flexible with TWIN-AEH with
plastic sleeve:
max. 1.25 mm²
Conductor cross-section AWG: min. 30
Length of stripped insulation: 10 mm
Mounting temperature: -5°C to +100°C
