Installation
Operating manual for INVEOR α | DOC01539818 - 0004 | 2017-01 | V2.0 EN 45

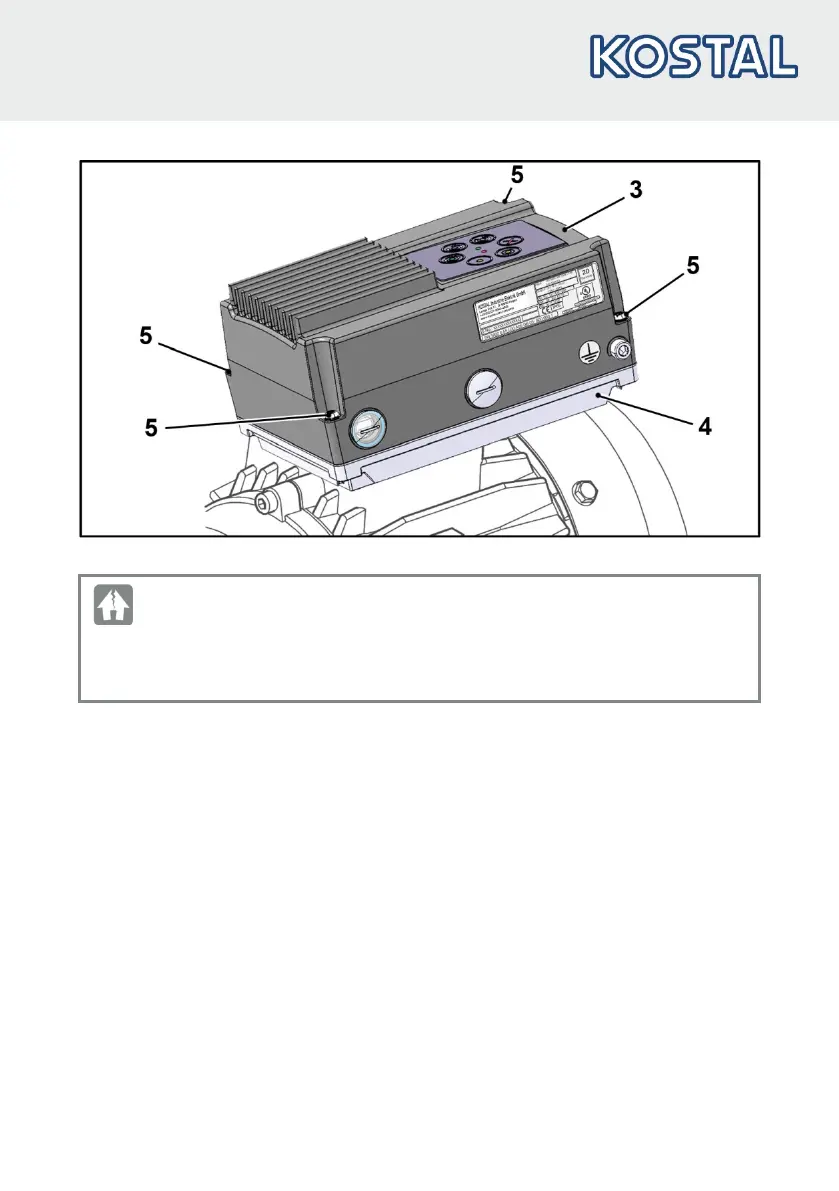

2. Carefully attach cooling elements (3) on adapter plate (4).
DAMAGE TO PROPERTY POSSIBLE
Failure to comply with the information may result in damage to the drive controller!
When attaching a drive controller with a foil keypad, be absolutely sure that the flat ribbon cable
is not pinched.
3. Screw down cooling elements (3) to adapter plate (4) using four retaining bolts (5)
(M
A
= 1.2 Nm).
