30/ASSEMBLING THE ENGINE 123

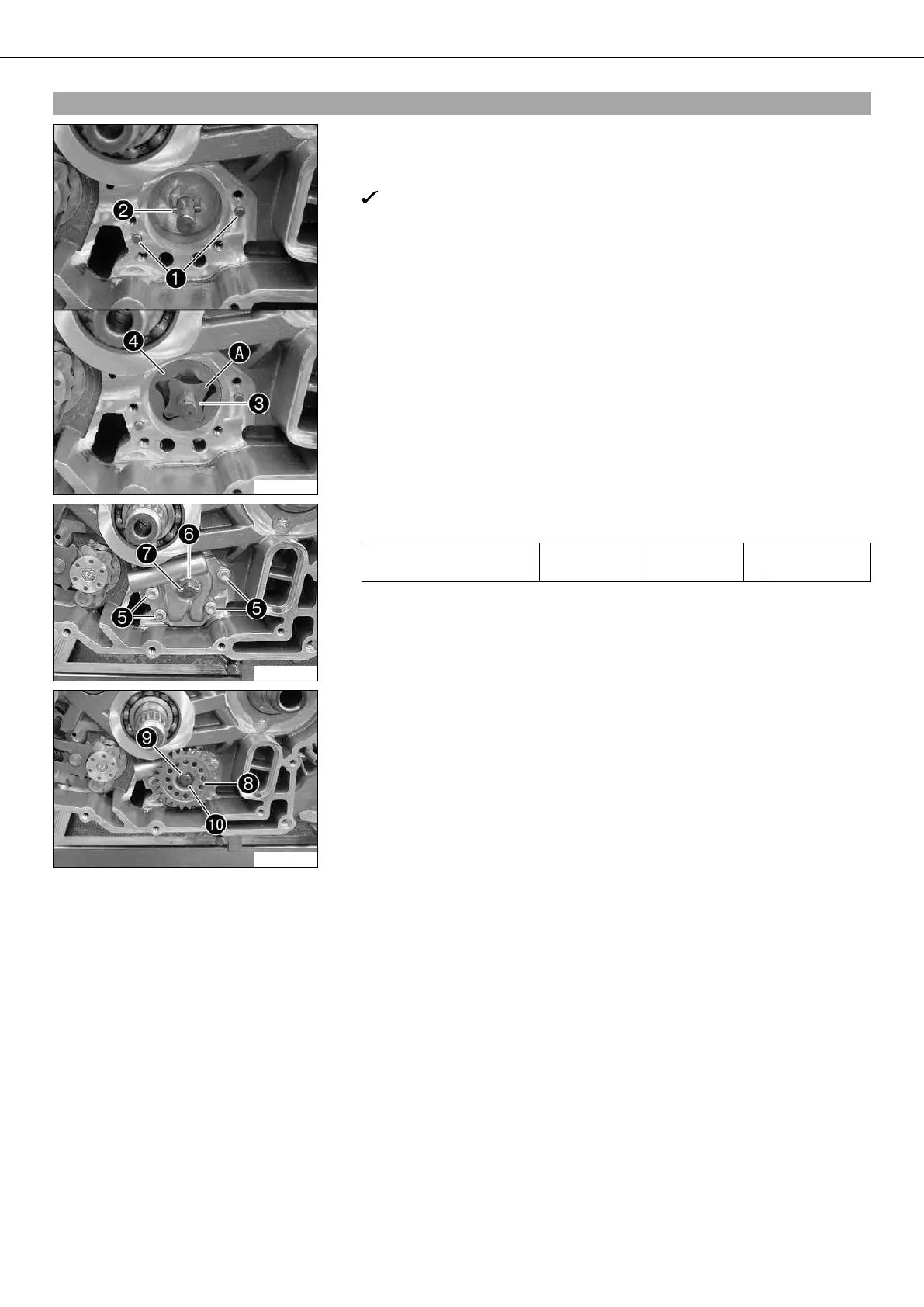

21.11Installing the force pump
200416-11
– Mount pins .
– Mount pin .
– Mount internal rotor and external rotor .
Marking of the internal rotor is visible after mounting while that of the exter-
nal rotor is not.
– Oil the parts.
200415-11
– Position the oil pump cover. Mount and tighten screws .
Guideline
Screw, oil pump cover M6 10 Nm
(7.4 lbf ft)
Loctite
®
243™
– Mount washer and pin .
200414-11
– Mount oil pump gear wheel , washer and lock washer .
