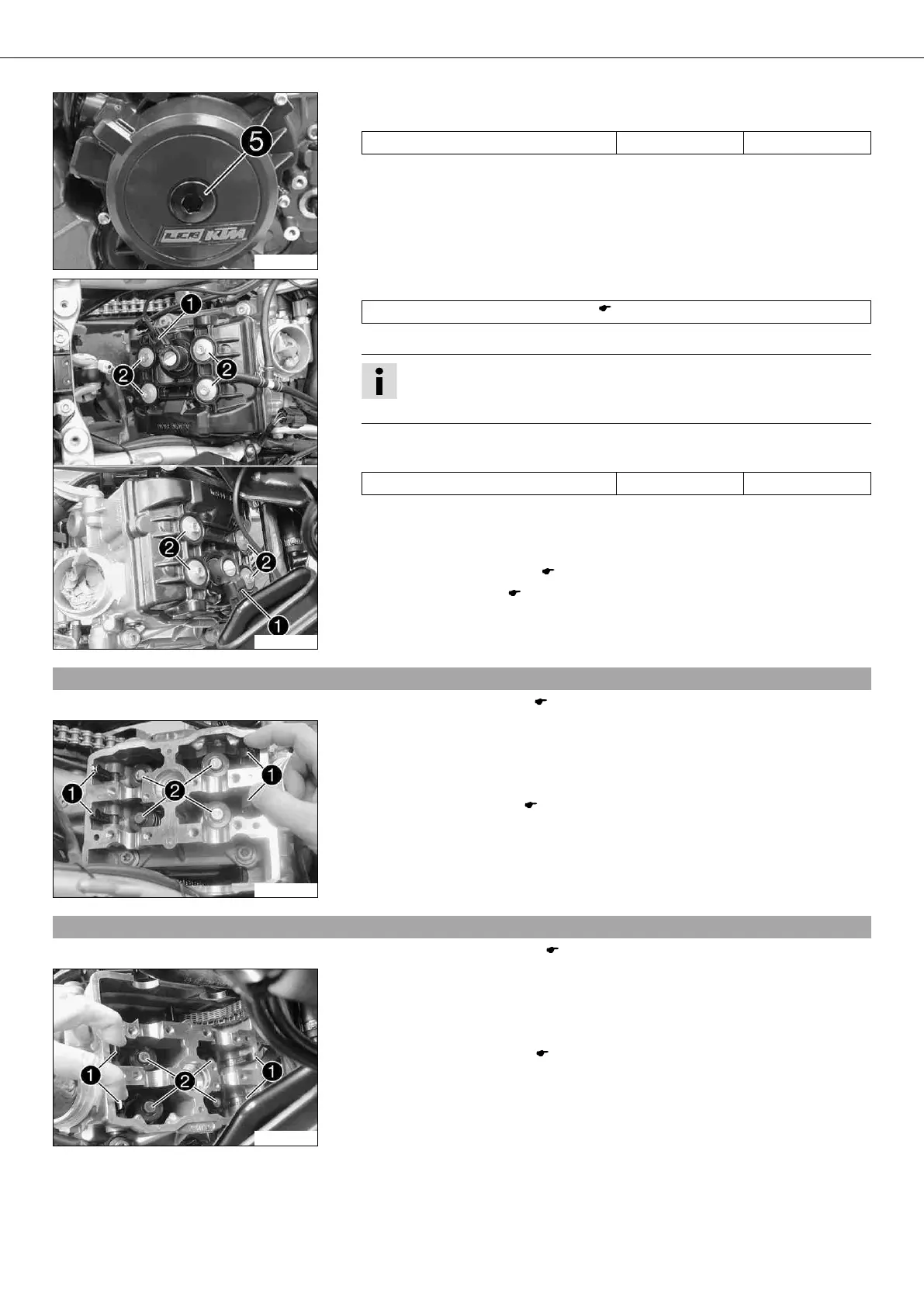

36/CYLINDER HEAD 150
200539-10
– Mount and tighten the screw of generator cover .
Guideline
Screw in generator cover M24x1.5 8 Nm (5.9 lbf ft)
200538-10
– Mount and tighten the spark plug using a special tool.
Spark plug wrench (75029172000) ( p. 202)
– Position the valve cover seal.
Info
The rear valve cover is equipped with a connector for the engine vent.
The front valve cover is not equipped with a connector for the engine vent.
– Position the valve cover with the seal. Mount and tighten screws .
Guideline
Screw, valve cover M6 10 Nm (7.4 lbf ft)
– Mount the ignition coil.
– Attach connector of the ignition coil.
– Repeat these steps on the second cylinder.
– Install the filter box bottom. ( p. 30)
– Install the side covers. ( p. 36)
25.2Adjusting the rear valve clearance
– Remove the rear camshaft. ( p. 151)
200546-10
– Raise cam lever on the outside.
– Remove shims and set them down according to the installation position.
– Correct and insert the shims as indicated by the results of the valve clearance
check.
– Install the rear camshaft. ( p. 151)
25.3Adjusting the front valve clearance
– Remove the front camshafts. ( p. 152)
200552-10
– Raise cam lever on the outside.
– Remove shims and set them down according to the installation position.
– Correct and insert the shims as indicated by the results of the valve clearance
check.
– Install the front camshafts. ( p. 152)
