14/LIGHT SYSTEM, INSTRUMENTS 66
400422-12

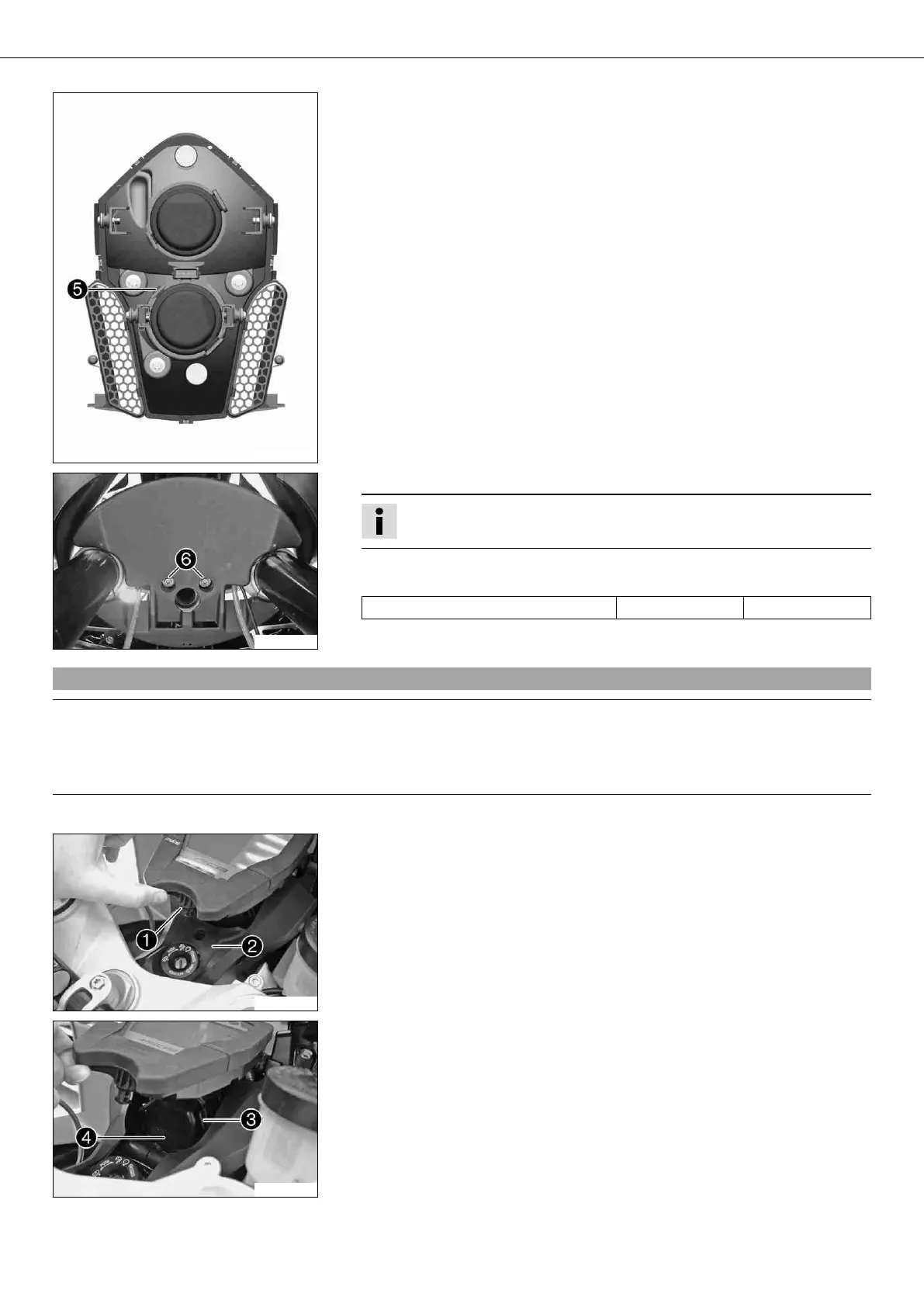

– Position the lug of the lamp cover in the notch. Engage the latch.
– Check lighting function.
700335-11
– Position cover.
Info
Check for correct positioning and freedom of movement of the brake lines.
– Mount and tighten screws .
Guideline
Remaining chassis screws M6 10 Nm (7.4 lbf ft)
17.15Changing the low beam bulb
Note
Damage to reflector Keep the glass of the bulb free of grease.
– Clean the glass bulb with a clean cloth before mounting. Any grease on the glass will evaporate by the heat and be deposited on
the reflector.
– Switch off all power-consuming components and switch off the engine.
700293-01
– Fold up the combination instrument. Pull the lug out of the rubber holder .
– Remove the rubber holder.
700294-01
– Release the latch .
– Remove the lamp cover .
