KTM 1190 RC8 EU 2008 - Adjusting the Vehicle Level at the Rear

04/SHOCK ABSORBER, SWINGARM 23
700341-11
– Tighten screw .
Guideline
Remaining chassis screws M5 5 Nm (3.7 lbf ft)

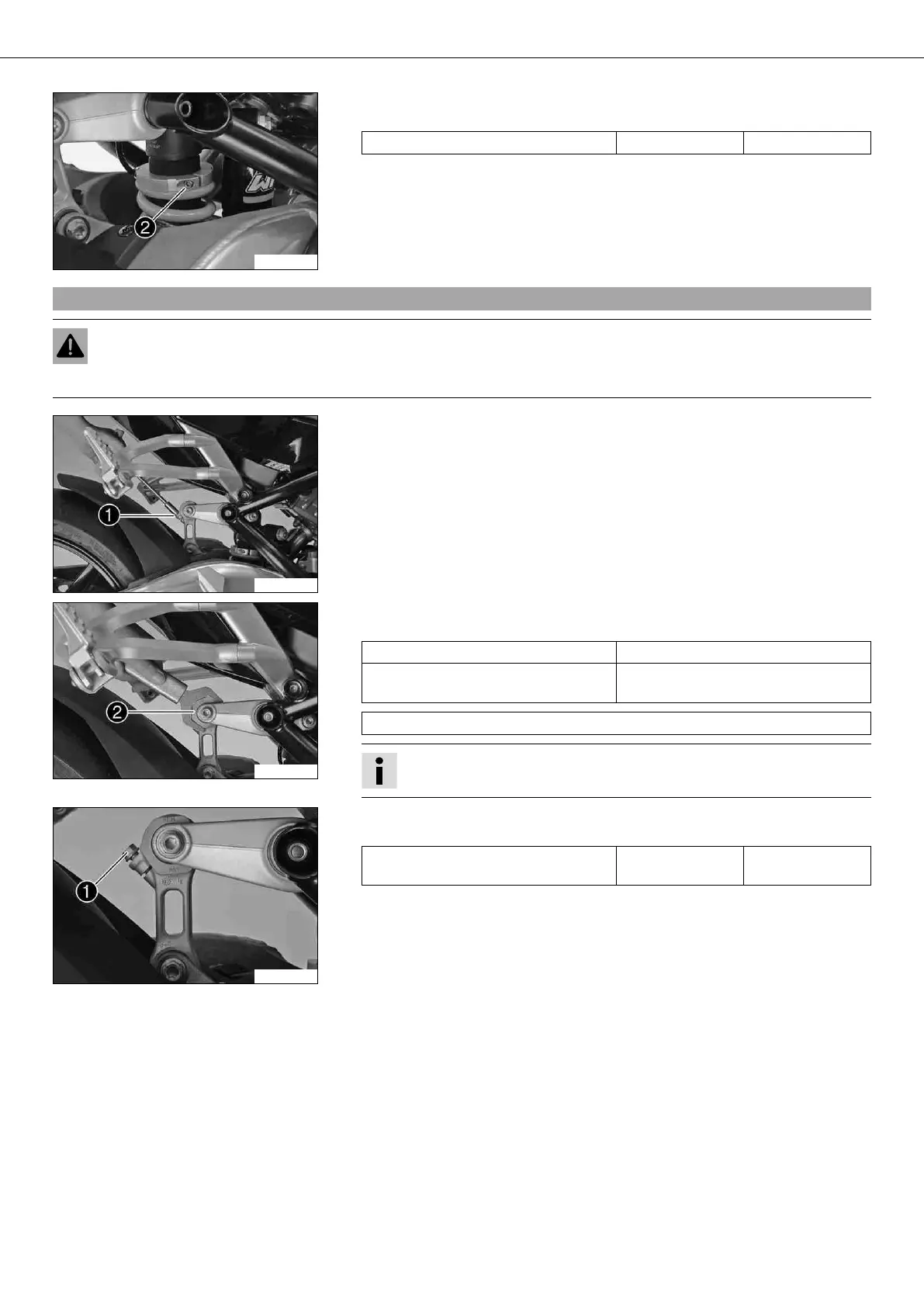

8.5Adjusting the vehicle level at the rear
Warning
Danger of accidents Modifications to the chassis can seriously alter the vehicle's handling characteristics.
– Following modifications, ride slowly at first to get the feel of the new handling characteristics.
700331-01
– Loosen screw  but do not remove it.
700332-01
– Turn eccentric shaft  to the desired position using the tool from the tool set.
Guideline
Standard LOW
Maximum adjustment range between
HIGH - LOW
180°
Open end wrench SW 38 (69012021000)
Info
The chassis height can be adjusted in both directions.
700334-01
– Tighten screw .
Guideline
Remaining chassis screws M8 25 Nm
(18.4 lbf ft)
