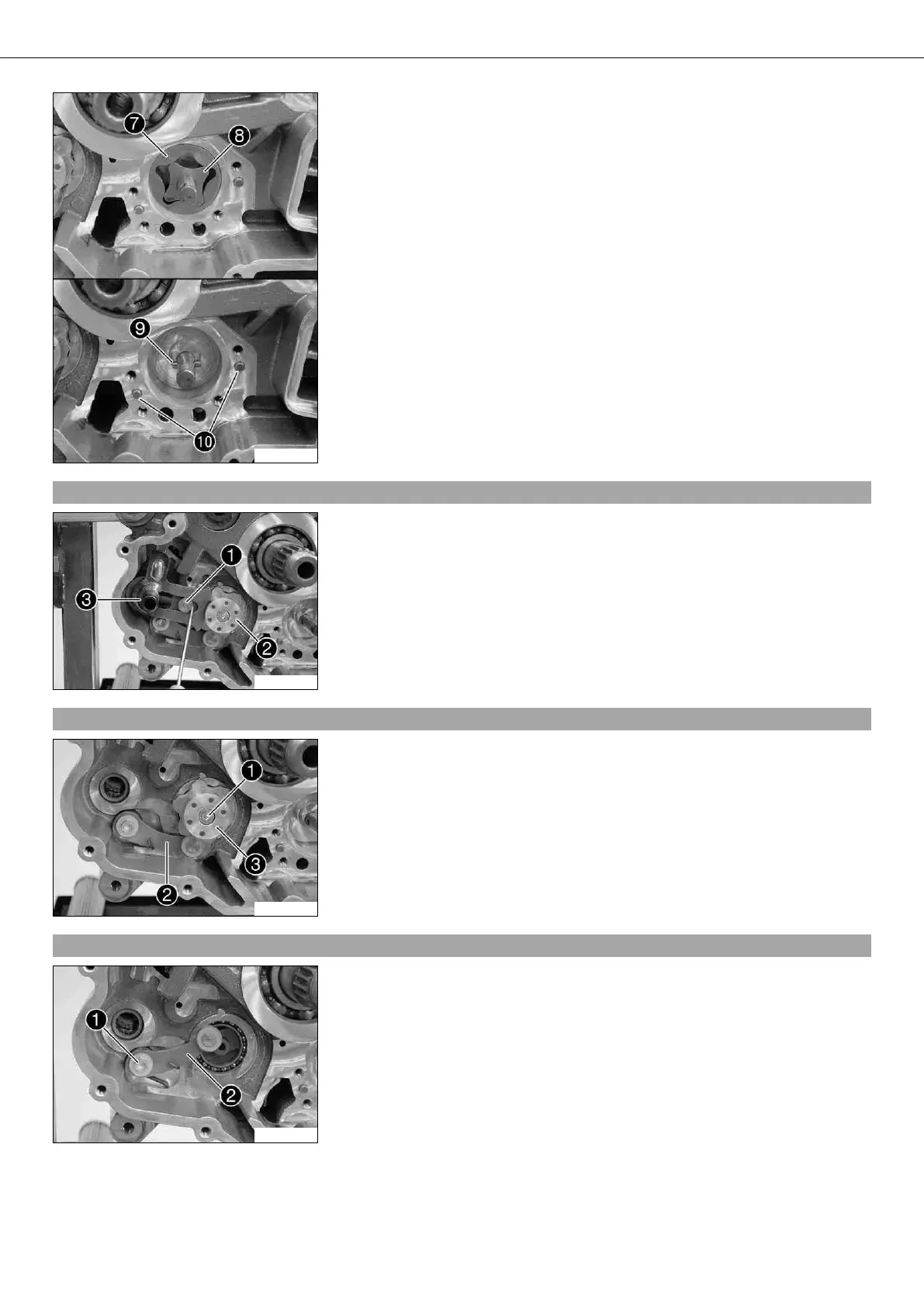

30/DISASSEMBLING THE ENGINE 89

200416-10

– Remove external rotor  and internal rotor .

– Remove pin .

– Remove pins .

19.35Removing the shift shaft

200417-10

– Push sliding plate  away from the shift drum locating . Remove shift shaft 

with the washer.

19.36Removing the shift drum locating

200418-10

– Remove screw .

– Press locking lever  away from shift drum locating  and take off the shift drum

locating.

– Release the locking lever.

19.37Removing the locking lever

200420-10

– Remove screw .

– Take off locking lever  with the sleeve and spring.

Table of Contents4
Means of Representation7
Important Notes8
Location of Serial Numbers9
- Chassis Number/Type Label9
- Key Number9
- Engine Number9
- Fork Part Number9
- Shock Absorber Part Number9
- Steering Damper Part Number10
Motorcycle11
- Jacking up Motorcycle Front11
- Taking Front of Motorcycle off Work Stand11
- Jacking up Motorcycle Rear11
- Taking Rear of Motorcycle off Work Stand11
- Starting12
01/Fork, Triple Clamp13
- Adjusting Compression Damping of Fork13
- Adjusting Rebound Damping of Fork13
- Adjusting Spring Preload of Fork14
- Bleeding Fork Legs14
- Vehicle Level15
- Adjusting Front Vehicle Level15
02/Handlebar, Controls and Instruments17
- Adjusting Basic Position of Clutch Lever17
- Adjusting the Steering Damper17
- Adjusting the Handlebar Height17
- Adjusting Gas Bowden Cable18
03/Frame19
- Footrest Position19
- Adjusting Footrest Position19
- Rear Frame Position20
- Adjusting the Rear Frame Position20
04/Shock Absorber, Swingarm23
- Adjusting the Low-Speed Compression Damping of the Shock Absorber23
- Adjusting High-Speed Compression Damping of the Shock Absorber23
- Adjusting Rebound Damping of the Shock Absorber24
- Adjusting Spring Preload of Shock Absorber24
- Adjusting the Vehicle Level at the Rear25
05/Exhaust26
- Removing the Exhaust Cover Completely26
- Installing the Exhaust Cover Completely26
- Removing the Exhaust System26
- Installing the Exhaust System28
06/Air Filter30
- Removing the Air Filter30
- Installing the Air Filter30
- Removing the Filter Box Bottom30
- Installing the Filter Box Bottom32
07/Fuel Tank, Seat, Trim34
- Removing the Seat34
- Fitting the Seat34
- Removing Passenger Seat34
- Fitting the Passenger Seat34
- Dismounting the Fuel Tank34
- Installing the Fuel Tank35
- Removing the Fuel Tank Guard36
- Installing the Fuel Tank Guard37
08/Mask, Fender, Decal38
- Removing the Side Covers38
- Installing the Side Covers38
- Removing the Inside Cover38
- Installing the Inside Cover39
09/Front Wheel40
- Removing Front Wheel40
- Fitting Front Wheel40
- Tire Condition Checking41
- Checking Tire Air Pressure41
- Checking the Front Brake Discs42
10/Rear Wheel43
- Removing Rear Wheel43
- Installing the Rear Wheel43
- Installing the Rear Wheel - When Installing the Engine44
- Tire Condition Checking46
- Checking Tire Air Pressure46
- Checking the Rear Brake Disc47
- Checking for Chain Dirt47
- Cleaning the Chain47
- Checking the Chain Tension47
- Adjusting the Chain Tension48
- Checking Rear Sprocket / Engine Sprocket for Wear49
- Checking Chain Wear49
- Checking Chain Sliding Guard49
- Checking Rear Hub Shock Absorbers49
11/Wiring Harness, Battery51
- Removing the Battery51
- Installing the Battery51
- Recharging the Battery52
- Changing the Main Fuse53
- Changing the Fuses of Individual Power Consumers54
13/Brake System55
- Brake Linings55
- Checking the Front Brake Linings55
- Checking Brake Fluid Level of Front Brake55
- Topping up Brake Fluid of Front Brake56
- Adjusting the Basic Position of the Handbrake Lever56
- Checking the Rear Brake Linings56
- Checking Rear Brake Fluid Level57
- Topping up Rear Brake Fluid57
- Adjusting the Footbrake Pedal Stub58
- Adjusting the Footbrake Pedal58
- Removing the Rear Brake System59
- Installing the Rear Brake System59
14/Light System, Instruments60
- Activating/Deactivating Ignition Key60
- Setting ROAD or RACE Mode61
- Setting the Clock with SET CLOCK62
- Adjusting Shift Speed RPM1/262
- Setting the Blank Time of the LAP Button LAP BLANK T63
- Setting Number of Laps SET NUM LAPS63
- Setting Fuel Reserve Display TRIPF RESET64
- Setting Kilometers/Miles SET KM/MILES64
- Setting Temperature Unit SET °C/°F65
- Switching External Temperature Display On/Off65
- Resetting the Service Display65
- Checking Headlight Adjustment66
- Adjusting Headlamp Range66
- Changing the Parking Light Bulb67
- Changing the Low Beam Bulb68
- Change the High Beam Bulb69
30/Engine72
- Removing the Engine72
- Preparing the Engine for Installation74
- Installing the Engine74
- Setting the Engine to Ignition Top Dead Center of the Rear Cylinder78
- Setting the Engine to Ignition Top Dead Center of the Front Cylinder78
30/Disassembling the Engine79
- Clamping the Engine into the Engine Work Stand79
- Draining the Engine Oil79
- Removing the Front Valve Cover79
- Removing the Rear Valve Cover79
- Setting the Engine to Ignition Top Dead Center of the Rear Cylinder80
- Removing the Starter Motor80
- Removing the Oil Filler Tube80
- Removing the Heat Exchanger81
- Removing the Rear Timing Chain Tensioner81
- Removing the Rear Camshaft81
- Removing the Rear Cylinder Head82
- Removing the Rear Piston82
- Setting the Engine to Ignition Top Dead Center of the Front Cylinder82
- Removing the Front Timing Chain Tensioner82
- Removing the Front Camshafts83
- Removing the Front Cylinder Head83
- Removing the Front Piston83
- Removing the Generator Cover84
- Removing the Ignition Pulse Generator84
- Removing the Torque Limiter and Idler84
- Removing the Rotor84
- Removing the Idler and Timing Chain on the Left85
- Removing the Oil Filter86
- Removing the Balancer Shaft86
- Removing the Drive Wheel of the Balancer Shaft86
- Removing the Gear Position Sensor86
- Removing the Left Suction Pump87
- Removing the Water Pump Wheel88
- Removing the Clutch Cover88
- Removing the Idler and Timing Chain on the Right88
- Removing the Clutch Facing89
- Removing the Outer Clutch Hub89
- Removing the Primary Gear90
- Removing the Force Pump90
- Removing the Shift Shaft91
- Removing the Shift Drum Locating91
- Removing the Locking Lever91
- Removing the Left Engine Case92
- Removing the Crankshaft92
- Removing the Middle Suction Pump92
- Removing the Transmission Shaft93
- Removing the Oil Spray Tube94
- Removing the Timing Chain Rails of the Right Engine Case Section94
- Removing the Timing Chain Rails of the Left Engine Case Section94
30/Engine - Work on Individual Parts95
- Work on the Right Section of the Engine Case95
- Removing the Main Bearing of the Right Engine Case Section96
- Selecting the Main Bearing Shells97
- Installing the Right Main Bearing97
- Work on the Left Section of the Engine Case98
- Removing the Left Main Bearing100
- Installing the Left Main Bearing100
- Changing the Conrod Bearing101
- Work on the Clutch Cover102
- Changing the Step Bearing of the Crankshaft103
- Checking the Radial Clearance of the Bottom Connecting Rod Bearing104
- Checking/Measuring the Cylinder104
- Checking/Measuring the Piston105
- Checking the Piston Ring End Gap106
- Checking the Piston/Cylinder Mounting Clearance106
- Work on the Cylinder Head106
- Checking the Cylinder Head109
- Work on the Right Idler110
- Checking the Timing Assembly111
- Preparing the Timing Chain Tensioner for Installation111
- Checking the Oil Pressure Regulator Valve112
- Checking the Oil Pumps112
- Checking the Clutch113
- Checking the Shift Mechanism114
- Preassembling the Shift Shaft115
- Dismantling the Main Shaft115
- Dismantling the Countershaft116
- Checking the Transmission117
- Assembling the Main Shaft118
- Assembling the Countershaft118
30/Assembling the Engine120
- Installing the Timing Chain Rails of the Left Engine Case Section120
- Installing the Timing Chain Rails of the Right Engine Case Section120
- Installing the Oil Spray Tube121
- Installing the Transmission Shaft121
- Installing the Middle Suction Pump122
- Installing the Crankshaft122
- Installing the Left Engine Case123
- Installing the Locking Lever124
- Installing the Shift Drum Locating124
- Installing the Shift Shaft124
- Installing the Force Pump125
- Installing the Left Suction Pump126
- Setting the Engine to Ignition Top Dead Center of the Rear Cylinder126
- Installing the Primary Gear127
- Installing the Outer Clutch Hub127
- Installing the Clutch Facing128
- Installing the Idler and Timing Chain on the Right129
- Installing the Clutch Cover129
- Installing the Water Pump Wheel130
- Installing the Gear Position Sensor130
- Installing the Drive Wheel of the Balancer Shaft130
- Installing the Balancer Shaft131
- Installing the Idler and Timing Chain on the Left131
- Installing the Oil Filter132
- Installing the Rotor132
- Installing the Torque Limiter and Idler133
- Installing the Ignition Pulse Generator133
- Installing the Generator Cover133
- Installing the Oil Drain Plug133
- Installing the Rear Piston134
- Installing the Rear Cylinder Head135
- Installing the Rear Camshaft136
- Installing the Rear Timing Chain Tensioner136
- Setting the Engine to Ignition Top Dead Center of the Front Cylinder137
- Installing the Front Piston137
- Installing the Front Cylinder Head139
- Installing the Front Camshafts139
- Installing the Front Timing Chain Tensioner140
- Installing the Heat Exchanger140
- Installing the Oil Filler Tube141
- Installing the Starter Motor141
- Checking the Rear Valve Clearance141
- Adjusting the Rear Valve Clearance142
- Checking the Front Valve Clearance142
- Adjusting the Front Valve Clearance142
- Installing the Front Valve Cover143
- Installing the Rear Valve Cover143
32/Clutch144
- Checking Fluid Level of Hydraulic Clutch144
- Correcting Fluid Level of Hydraulic Clutch144
34/Shift Mechanism145
- Adjusting Shift Lever Stub145
- Adjusting Shift Lever145
35/Water Pump, Cooling System147
- Checking the Coolant Level147
- Checking the Antifreeze147
- Removing the Radiator148
- Installing the Radiator148
- Adding Coolant/Bleeding the Cooling System149
- Filling the Cooling System Compensating Tank150
36/Cylinder Head151
- Checking the Valve Clearance151
- Adjusting the Rear Valve Clearance152
- Adjusting the Front Valve Clearance152
- Removing the Rear Camshaft153
- Installing the Rear Camshaft153
- Removing the Front Camshafts154
- Installing the Front Camshafts154
- Removing the Rear Timing Chain Tensioner154
- Installing the Rear Timing Chain Tensioner155
- Removing the Front Timing Chain Tensioner155
- Installing the Front Timing Chain Tensioner155
38/Lubrication System156
- Oil Circuit156
- Checking Engine Oil Level157
- Changing Engine Oil and Filter, Cleaning Oil Screen157
- Draining Engine Oil, Cleaning Oil Screens157
- Removing Oil Filter159
- Fitting Oil Filter160
- Filling up with Engine Oil160
- Topping up Engine Oil161
Immobilizer Flash Code162
Engine Control Error Code163
Technical Data - Engine165
- Capacity- Engine Oil165
- Capacity - Coolant165
Technical Data - Tolerance, Wear Limits of Engine166
Technical Data - Engine Tightening Torques168
Technical Data - Chassis170
- Lighting Equipment171
- Capacity - Fuel171
Technical Data - Fork172
Technical Data - Shock Absorber173
Technical Data - Chassis Tightening Torques174
Cleaning/Conservation176
- Cleaning Motorcycle176
- Conservation for Winter Operation176
Storage177
- Putting into Operation after Storage177
Greasing and Service Table178
- Important Service Tasks to be Carried out by an Authorized KTM-RC8 Workshop178
- Important Service Tasks to be Carried out by an Authorized KTM-RC8 Workshop. (as Additional Job)179
Wiring Diagram180
- Of 3180
- Of 3184
- Of 3190
Substances194
Auxiliary Substances196
Special Tools197
Standards205
Index206

Brand	KTM
Model	1190 RC8 EU 2008
Category	Motorcycle
Language	English

KTM 1190 RC8 EU 2008 User Manual

Table of Contents

Other manuals for KTM 1190 RC8 EU 2008

Questions and Answers:

KTM 1190 RC8 EU 2008 Specifications

Related product manuals
