30/ASSEMBLING THE ENGINE 141
200310-11
– Remove special tool . Mount and tighten screw .
Guideline
Plug, crankshaft retainer M8 15 Nm
(11.1 lbf ft)

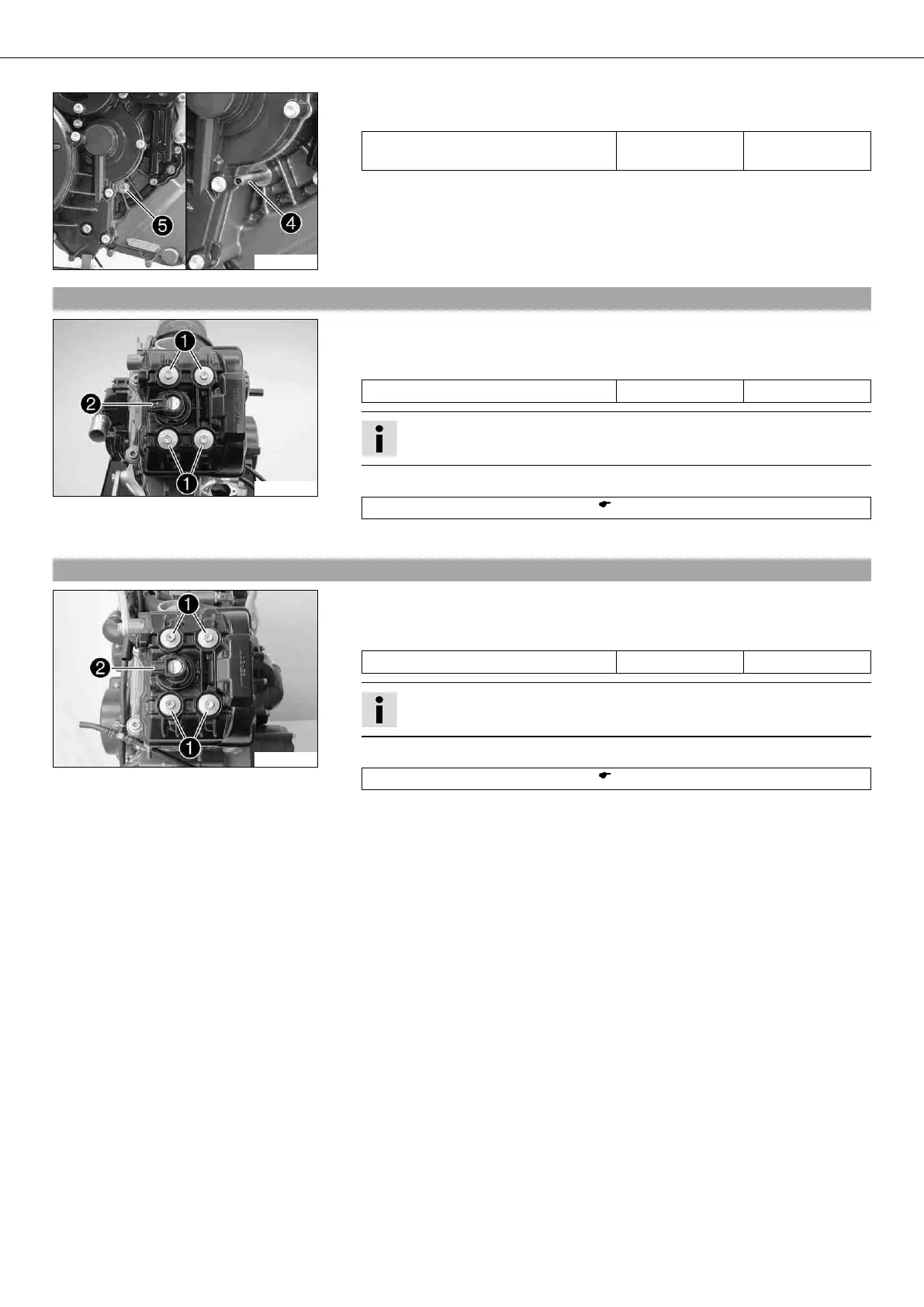

21.46Installing the front valve cover
200324-11
– Position the valve cover seal.
– Put the valve cover in place with the seal. Mount and tighten screws .
Guideline
Screw, valve cover M6 10 Nm (7.4 lbf ft)
Info
The front valve cover is not equipped with a connector for the engine vent.
– Mount and tighten the spark plug using a special tool.
Spark plug wrench (75029172000) ( p. 202)
– Mount ignition coil .
21.47Installing the rear valve cover
200307-11
– Position the valve cover seal.
– Put the valve cover in place with the seal. Mount and tighten screws .
Guideline
Screw, valve cover M6 10 Nm (7.4 lbf ft)
Info
The rear valve cover is equipped with a connector for the engine vent.
– Mount and tighten the spark plug using a special tool.
Spark plug wrench (75029172000) ( p. 202)
– Mount ignition coil .
