Chapter 2:
Connections
CHAPTER 2: CONNECTIONS
This chapter describes the connections on the DPS-475 and DPS-575 used to
interface the unit with other video and audio equipment in your system.

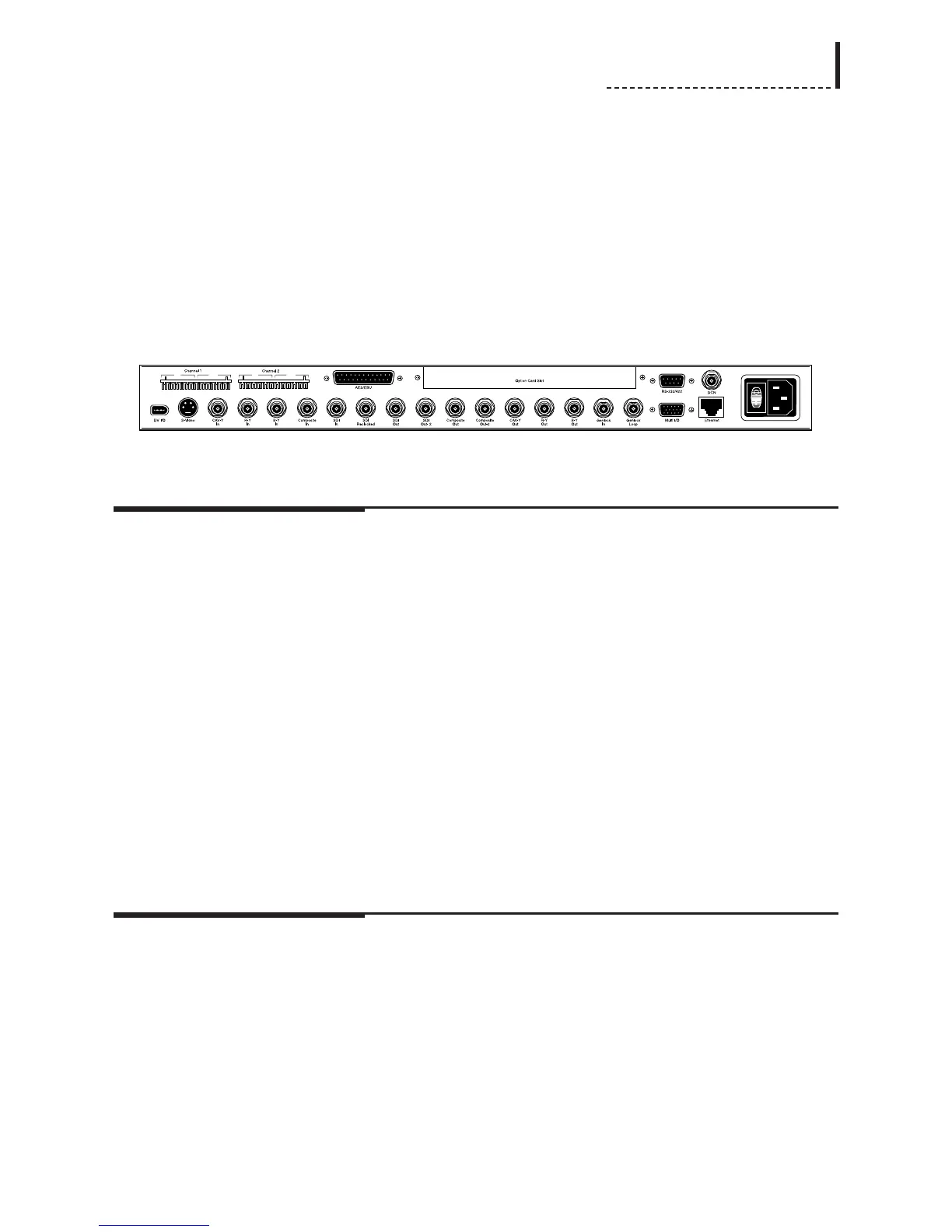

DPS-475AV/575AV: Back Panel
Breakout Cables
Some connections to the DPS-475/575 are provided on the supplied breakout cables.
These breakout cables must be connected to the following ports on the back of the
unit.
Multi-I/O Breakout Cable
This breakout cable, part number 774-753, connects to the DB-15F high-density
connector labeled Multi I/O on the right side of the rear of the unit. This cable
provides connections for RGB output, sync/key/auxiliary-composite output, S-Video
output, and GPI.
AES/EBU Audio Breakout Cable [on audio-equipped units only]
This breakout cable connects to the DB-25F connector labeled AES/EBU on the rear
of the unit. This cable provides connections for AES/EBU audio input and output.
The standard AES/EBU Audio Breakout cable (part number 774-755) provides BNC
connections; an optional Audio Breakout cable, part number 774-470, provides BNC
and XLR connections.
Video Connections
The following are the video connections on the rear of the DPS-475/575, in left-to-
right order, followed by those on the supplied breakout cable.
DV Input/Output
This 6-pin IEEE-1394 connector, labeled DV I/O, is used to connect DV (often
referred to as “Firewire”) devices. In addition to carrying DV video and audio input
and output, this port also provides DV device control, allowing control of the DV
device directly from the DPS-475/575. This connection is active only if the optional
DV I/O Module is installed.
5
L L L R R R L L L R R R
+ - G + - G + - G + - G
In
Out
In Out
L L L R R R L L L R R R
+ - G + - G + - G + - G
Genlock
Loop
