Configuration Example

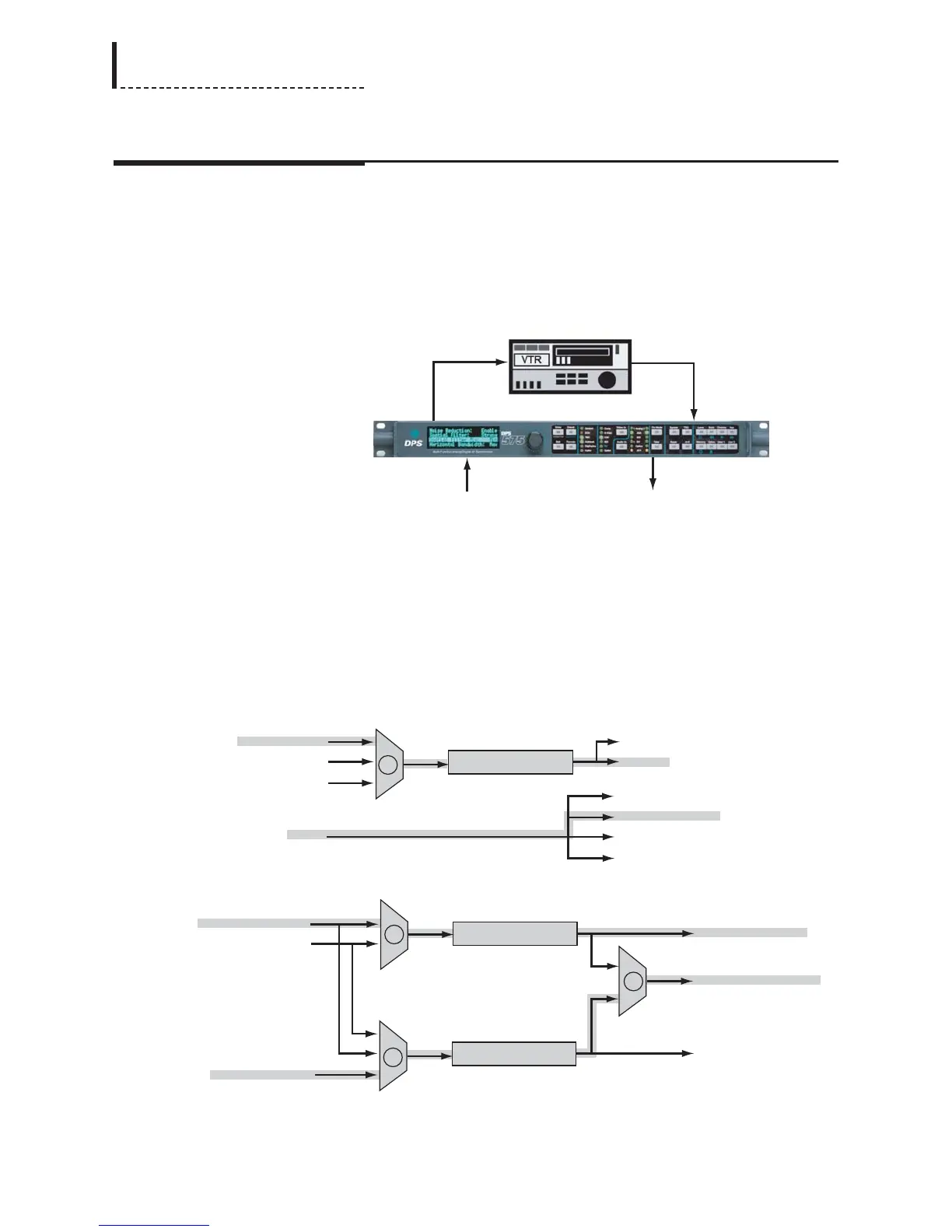

The following example represents one possible application of DigiDuplex mode --
interfacing an analog video tape recorder with a digital routing system. In this
example, the video routing system handles SDI video, while the audio routing system
uses AES/EBU audio; the VTR uses component analog video with analog audio.
The following configuration settings would be used:
Input Source Video Setup menu Component
Input Audio Setup menu Analog
DigiDuplex Mode Video Setup menu On
DigiDuplex Input Audio Setup menu AES/EBU
DDPlex AES/EBU Out Audio Setup menu Sync
With these settings, the signal paths through the DPS-475/575 would be as follows:
212
DPS-475/575 Service Manual
CAV Video
Analog Audio
CAV Video
Analog Audio
SDI Video
AES/EBU Audio
SDI Video
AES/EBU Audio
Analog Audio In
Synchronizer
B
C
SDI Audio In
AES/EBU Audio In
AES/EBU Audio Out
D
SDI Audio Out*
Transcoder
Analog Audio Out
Synchronizer
Component In
Composite In
S-Video In
SDI Out
SDI In
Component Out
Composite Out
S-Video Out
A
(from VTR)
(to audio router)
(from video router)
(to VTR)
(from VTR)
(to VTR)
(from audio router)
(to video router)
RGB(S) Out
DV Out
