Step 2. Remove the EDSFF drive cage cover.

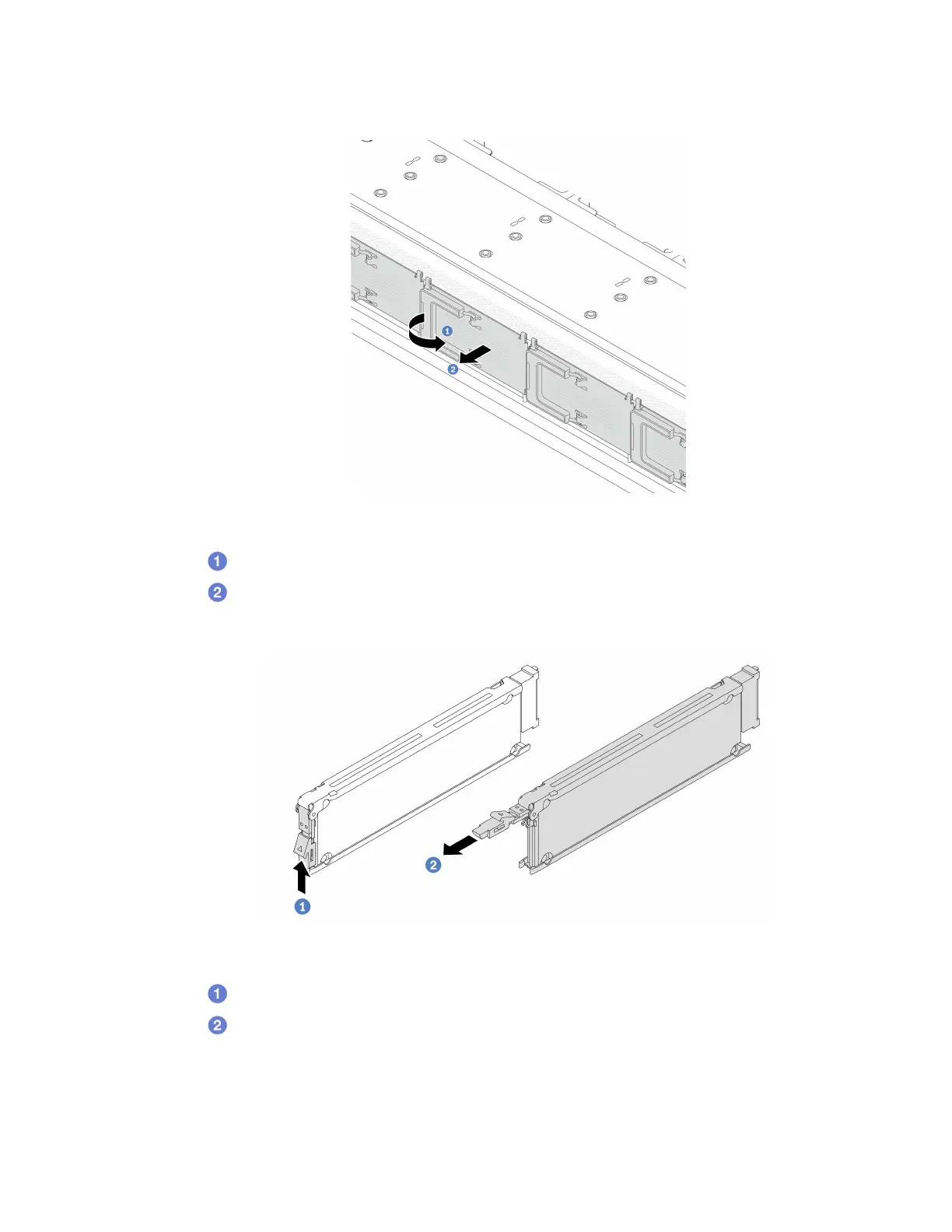

Figure 60. EDSFF drive cage cover removal
a.
Open the handle as shown.
b.
Grasp the handle and remove the drive cage cover.
Step 3. Remove the EDSFF drive.
Figure 61. EDSFF drive removal
a.
Slide the release latch as shown to open the drive tray handle.
b.
Grasp the handle and slide the drive out of the drive bay.
After you finish
1. Install a new drive or a drive cage cover to cover the drive bay. See “Install a hot-swap EDSFF drive” on
page 104.
Chapter 5. Hardware replacement procedures 103
