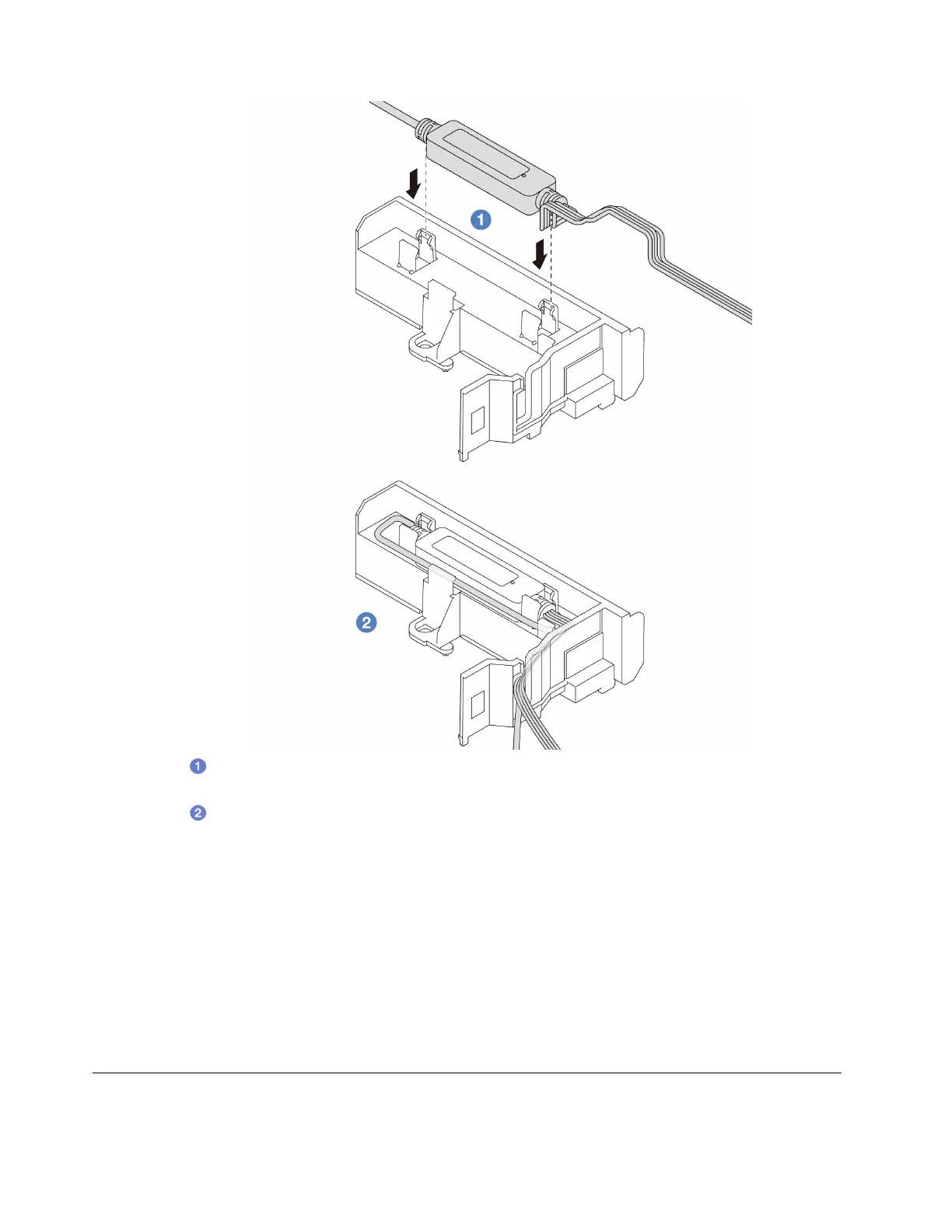

1. Install the LACM into the two clips on the PSU air baffle. Ensure that the module is secured
in place.
2.
After the module is secured, route the cable through the cable clips to keep tidy for later
cable routing arrangements.
Note: For liquid detection sensor module working status, see
“Liquid detection sensor LED” on
page 313
.
Step 8. Connect the pump cable and leak detection cable of the LACM to the connectors on the system
board assembly. See
“Liquid assisted cooling module cable routing” on page 242.
After you finish
1. Install the backplane and the backplane cables if you removed them before. See
“Install the front 2.5-
inch drive backplane” on page 61
and “Power/Sideband cable routing” on page 244.
2. Complete the parts replacement. See
“Complete the parts replacement” on page 215.
