Step 4. Remove the RAID flash power module holder as shown if necessary.

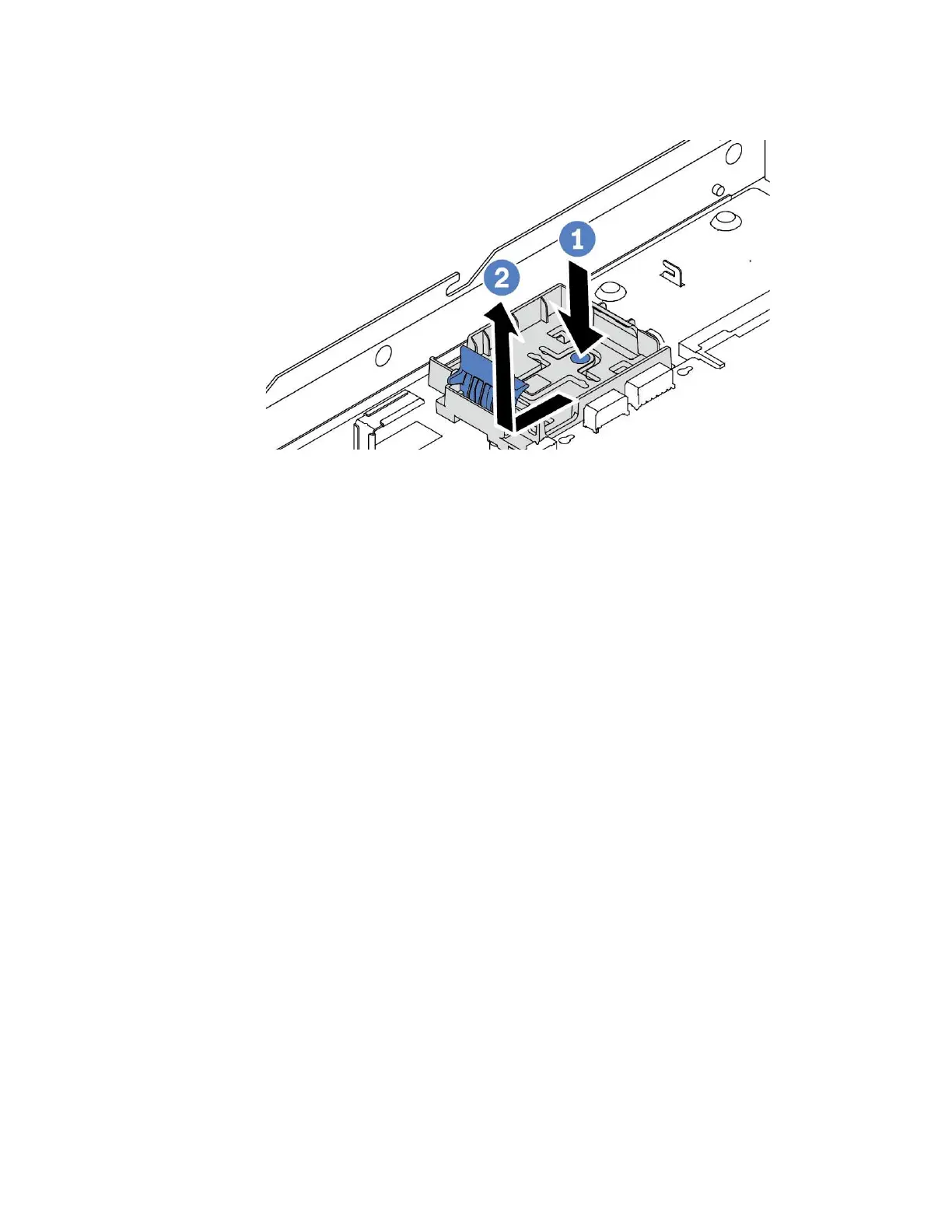

Figure 111. RAID flash power module holder removal
After you finish
If you are instructed to return the old RAID flash power module, follow all packaging instructions and use any
packaging materials that are provided.
Install the RAID flash power module on the system board tray
Use this information to install the RAID flash power module on the system board tray.
About this task
Attention:
• Read
“Installation Guidelines” on page 45 and “Safety inspection checklist” on page 46 to ensure that you
work safely.
• Power off the server and disconnect all power cords for this task.
• Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-
sensitive components in their static-protective packages until installation, and handling these devices with
an electrostatic-discharge wrist strap or other grounding system.
Watch the procedure
A video of this procedure is available at YouTube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-
DrpxDWLMfgtXO4O6BVYTim
.
Procedure
Step 1. Touch the static-protective package that contains the RAID flash power module to any unpainted
surface on the outside of the server. Then, take the RAID flash power module out of the package
and place it on a static-protective surface.
Chapter 5. Hardware replacement procedures 165
To Next Page
