Step 4. Install the RAID flash power module on the system board tray.

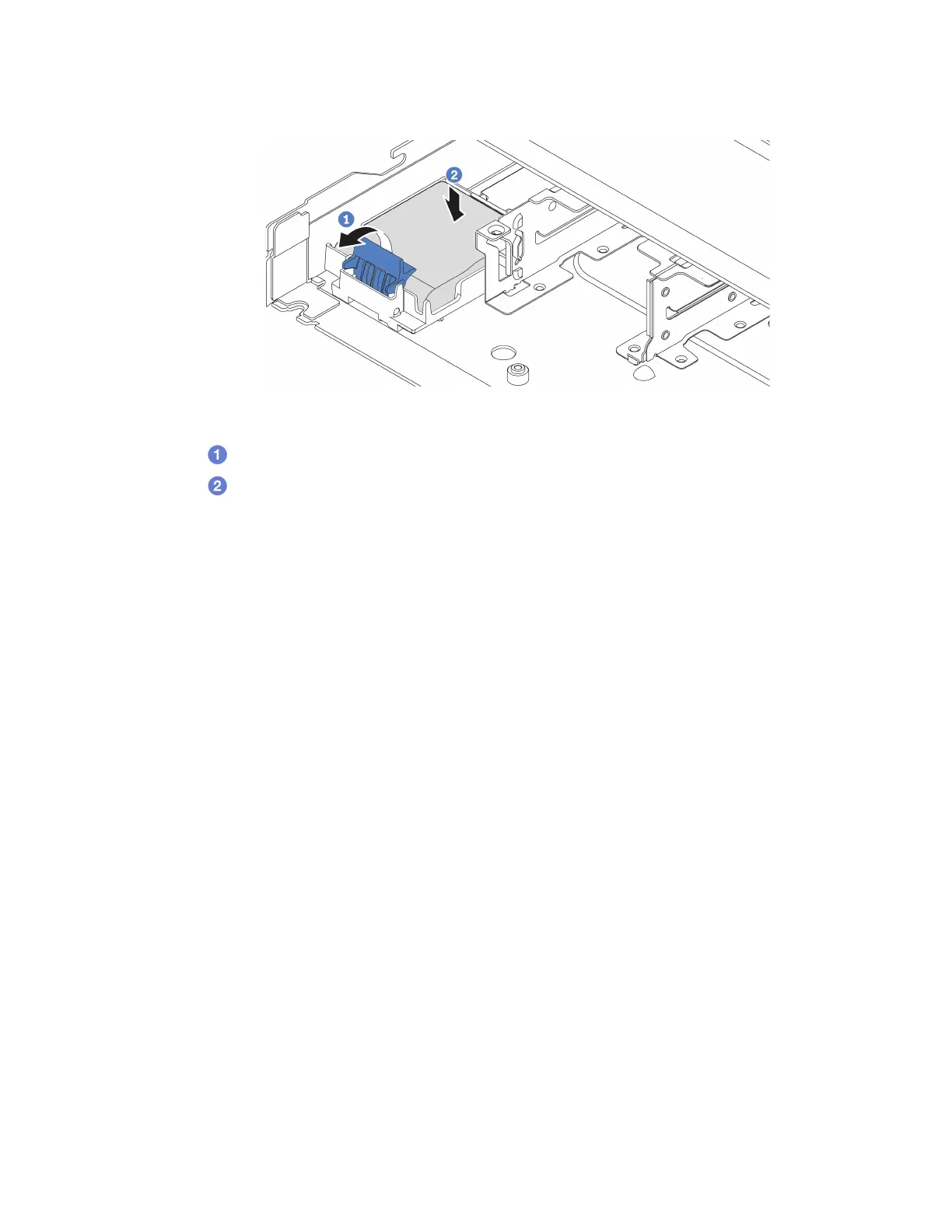

Figure 114. Installation of the RAID flash power module on the system board tray
a.
Open the retention clip on the holder.
b.
Put the RAID flash power module into the holder and press it down to secure it into the
holder.
After you finish
1. Connect the super capacitor module to an adapter with the extension cable that comes with the flash
power module. See
“RAID flash power modules” on page 227.
2. Complete the parts replacement. See
“Complete the parts replacement” on page 215.
Remove the RAID flash power module on the riser
Use this information to remove the RAID flash power module on the riser.
About this task
Attention:
• Read
“Installation Guidelines” on page 45 and “Safety inspection checklist” on page 46 to ensure that you
work safely.
• Power off the server and disconnect all power cords for this task.
• Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-
sensitive components in their static-protective packages until installation, and handling these devices with
an electrostatic-discharge wrist strap or other grounding system.
Watch the procedure
A video of this procedure is available at YouTube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-
DrpxDWLMfgtXO4O6BVYTim
.
Procedure
Step 1. Remove the top cover. See
“Remove the top cover” on page 212.
Step 2. Disconnect the cable of the RAID flash power module.
Step 3. Remove the riser assembly. See
“Remove a riser card” on page 178.
Chapter 5. Hardware replacement procedures 167
