Step 4. Remove the RAID flash power module from the riser.

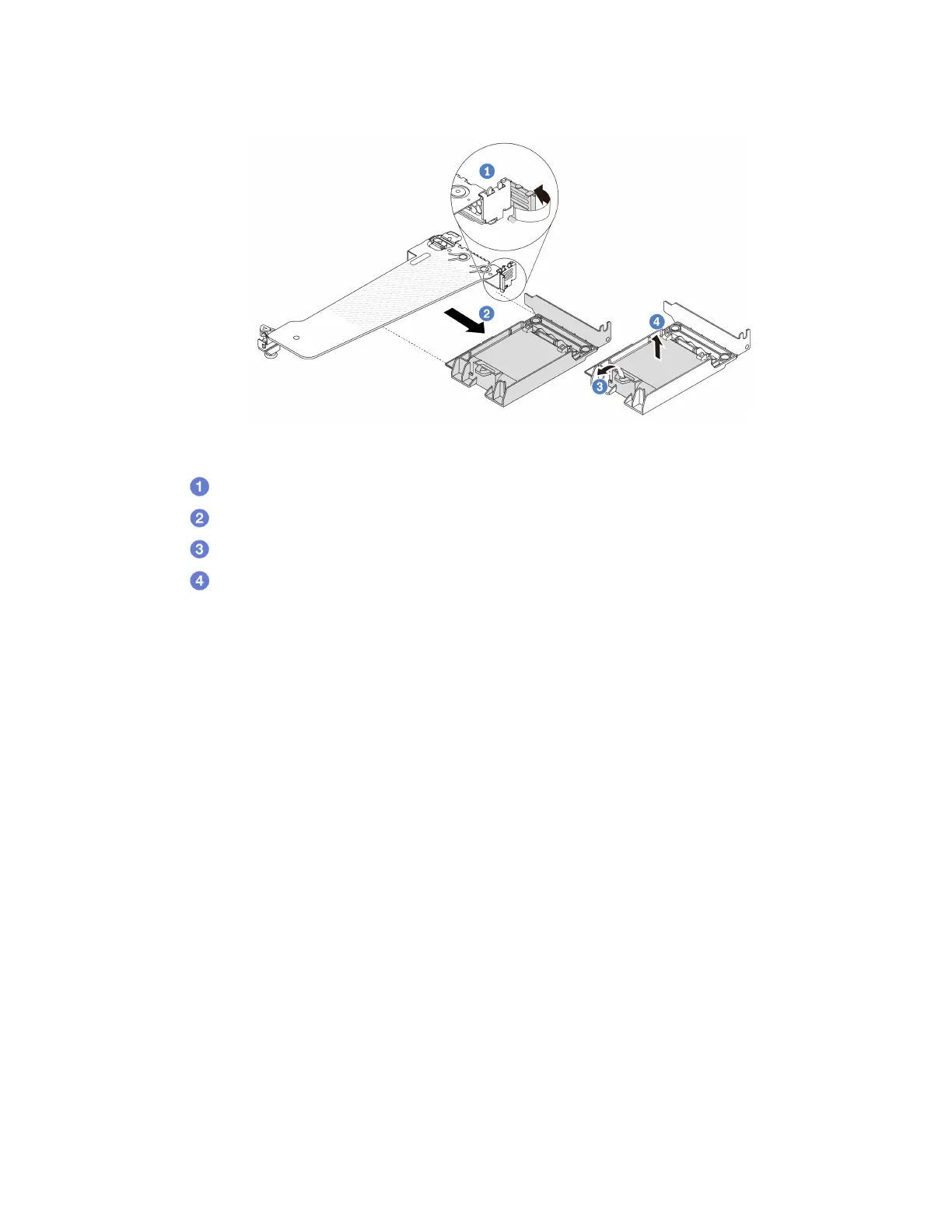

Figure 115. Removal of the RAID super capacitor assembly from the riser
a.
Rotate the latch on the riser bracket to the open position.
b.
Remove the RAID flash power assembly from the riser.
c.
Open the retention clip on the holder of the RAID flash power module.
d.
Take the RAID flash power module out of the holder.
After you finish
If you are instructed to return the old RAID flash power module, follow all packaging instructions and use any
packaging materials that are provided.
Install the RAID flash power module on the riser
Use this information to install the RAID flash power module on the riser.
About this task
Attention:
• Read
“Installation Guidelines” on page 45 and “Safety inspection checklist” on page 46 to ensure that you
work safely.
• Power off the server and disconnect all power cords for this task.
• Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-
sensitive components in their static-protective packages until installation, and handling these devices with
an electrostatic-discharge wrist strap or other grounding system.
Watch the procedure
A video of this procedure is available at YouTube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-
DrpxDWLMfgtXO4O6BVYTim
.
Procedure
