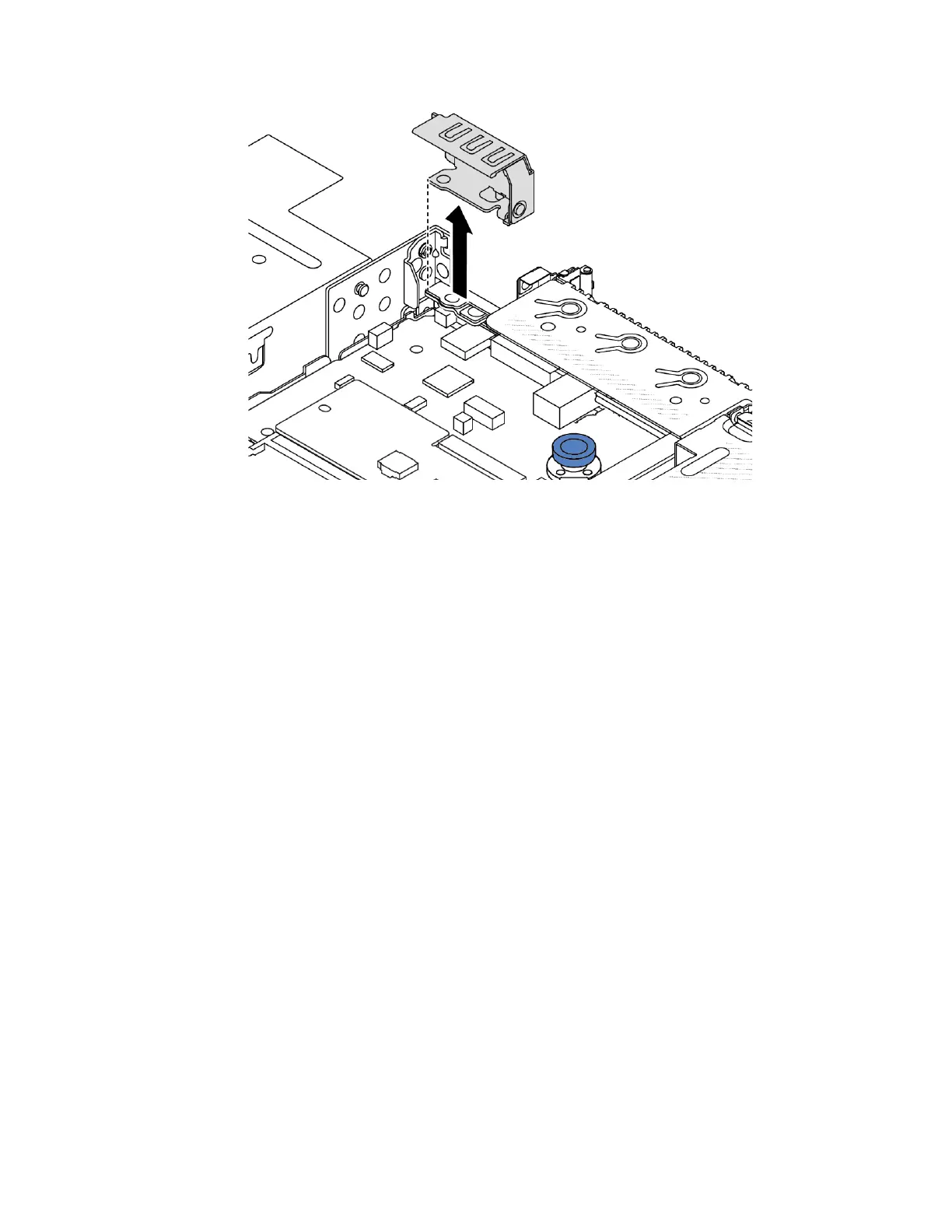

Figure 128. Rear wall bracket removal
Install a riser card
Use this information to install a riser card.
About this task
The riser assembly you want to install might be different from the following illustrations, but the installation
method is the same. The following takes the LPFH riser assembly as an example.
Attention:
• Read
“Installation Guidelines” on page 45 and “Safety inspection checklist” on page 46 to ensure that you
work safely.
• Power off the server and disconnect all power cords for this task.
• Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-
sensitive components in their static-protective packages until installation, and handling these devices with
an electrostatic-discharge wrist strap or other grounding system.
Watch the procedure
A video of this procedure is available at YouTube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-
DrpxDWLMfgtXO4O6BVYTim
.
Procedure
Step 1. Touch the static-protective package that contains the riser card to any unpainted surface on the
outside of the server. Then, take the riser card out of the package and place it on a static-protective
surface.
