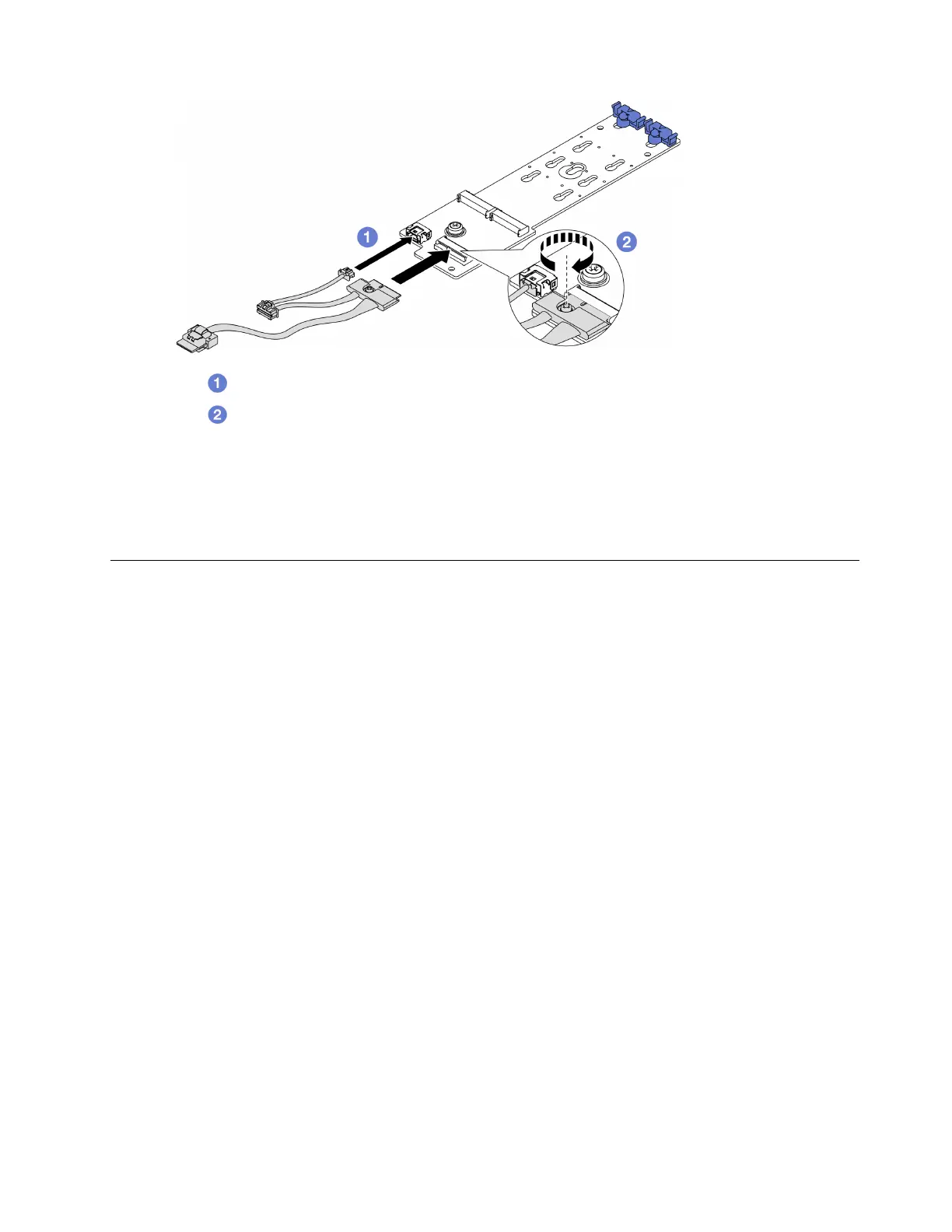

a. Connect the M.2 cable to the backplane.
b.
Tighten the captive screw to secure the M.2 cable to the adapter.
After you finish
1. Complete the parts replacement. See
“Complete the parts replacement” on page 215.
2. Use the Lenovo XClarity Provisioning Manager to configure the RAID. For more information, see:
https://sysmgt.lenovofiles.com/help/topic/lxpm_frontend/lxpm_product_page.html
MicroSD card replacement
Follow the instructions in this section to remove and install the MicroSD card.
Remove the MicroSD card
Follow the instructions in this section to remove the MicroSD card.
About this task
Attention:
Read
“Installation Guidelines” on page 45 and “Safety inspection checklist” on page 46 to ensure that you
work safely.
Power off the server and disconnect all power cords for this task.
Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-
sensitive components in their static-protective packages until installation, and handling these devices with
an electrostatic-discharge wrist strap or other grounding system.
Procedure
Step 1. Make preparations for this task.
a. If the server is installed in a rack, slide the server out on its rack slide rails to gain access to the
top cover, or remove the server from the rack. See
“Remove the server from rack” on page 91.
b. Remove the top cover. See
“Remove the top cover” on page 212.
c. If your server comes with a rear drive assembly, remove it first. See
“Remove the 2.5-inch rear
drive assembly” on page 169
.
d. If your server comes with a 7mm rear drive assembly, remove it first. See
“Remove the 7mm
rear drive assembly” on page 174.
Chapter 5. Hardware replacement procedures 135
