e. Record where the cables are connected to the system board assembly; then, disconnect all
the cables.
Attention: Disengage all latches, cable clips, release tabs, or locks on cable connectors
beforehand. Failing to release them before removing the cables will damage the cable
connectors on the system board assembly. Any damage to the cable connectors may require
replacing the system board assembly.
Step 2. Remove the MicroSD card.

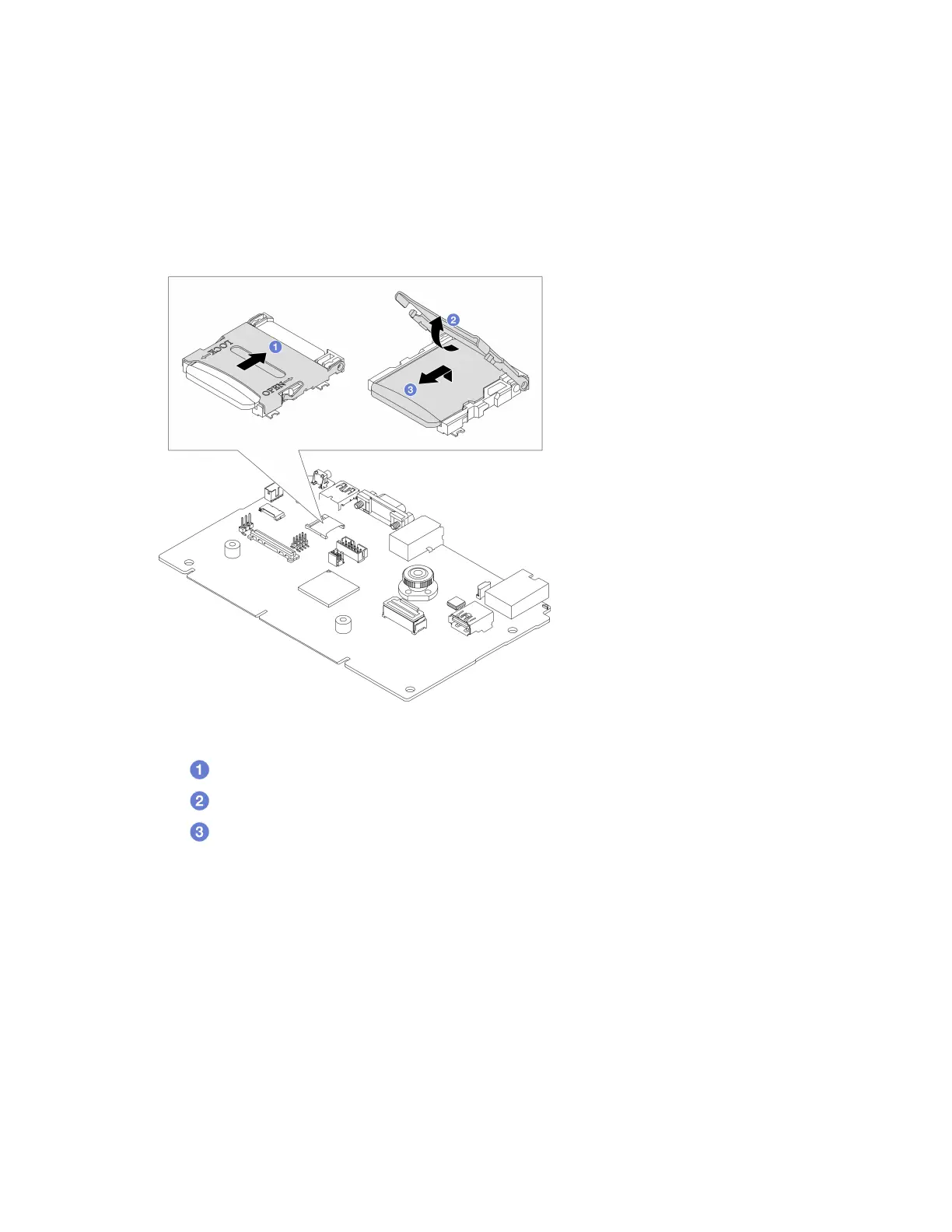

Figure 83. Removing MicroSD card
a.
Slide the socket lid to the open position.
b.
Lift open the socket lid.
c.
Remove the MicroSD card from the socket.
Notes:
• If replacing with a new MicroSD card, the firmware historical data and user data stored in the
defective MicroSD card would be lost. After a new MicroSD card is installed, subsequent
firmware update history will be saved to the new card.
• To update firmware, refer to “Updating Server Firmware” section in
Lenovo XClarity Controller 2.
After you finish
1. Install a replacement unit. See “Install the MicroSD card” on page 137.
2. If you are instructed to return the old RAID flash power module, follow all packaging instructions and use
any packaging materials that are provided.
