Table 27. Types of riser bracket (continued)

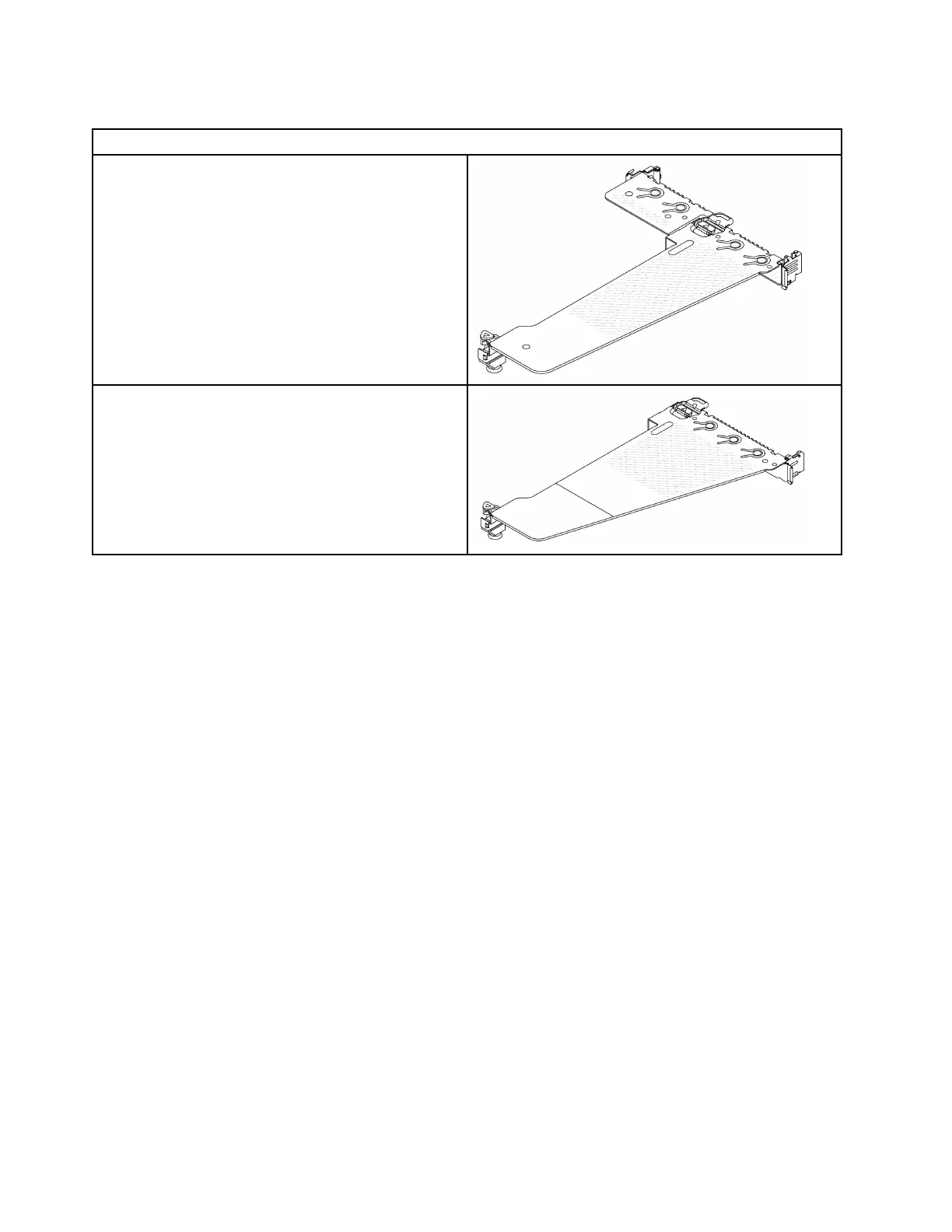

The overview of riser brackets
Low profile-low profile (LP-LP)
Full height (FH)
The removal or installation procedure of the riser card is similar to that of all types of riser assembly. The
following takes the LP-FH riser assembly as an example.
Remove a riser card
Use this information to remove a riser card.
About this task
The riser assembly you want to remove might be different from the following illustrations, but the removal
method is the same. The following takes the LP-FH riser assembly as an example.
Attention:
• Read
“Installation Guidelines” on page 45 and “Safety inspection checklist” on page 46 to ensure that you
work safely.
• Power off the server and disconnect all power cords for this task.
• Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-
sensitive components in their static-protective packages until installation, and handling these devices with
an electrostatic-discharge wrist strap or other grounding system.
Watch the procedure
A video of this procedure is available at YouTube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-
DrpxDWLMfgtXO4O6BVYTim
.
Procedure
Step 1. Remove the top cover. See
“Remove the top cover” on page 212.
