Step 2. If there is any PCIe adapter installed on the riser card, record the cable connections first. Then,
disconnect all cables from the PCIe adapter.
Step 3. Press the two latches on both ends at the same time, and carefully lift it out of the chassis by the
two latches.

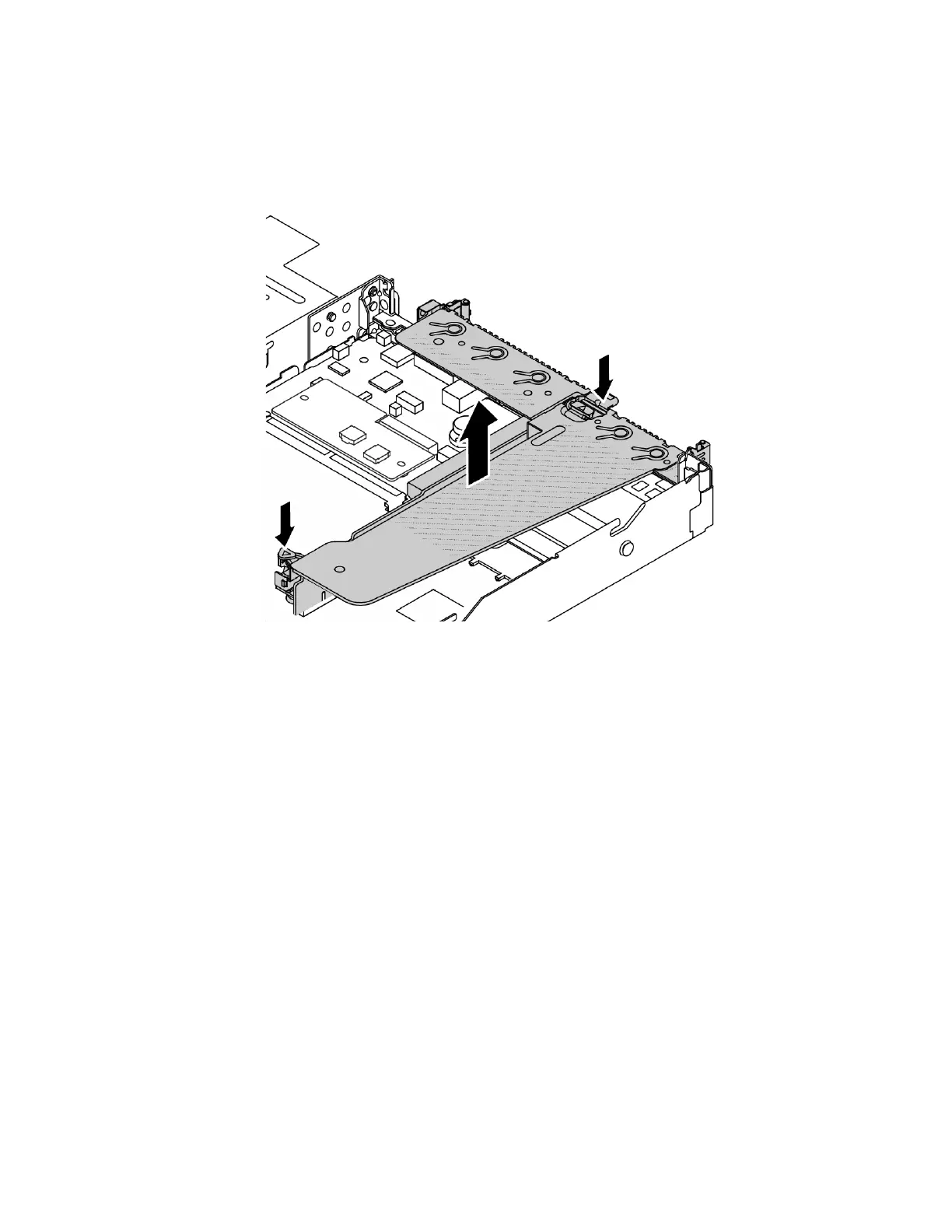

Figure 126. Riser assembly removal
Step 4. If necessary, remove the PCIe adapters that are installed on the riser card. See “Remove a PCIe
adapter” on page 140
.
Chapter 5. Hardware replacement procedures 179
