Cable routing with a CFF HBA/RAID adapter

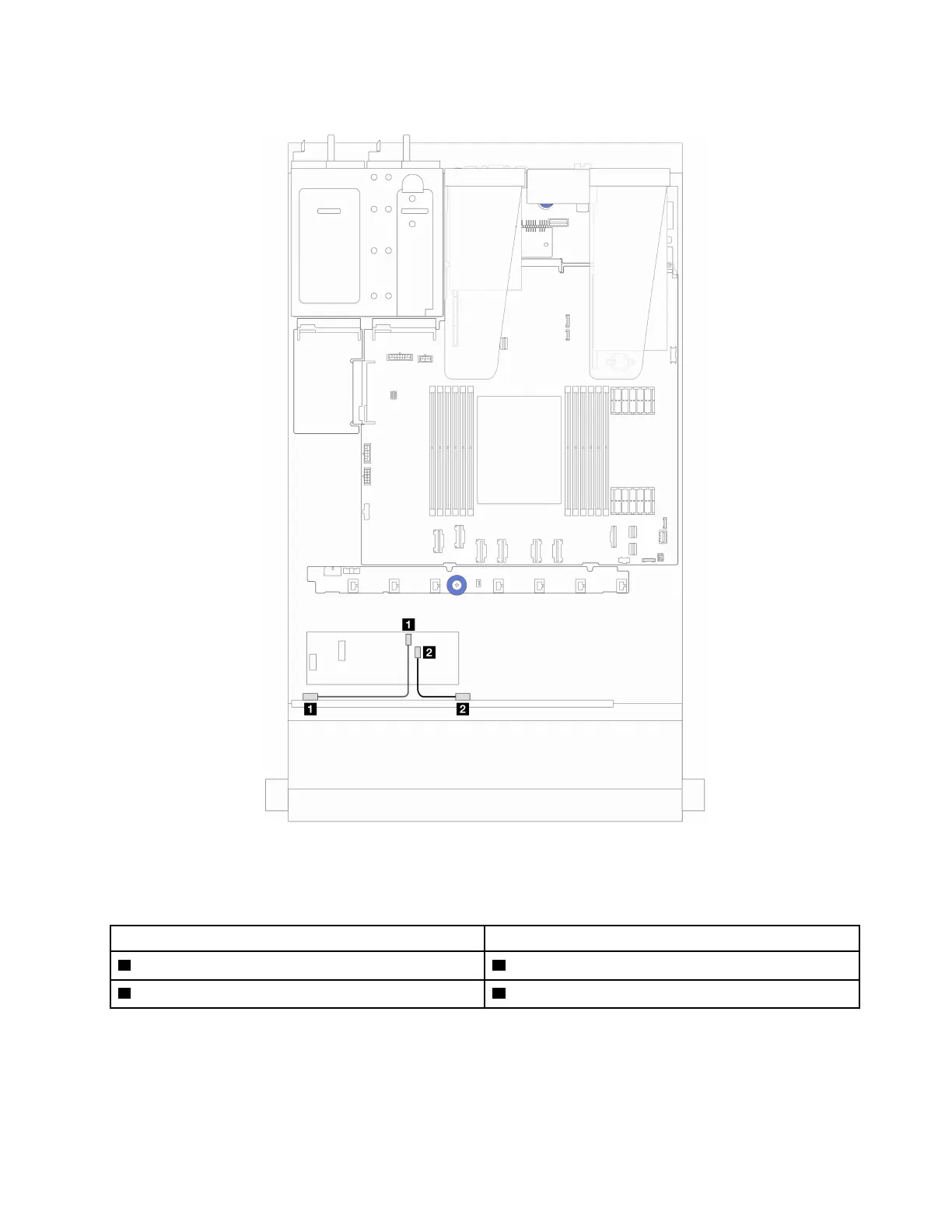

Figure 208. Cable routing for 6 SAS/SATA drives and 2 AnyBay drives and 2 NVMe front drive bays with an 8i CFF RAID
adapter (Gen 3)
Table 49. Mapping between one front AnyBay backplane and an 8i CFF HBA/RAID adapter
From To
1 SAS 0 on the front backplane 1 C0 on the CFF RAID/HBA adapter
2 SAS 1 on the front backplane 2 C1 on the CFF RAID/HBA adapter
16-EDSFF drive backplane cable routing
Use this section to understand the backplane cable routing for the server model with 16 E1.S EDSFF front
drives.
Chapter 6. Internal cable routing 279
