Lenovo ThinkSystem SR635 V3 - Page 228

• “8 x 2.5-inch SAS/SATA backplane” on page 219
• “4 x 2.5-inch SAS/SATA/NVMe/AnyBay backplane” on page 219
• “16 x EDSFF backplane” on page 220
• “Rear 7mm SAS/SATA/NVMe backplane” on page 220
• “Rear 2 x 2.5-inch SAS/SATA/NVMe backplane” on page 221
• “M.2 drive backplane” on page 221

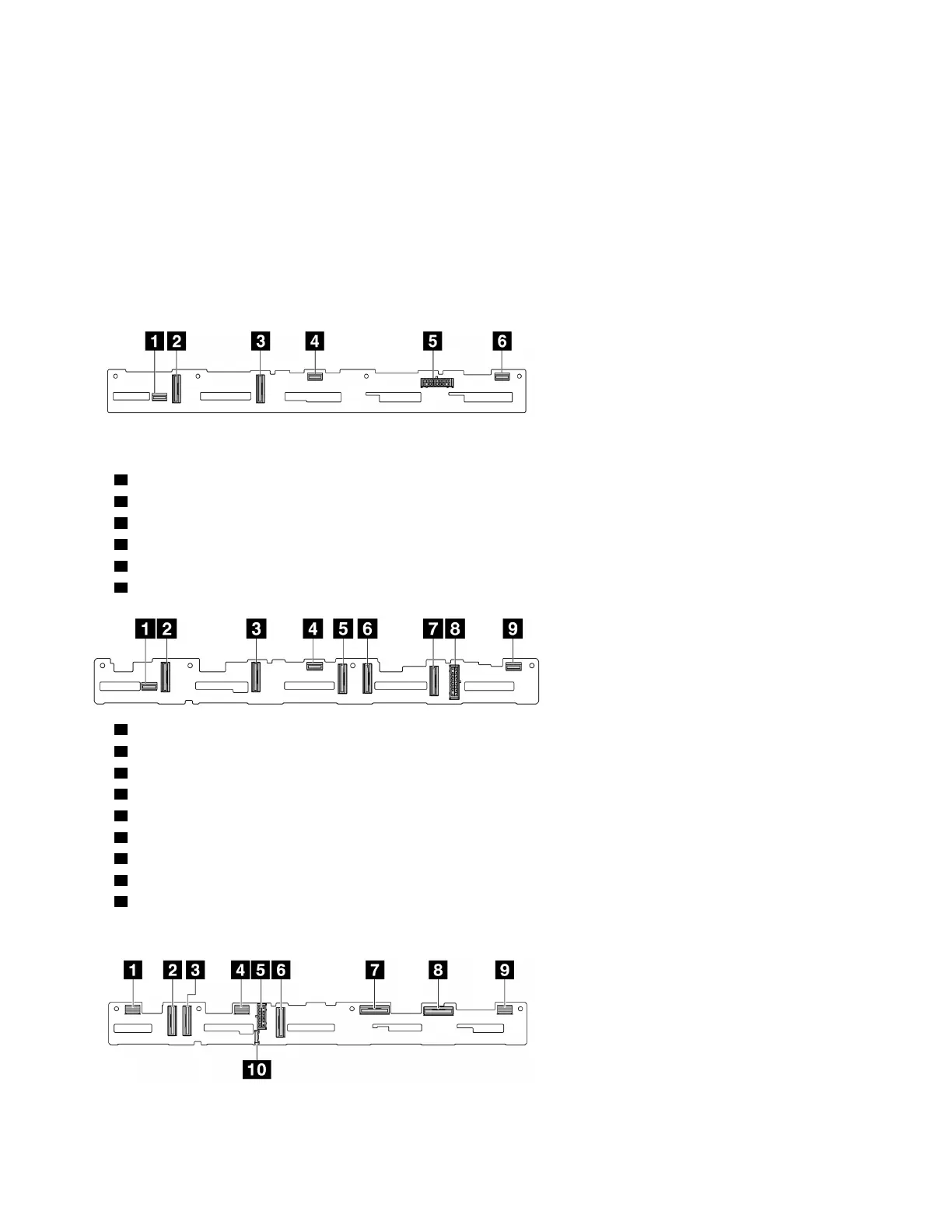

10 x 2.5-inch SAS/SATA/AnyBay backplane
See this section to locate the connectors on the 10 x 2.5-inch drive backplane.
Figure 155. 6 x SAS/SATA + 4 x Anybay backplane
1 SAS 2
2 NVMe 2–3
3 NVMe 0–1
4 SAS 1
5 Power
6 SAS 0
1 SAS 2
2 NVMe 8–9
3 NVMe 6–7
4 SAS 1
5 NVMe 4–5
6 NVMe 2–3
7 NVMe 0–1
8 Power
9 SAS 0
Figure 156. 10 x 2.5 AnyBay backplane (Gen 4)
Figure 157. 10 x 2.5 AnyBay backplane (Gen 5)
218 ThinkSystem SR635 V3 User Guide
