Rear 2 x 2.5'' NVMe drive backplane

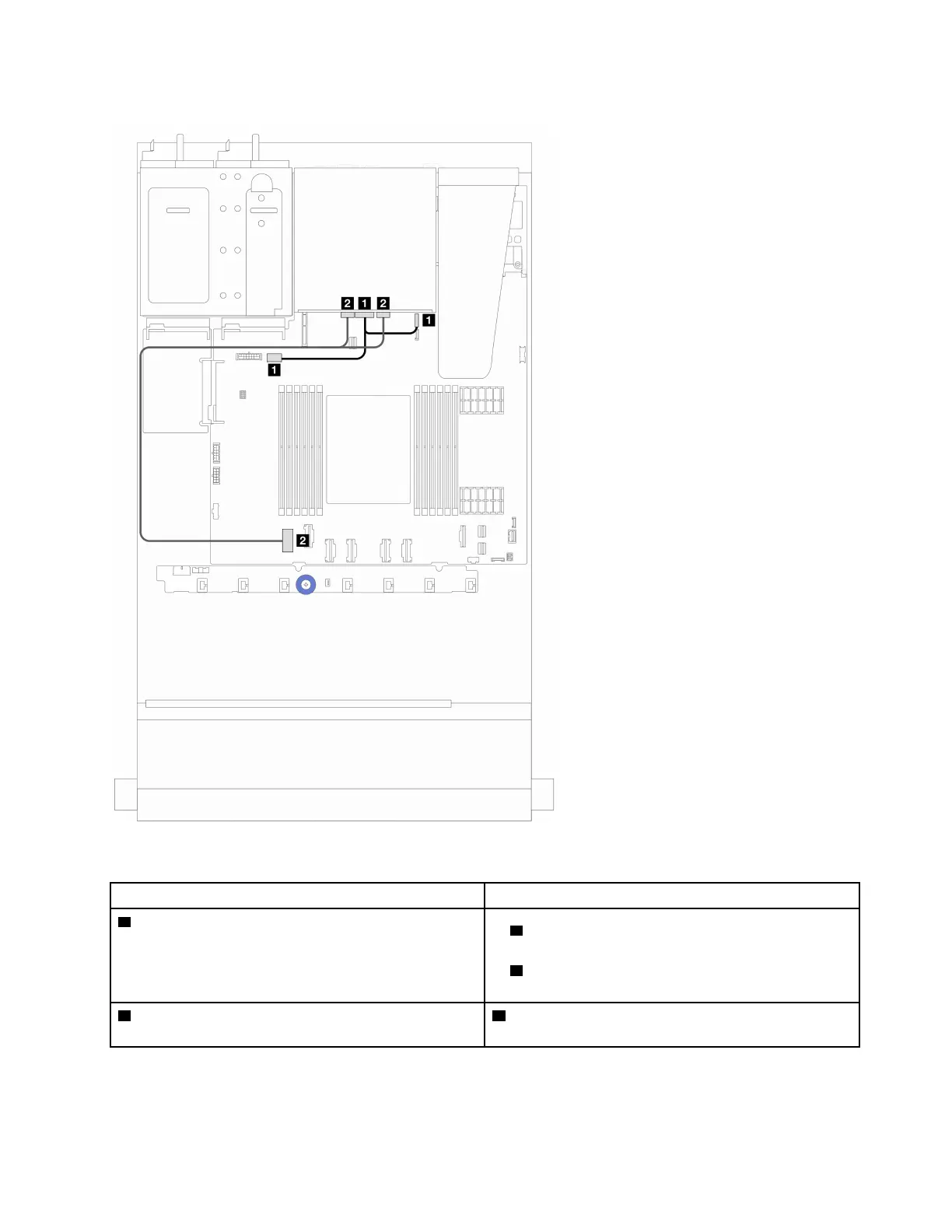

Figure 175. Rear 2 x 2.5'' NVMe drive backplane cable routing
From To
1 Power connector on the rear backplane
•
1 Left: GPU/7mm/Rear backplane power connector
on the system board assembly
•
1 Right: 7mm/Rear backplane sideband connector on
the system board assembly
2 NVMe 0 connector and NVMe 1 connector on the rear
backplane
2 PCIe connector 1 on the system board assembly
Chapter 6. Internal cable routing 233
