From To
1 Power connector on the 7mm drive backplane
•
1 Left: GPU/7mm/Rear backplane power connector on
the system board assembly
•
1 Right: 7mm/Rear backplane sideband connector on
the system board assembly
2 Signal port on the 7mm drive backplane 2 PCIe connector 9 on the system board assembly

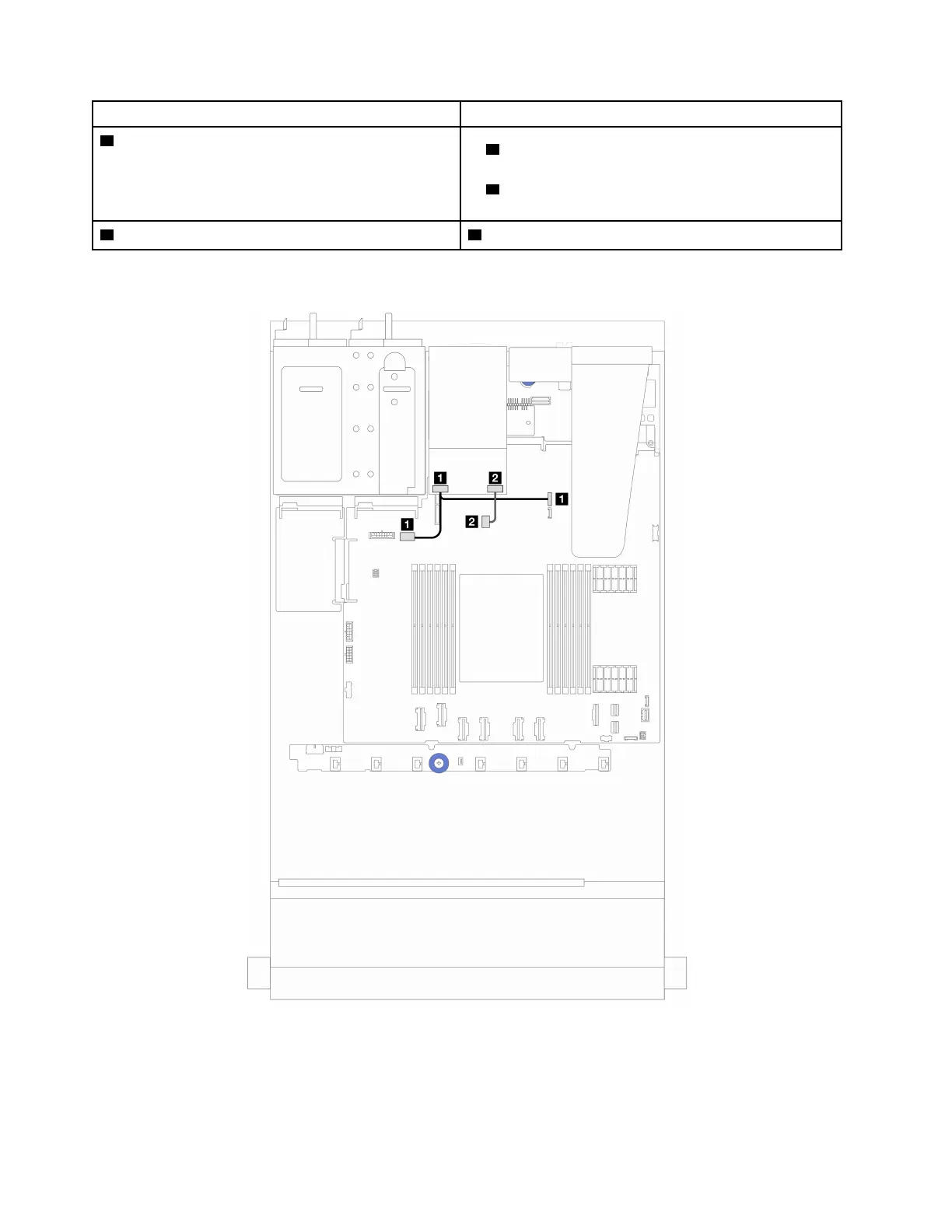

Figure 178. Cable routing for 7mm NVMe drives
236 ThinkSystem SR635 V3 User Guide
