Lenovo ThinkSystem SR635 V3 - 6 x 2.5 SAS;SATA + 4 x 2.5 AnyBay; 6 x 2.5 SAS;SATA + 2 x 2.5 AnyBay + 2 x 2.5 NVMe

From To

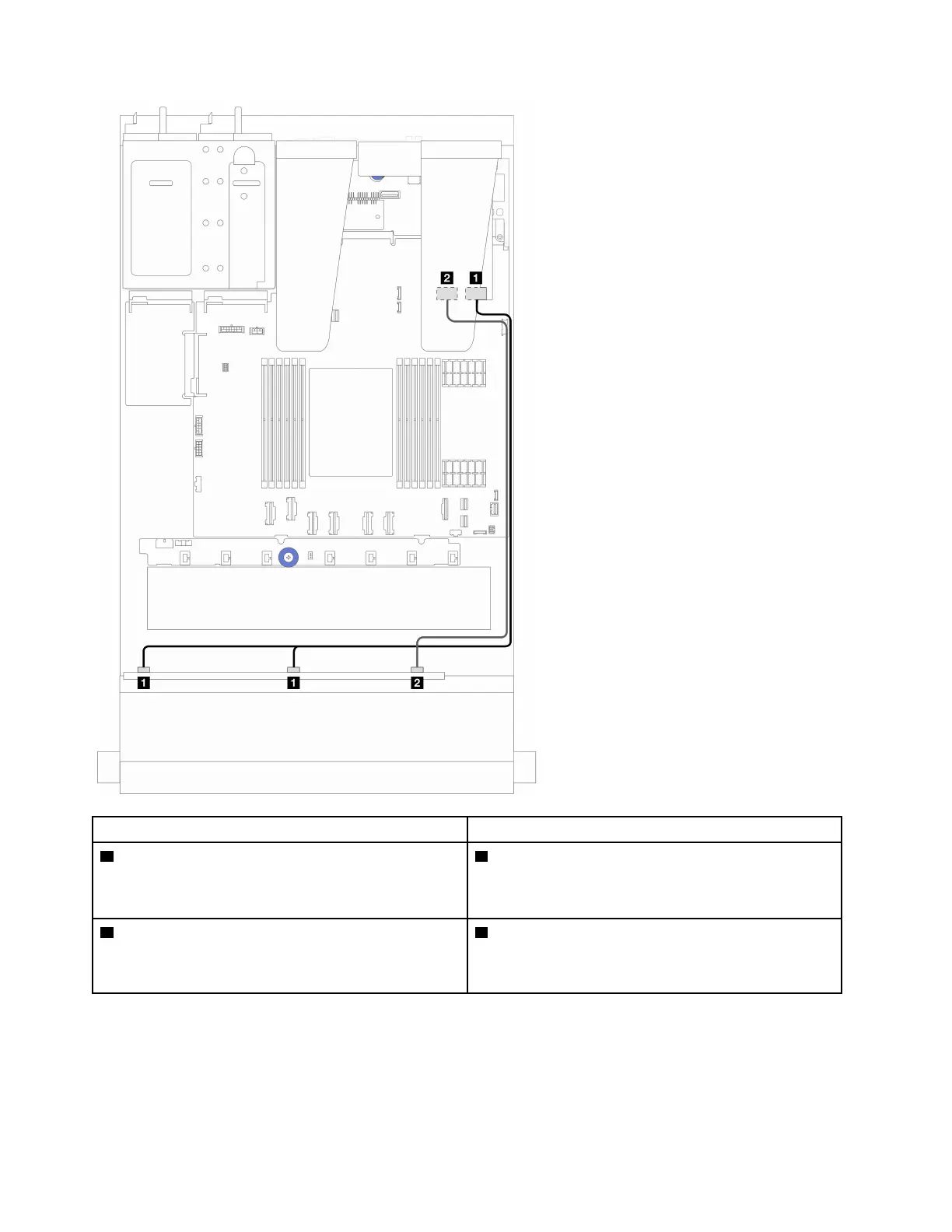

1 SAS 0 and SAS 1 on the front backplane 1 SFF RAID/HBA adapter
• Gen 4: C0
• Gen 3: C0, C1
2 SAS 2 on the front backplane 2 SFF RAID/HBA adapter
• Gen 4: C1
• Gen 3: C2
6 x 2.5'' SAS/SATA + 4 x 2.5'' AnyBay
See this section to understand the cable routing of 6 front SAS/SATA drives and 4 front AnyBay drives with 6
x 2.5'' SAS/SATA + 4 x 2.5'' AnyBay backplane installed.
• For the locations of connectors on the processor board, refer to
“System-board-assembly connectors” on
page 33.
