Lenovo ThinkSystem SR635 V3 - Page 30

Table 6. Components on the front of the server
Callout Callout
1 Diagnostics panel
2 USB 3.1 Gen 1 (5Gbps) connector
3 External LCD connector 4 XClarity Controller USB connector
5 VGA connector (optional) 6 Rack latch (right)
7 Pull-out information tab
8 Drive filler (1)
9 Drive bays (16) 10 Rack latch (left)
Note: For more information about each component, see “Front components overview” on page 22.
Server model with 2.5-inch drive bays (backplane-less)

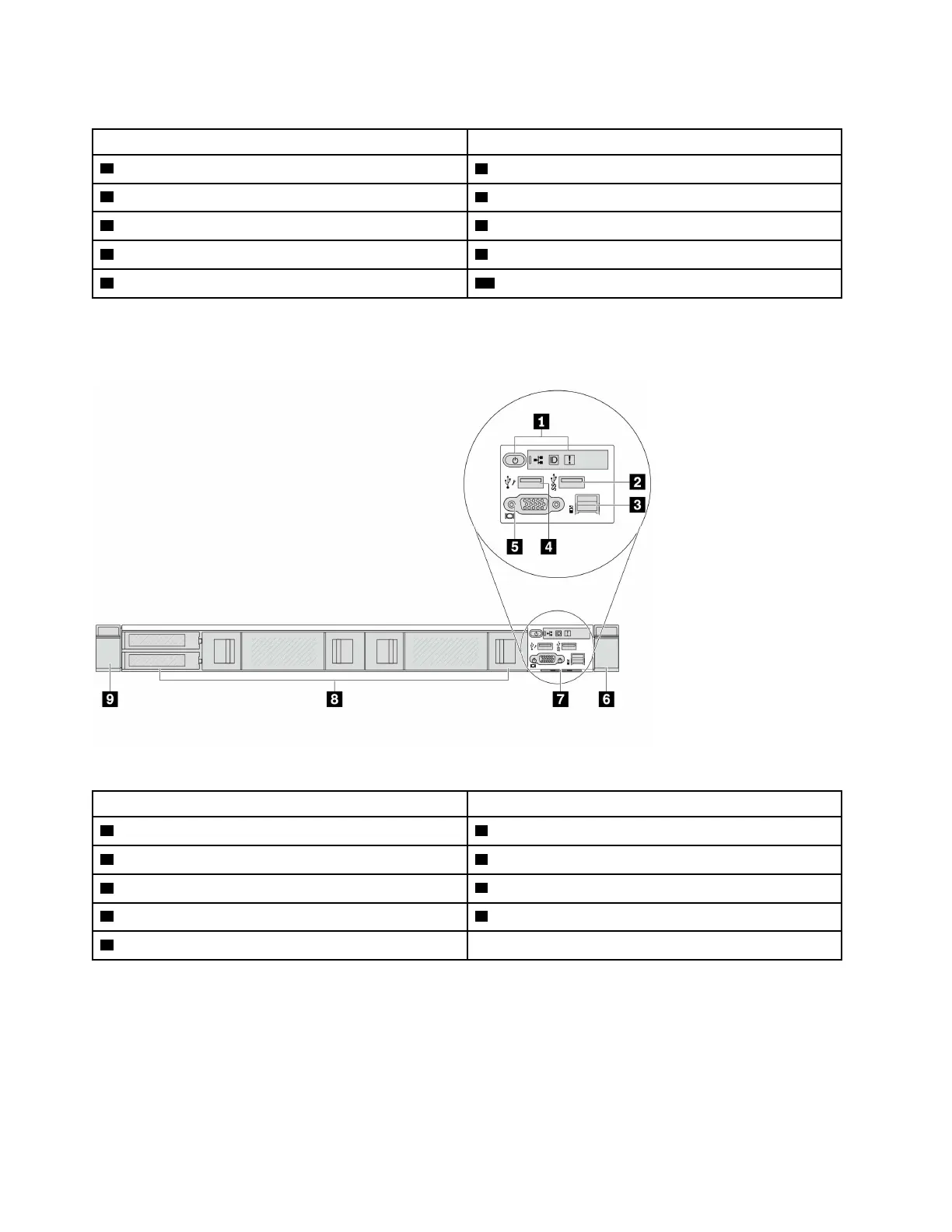

Table 7. Components on the front of the server
Callout Callout
1 Diagnostics panel
2 USB 3.1 Gen 1 (5Gbps) connector
3 External LCD connector (reserved) 4 XClarity Controller USB connector
5 VGA connector (optional) 6 Rack latch (right)
7 Pull-out information tab
8 Drive fillers (4)
9 Rack latch (left)
Note: For more information about each component, see
“Front components overview” on page 22.
20
ThinkSystem SR635 V3 User Guide
