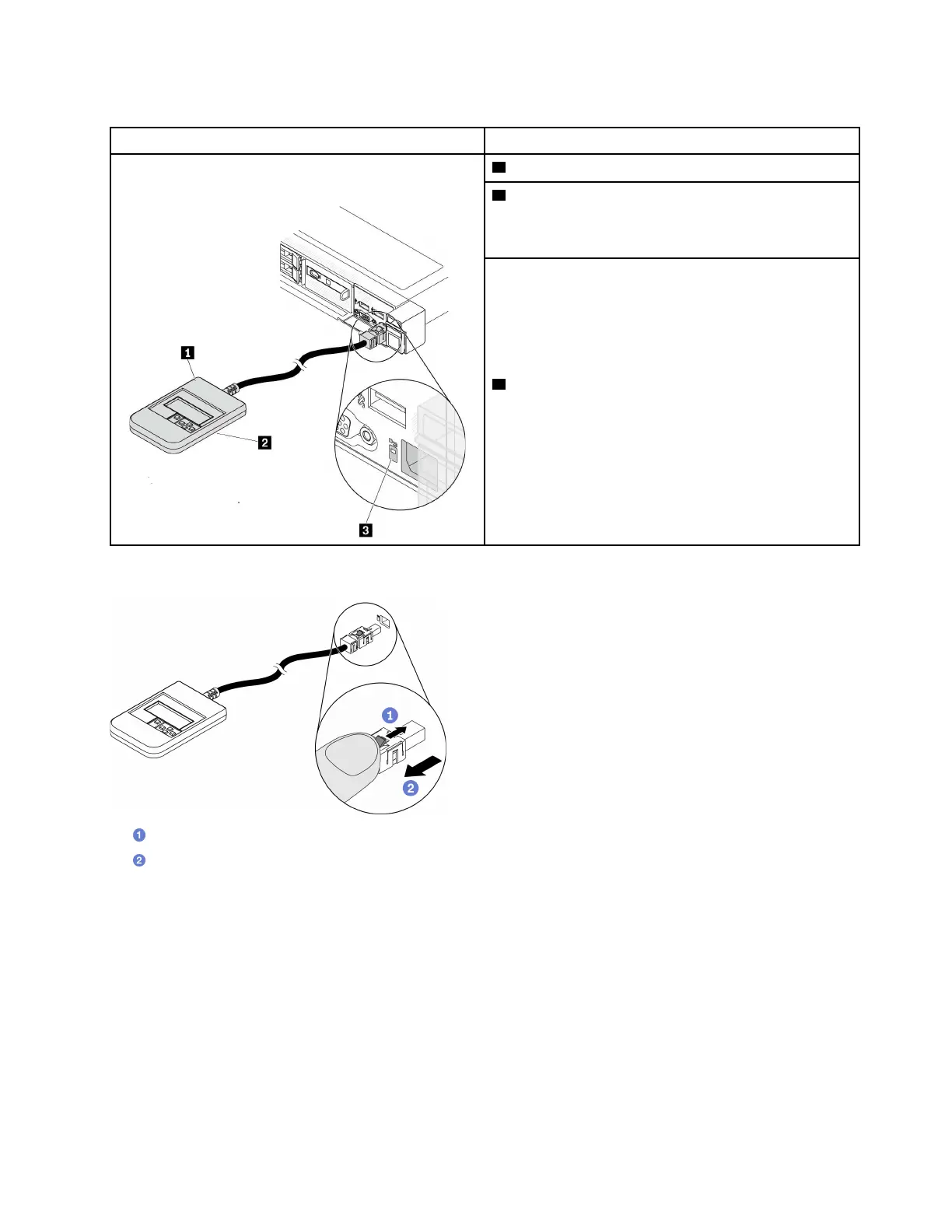

Location of the External Diagnostics Handset
Location Callouts
The External Diagnostics Handset is connected to the
server with an external cable.
1 External Diagnostics Handset
2 Magnetic bottom
With this component, the diagnostic handset can be
attached to the top or side of the rack with hands spared
for service tasks.
3 External diagnostics connector
This connector is located on the front of the server, and is
used to connect an External Diagnostics Handset.
Note: When unplugging the External Diagnostics Handset, see the following instructions:
Press the plastic clip on the plug forward.
Hold the clip and remove the cable from the connector.
Display panel overview
The diagnostics device consists of an LCD display and 5 navigation buttons.
Chapter 8. Problem determination 301
