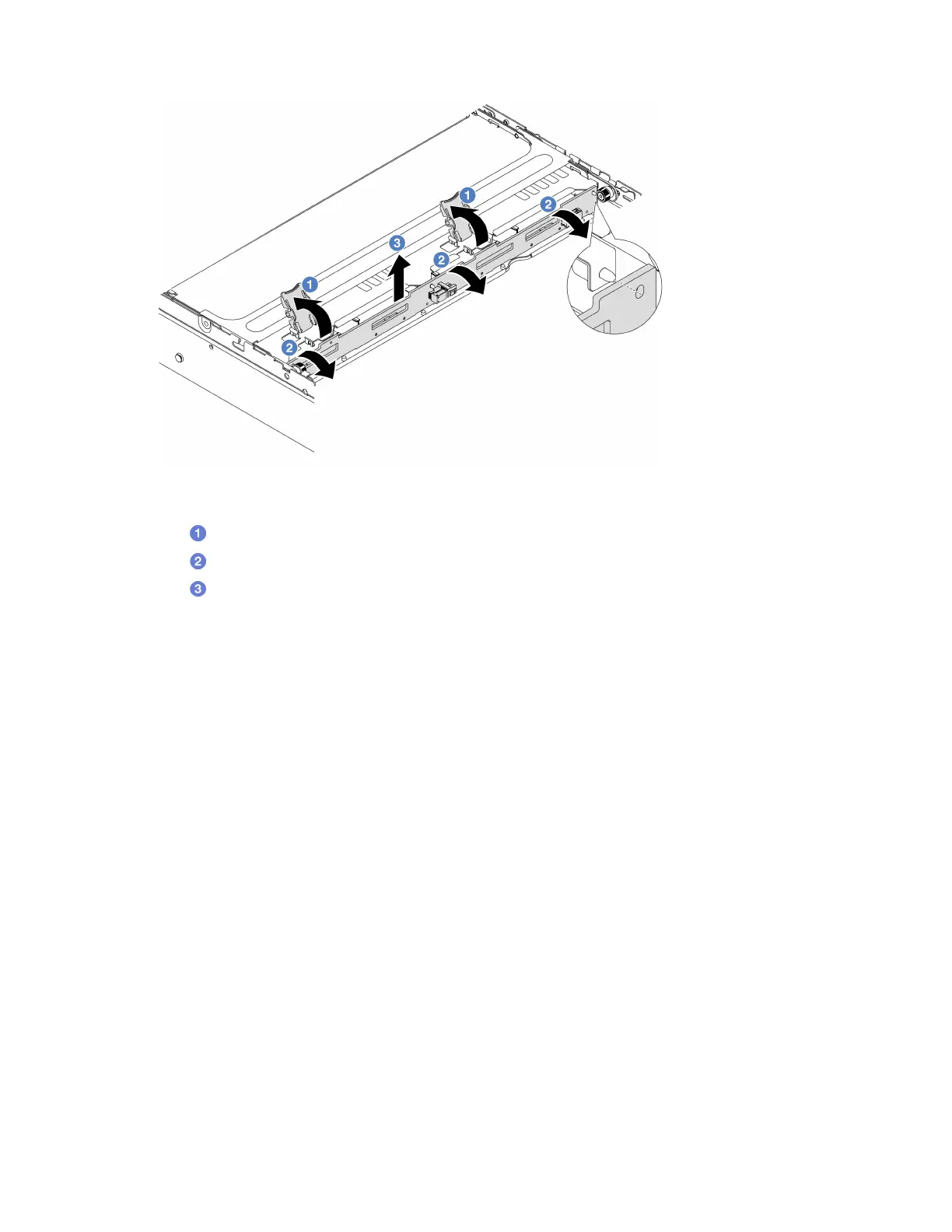

Figure 105. Removing the 3.5-inch middle drive backplane
a. Open the release latches in the direction as shown.
b.
Rotate the backplane from the top to disengage it from the pins on the drive cage.
c.
Carefully lift the backplane out of the drive cage.
After you finish
If you are instructed to return the component or optional device, follow all packaging instructions, and use
any packaging materials for shipping that are supplied to you.
Install the middle drive backplanes and drive cage
Use this information to install the middle drive backplanes and drive cage.
About this task
Attention:
• Read
“Installation Guidelines” on page 55 and “Safety inspection checklist” on page 56 to ensure that you
work safely.
• Power off the server and peripheral devices and disconnect the power cords and all external cables. See
“Power off the server” on page 73.
• Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-
sensitive components in their static-protective packages until installation, and handling these devices with
an electrostatic-discharge wrist strap or other grounding system.
• The middle drive cage is supported on some server models with thermal requirements. See
“Thermal
rules” on page 69
to ensure that the server is under permitted ambient temperature and the correct heat
sink and system fans are used. If needed, replace your heat sink or system fan first.
–
“Processor and heat sink replacement (trained technician only)” on page 176
– “System fan replacement” on page 254
146
ThinkSystem SR650 V3 User Guide
