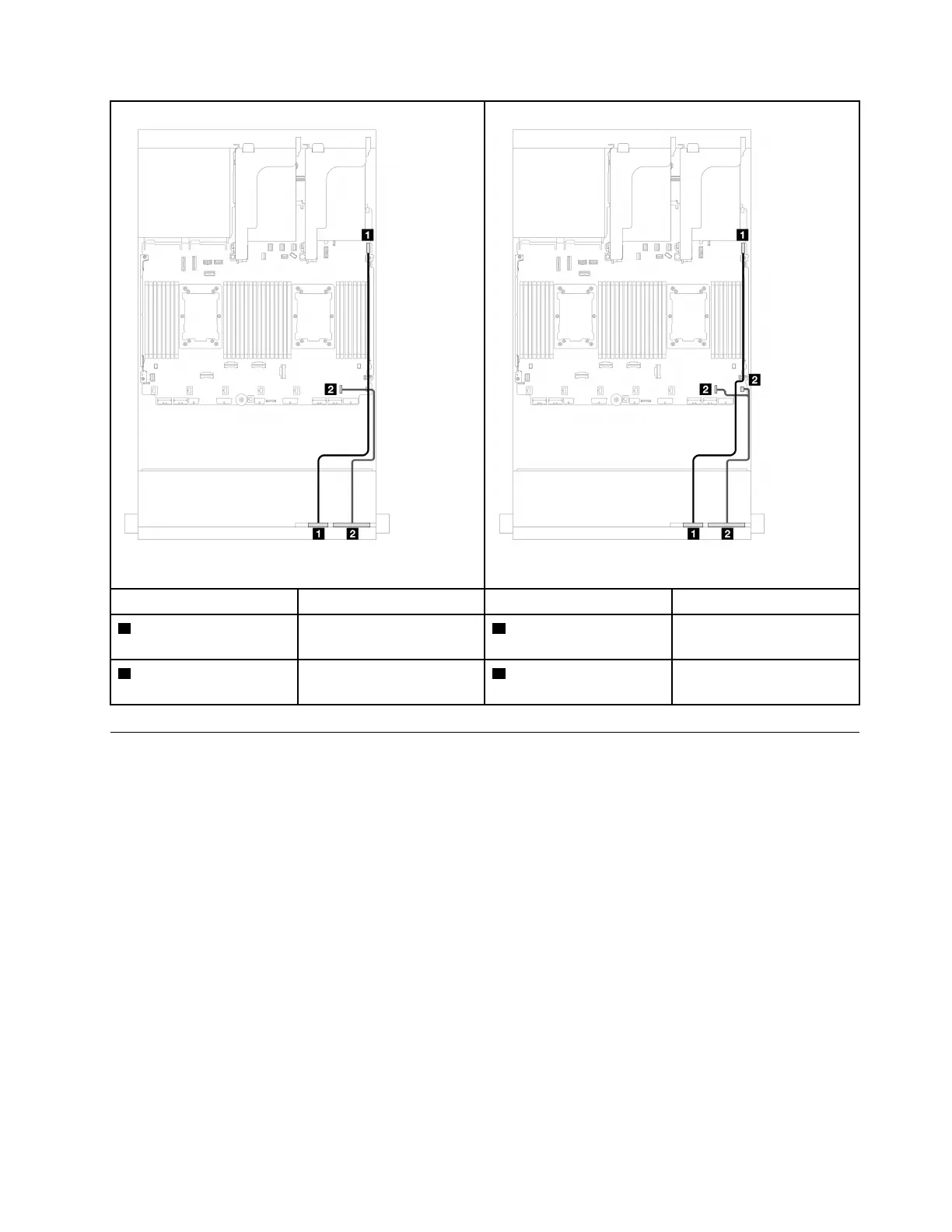

Figure 253. Front operator panel with an LCD display Figure 254. Front operator panel without an LCD display
From To From To
1 Front USB cable Front USB connector on
the system board assembly
1 Front USB cable Front USB connector on
the system board assembly
2 Front panel cable
Front I/O connector on the
system board assembly
2 Front panel cable
Front I/O connectors on the
system board assembly
GPUs
Use this section to understand the routing for GPUs.
Chapter 6. Internal cable routing 281
