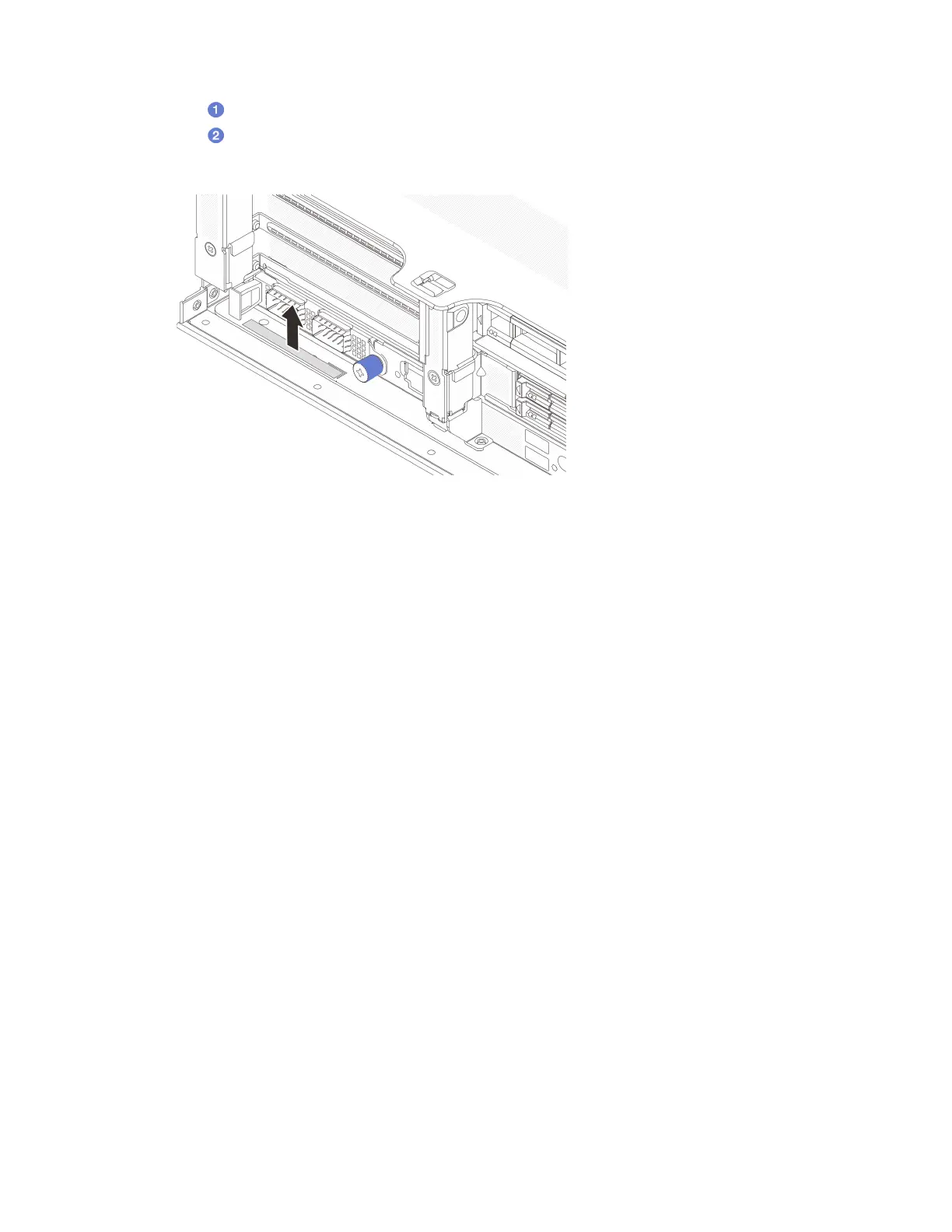

a. Loosen the thumbscrew that secures the OCP module.
b.
Pull out the OCP module.
Step 2. (Optional) Remove the OCP label.
Figure 111. Removing the OCP label
After you finish
1. Install a new OCP module or a card filler.
2. If you are instructed to return the component or optional device, follow all packaging instructions, and
use any packaging materials for shipping that are supplied to you.
Install the OCP module
Use this information to install the OCP module.
About this task
CAUTION:
Power off the server and disconnect all power cords from their power sources before performing this
procedure.
Attention:
• Read
“Installation Guidelines” on page 55 and “Safety inspection checklist” on page 56 to ensure that you
work safely.
• Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-
sensitive components in their static-protective packages until installation, and handling these devices with
an electrostatic-discharge wrist strap or other grounding system.
Note: If there is an OCP module installed, when the system is powered off but still plugged in to AC power,
fans 1 and 2 may continue to spin at a much lower speed. This is the system design to provide proper
cooling for the OCP module.
Watch the procedure
A video of this procedure is available at YouTube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-
BmyijyY0-lNvapM4fTV5Gf
.
Chapter 5. Hardware replacement procedures 151
