Lenovo ThinkSystem SR650 V3 7D75 - 12 X 3.5-Inch SAS;SATA Backplane

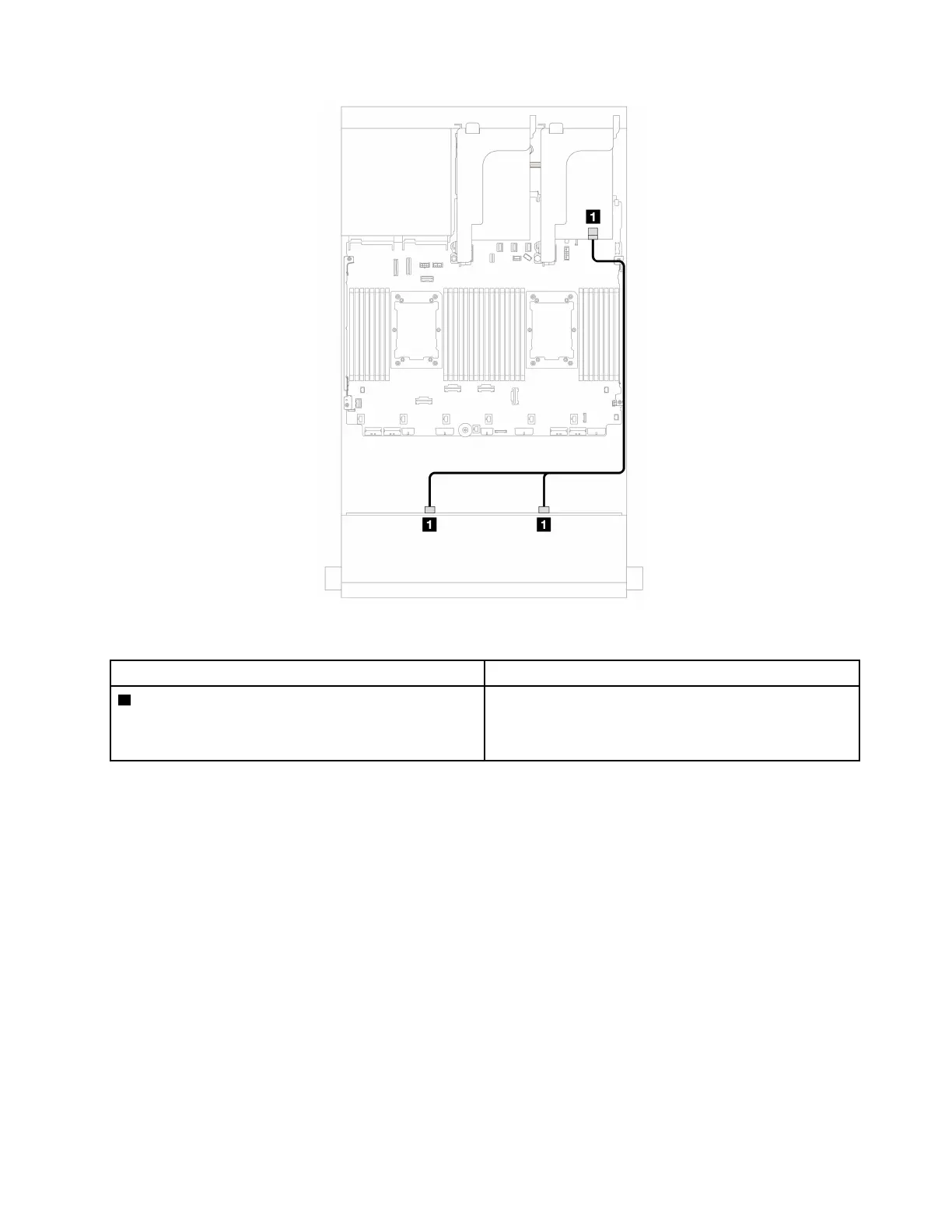

Figure 429. Cable routing to one 8i RAID/HBA adapter
From To
1 Backplane 1: SAS 0, SAS 1
8i adapter
• Gen 4: C0
• Gen 3: C0C1
12 x 3.5-inch SAS/SATA backplane
This section provides cable routing information for the server model with the 12 x 3.5-inch SAS/SATA front
drive backplane.
•
“Front backplane: 12 x 3.5" SAS/SATA” on page 419
• “Front + rear backplanes: 12 x 3.5" SAS/SATA + 4 x 2.5"/2 x 3.5"/4 x 3.5" SAS/SATA” on page 421
• “Front + middle backplanes: 12 x 3.5" SAS/SATA + 4 x 3.5"/4 x 2.5" SAS/SATA/8 x 2.5" NVMe” on page
425
• “Front + middle + rear backplanes: 12 x 3.5" SAS/SATA + 4 x 3.5" SAS/SATA + 4 x 3.5"SAS/SATA” on
page 431
Front backplane: 12 x 3.5" SAS/SATA
This topic provides cable routing information for the server model with the 12 x 3.5-inch SAS/SATA front
drive backplane.
•
“Onboard connectors” on page 420
Chapter 6. Internal cable routing 419
